CC469 3 Row V8 Swap

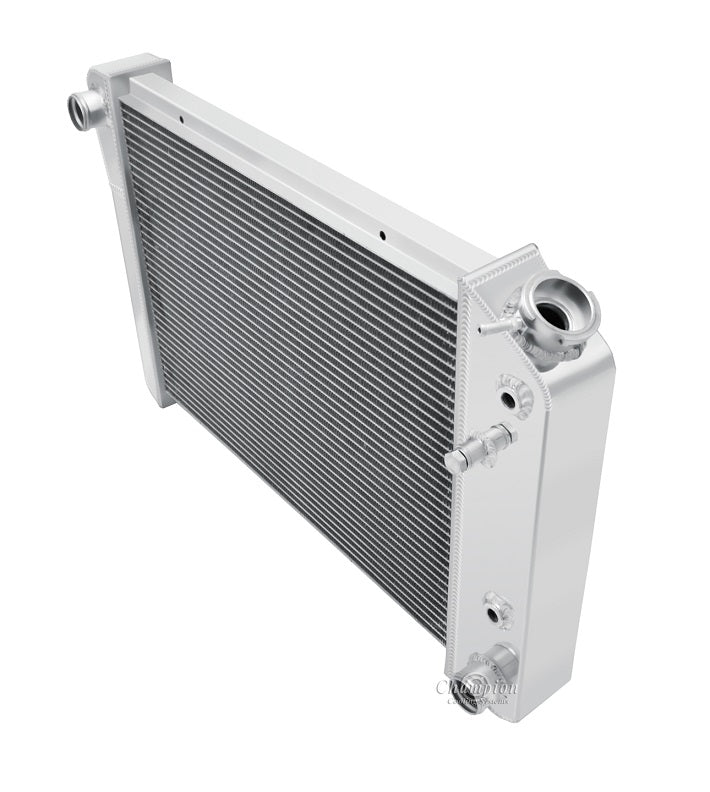

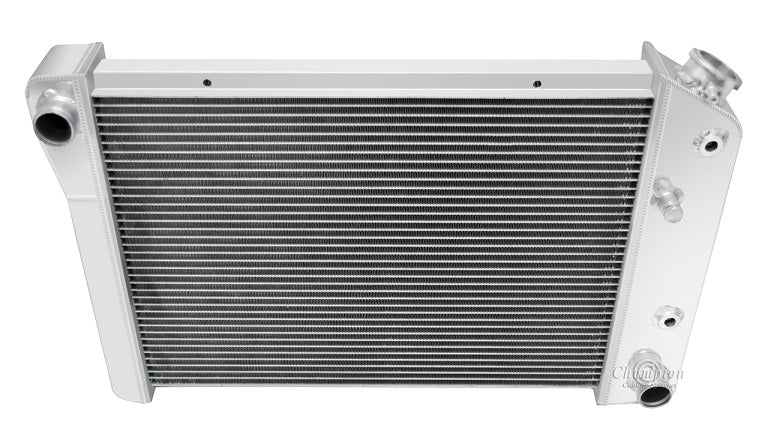

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp
Same size as 75-77 with different outlets

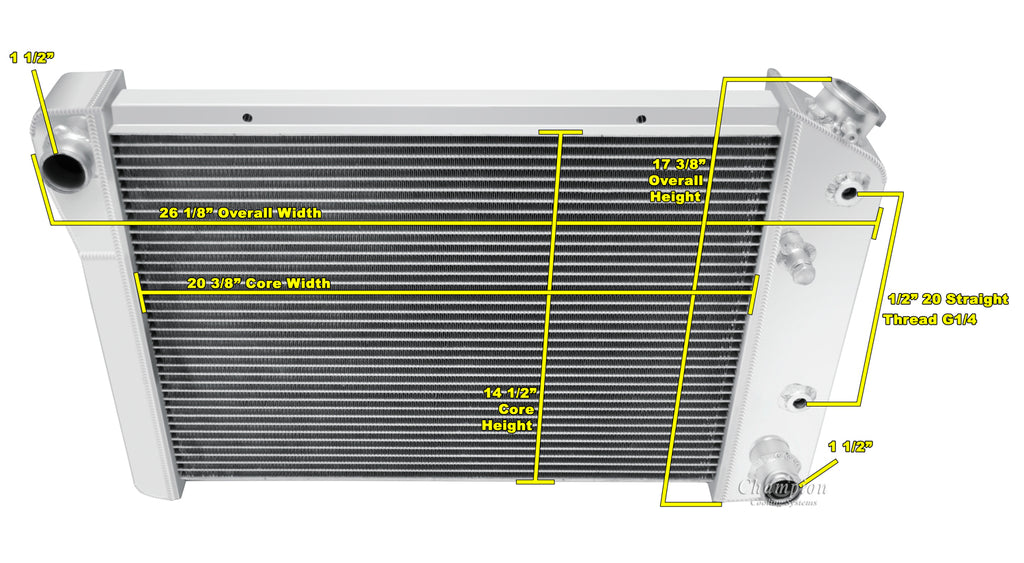

Radiator Dimensions:
Total: 17.375" tall x 26.13" wide
Core: 14.5" tall x 20.375" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)

When using electric fans:
One 14" Electric fan recommended for this core size (sold separately)
