Description

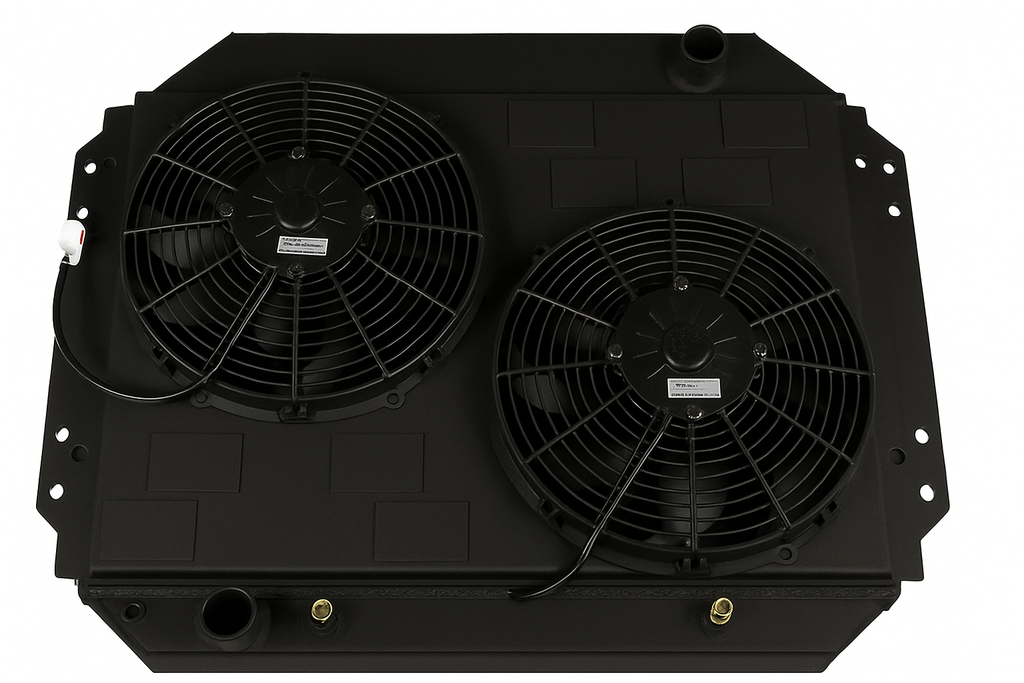

Champion All Aluminum Radiator (Black) PLUS
Aluminum Shroud with eight (8) rubber air flow flaps
and (2) SPAL-1522 Medium Profile Fans
3-Row Core | Cools 700hp
Note: Uses Engine Side Mounting Brackets
Grill Side Brackets available with part # CC433B
Drilling holes to attach shroud are needed
Radiator Dimensions:
Total: 25" (26.375" with cap) x 29.125" (with brackets)
Core: 19.25" tall x 26.375" wide x 2.5" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.87" thick
Tubes: 0.75" thick
Total Thickness: 6.75" (5.75" between fan motors)
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
