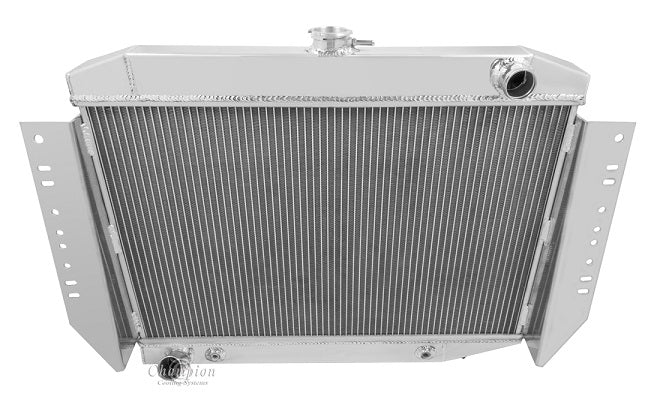

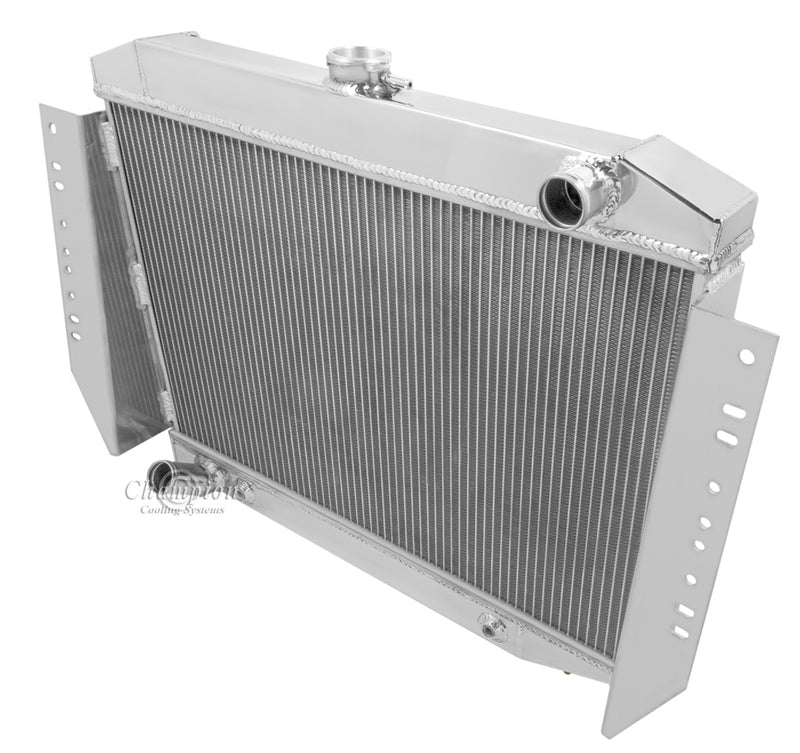

CC441 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

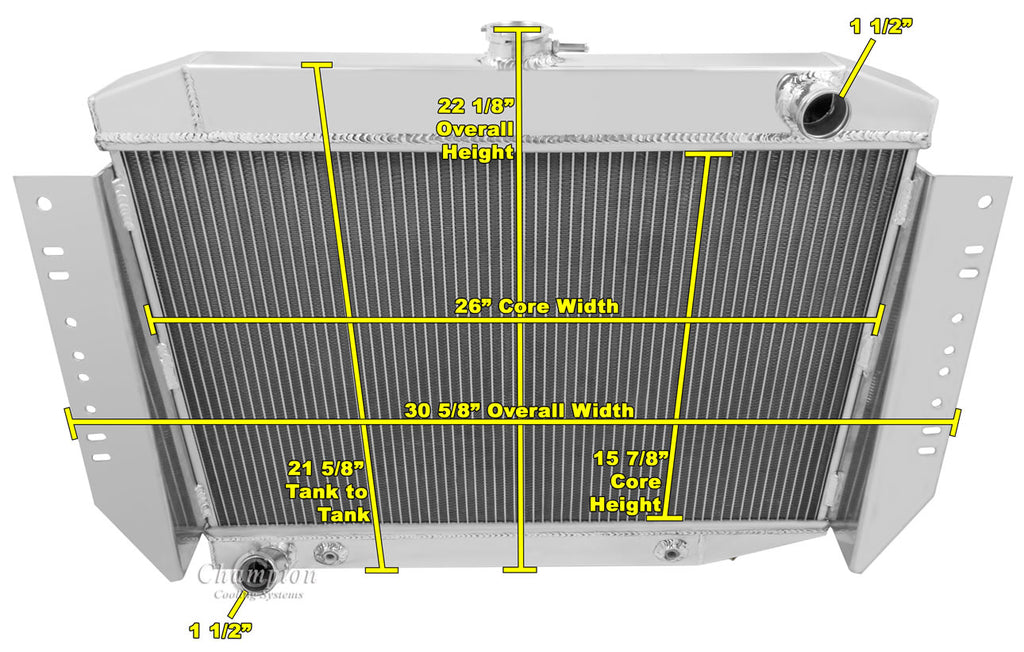

Radiator Dimensions:
Total: 30.63" wide (with brackets) x 22.13" tall
Core: 26" wide x 15.88" tall x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2"-20 Straight thread inverted flare)

When using electric fans:
(1) 16" fan or (2) 11" fans are recommended for this core size (sold separetely)
