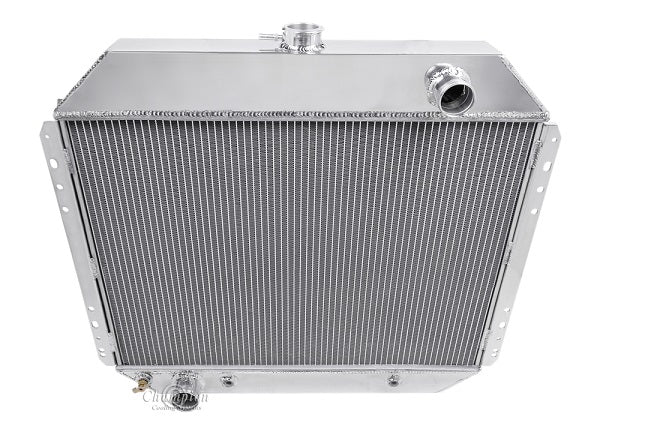

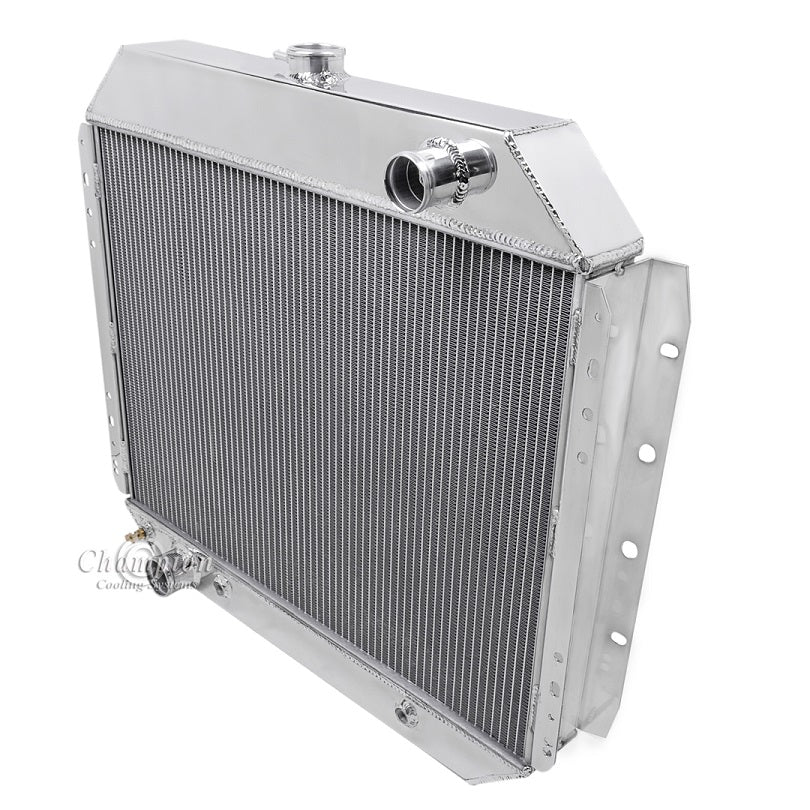

CC433B 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444

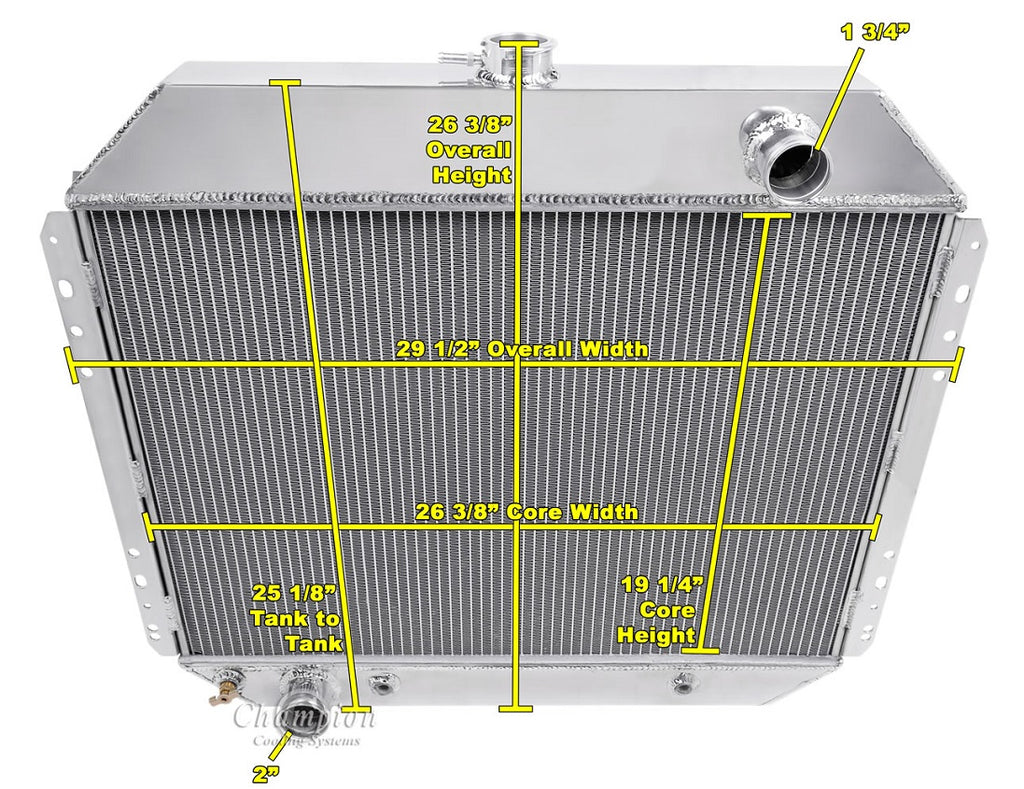

Radiator Dimensions:
Total: 25.13" tall (26.38" with cap) x 29.13" wide (with brackets)
Core: 19.25" tall x 26.375" wide x 2.5" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.87" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separetely)
