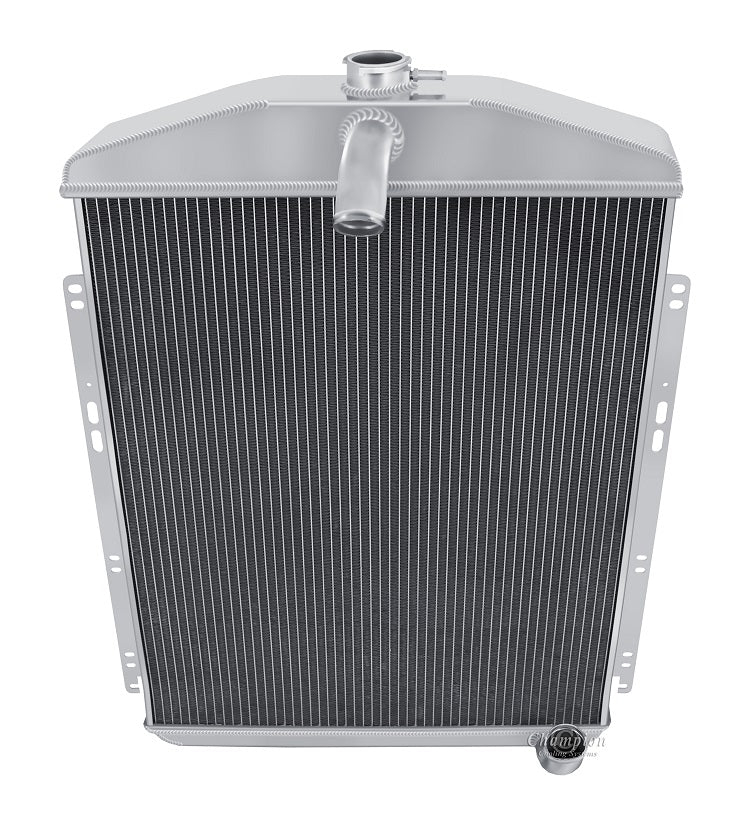

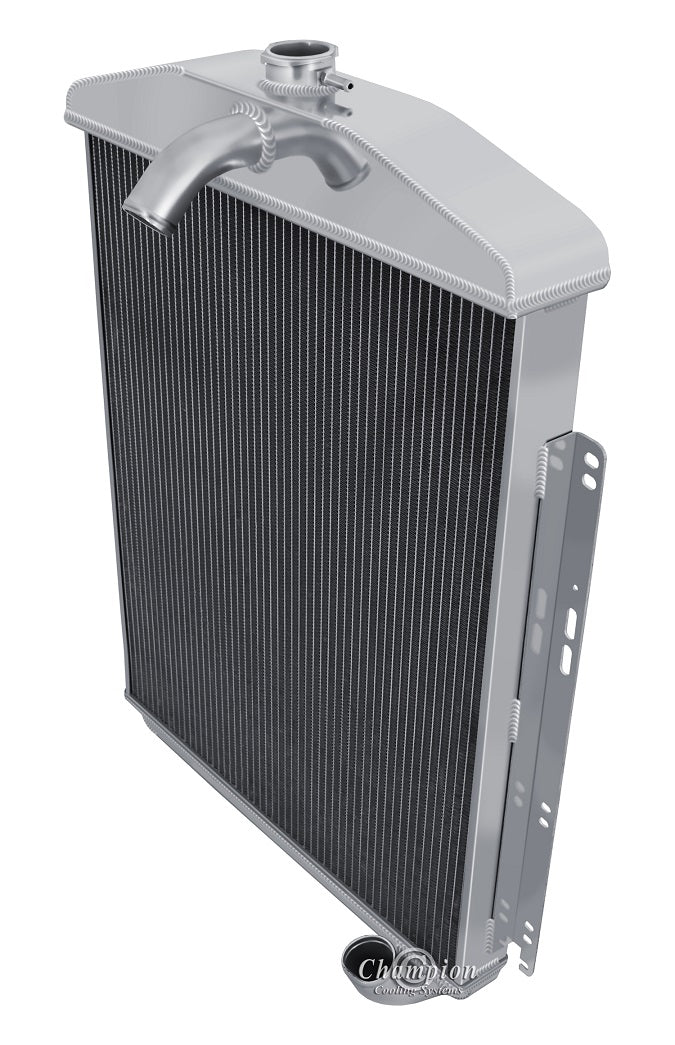

CC42OL 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

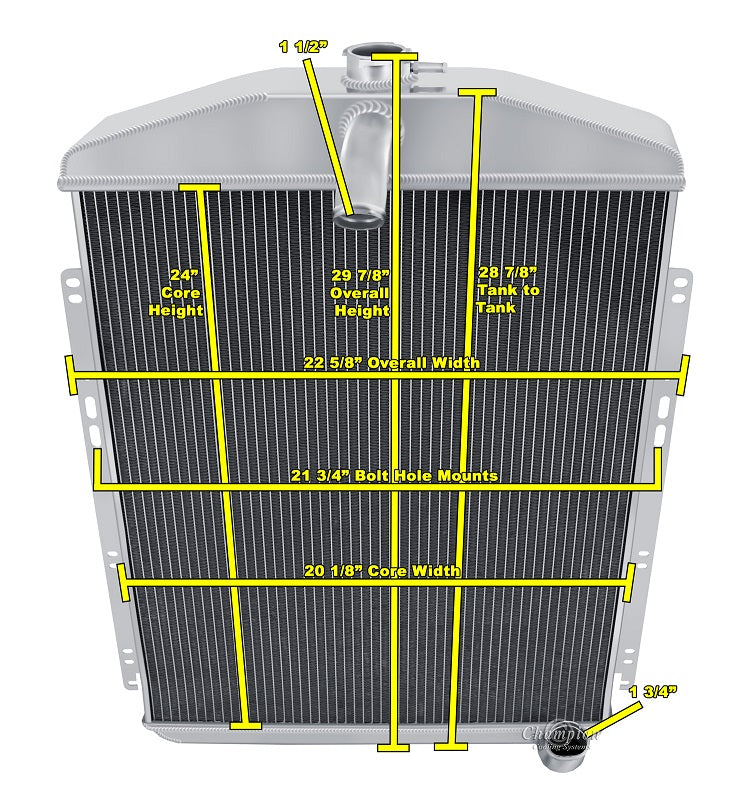

Radiator Dimensions:
Total: 29.87" tall (with cap) x 22.63" wide (with brackets)
Core: 24" tall x 20.13" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: top 3.5" thick, bottom 1.5" Thick
Tubes: 0.63" thick

Bracket Mounted

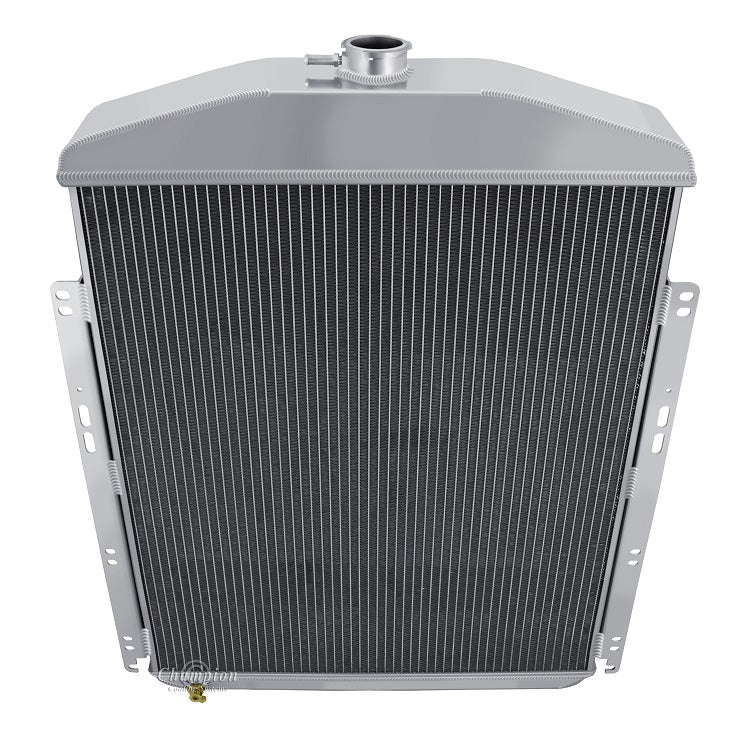

Brackets are on engine side of core

13lb. Radiator Cap included
Transmission Cooler NOT included

When using electric fans:
One 16" or two 12" Electric fan(s) recommended for this core size (sold separately)
