Description

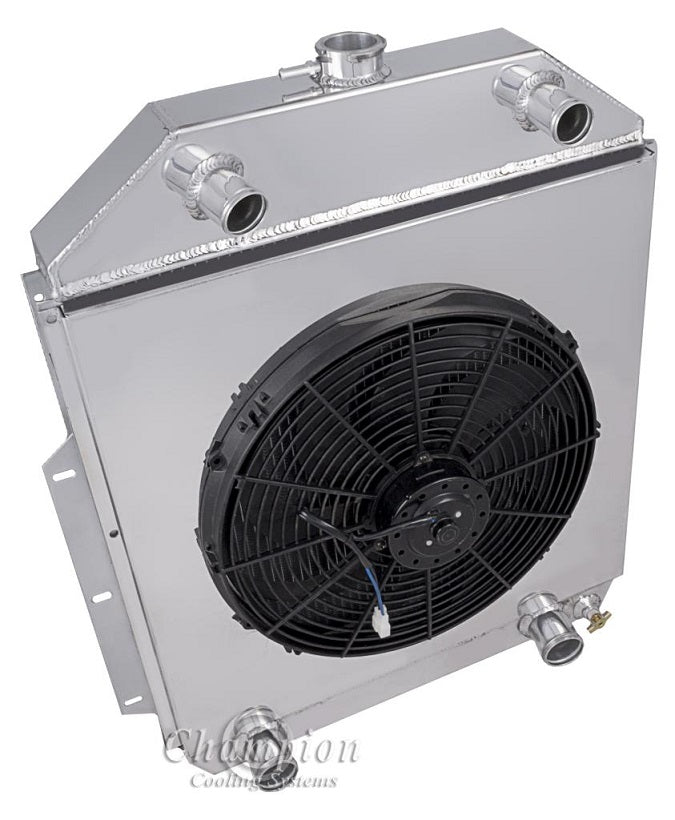

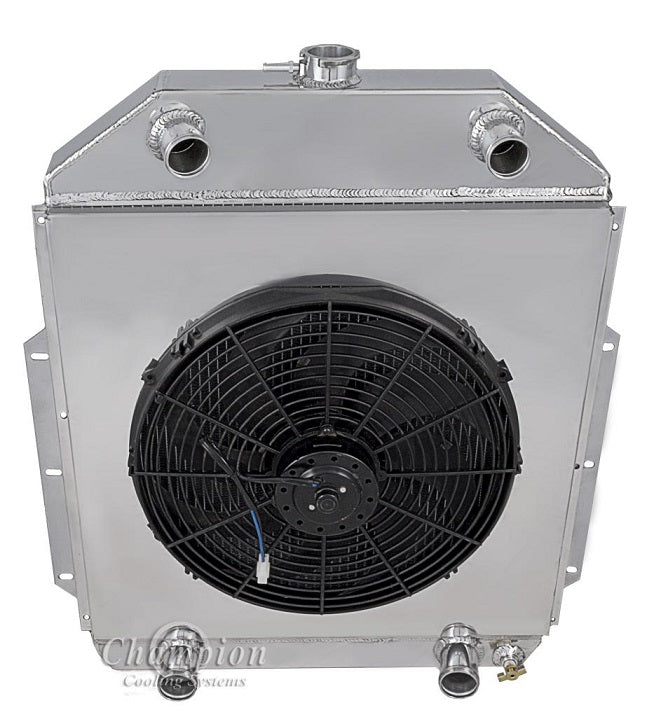

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & Pro-Series Fan
Verify clearance for electric fan
Total thickness: 7.25" to fan motor
3-Row Core | Cools up to 650hp

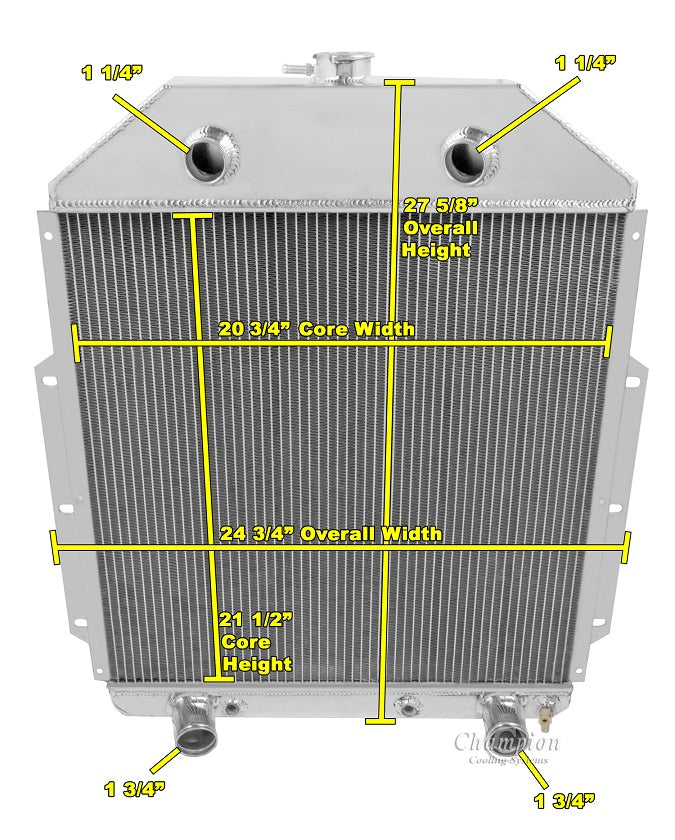

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2" thick
Inlets: (2) 1.25" Both sides
Outlets: (2) 1.75" Both sides
Tanks: 2.5" thick
Tubes: 0.58" thick
E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick
13 lb. Radiator Cap Included
Transmission Cooler Not Included
Plus Ledfoot Racing Aluminum Shroud & Pro-Series Fan
Verify clearance for electric fan
Total thickness: 7.25" to fan motor
3-Row Core | Cools up to 650hp
Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2" thick
Inlets: (2) 1.25" Both sides
Outlets: (2) 1.75" Both sides
Tanks: 2.5" thick
Tubes: 0.58" thick
E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick
13 lb. Radiator Cap Included
Transmission Cooler Not Included
