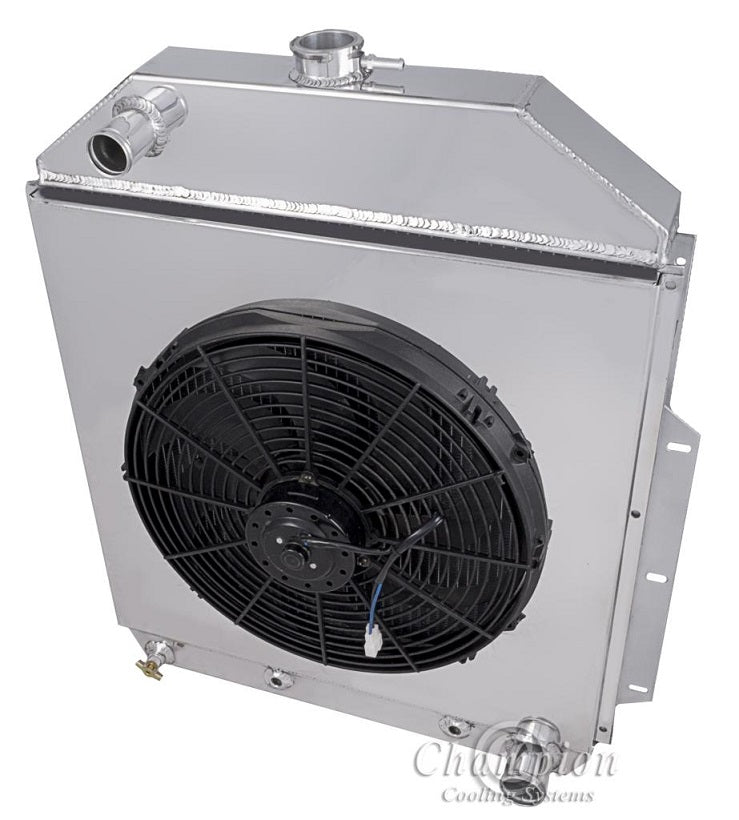

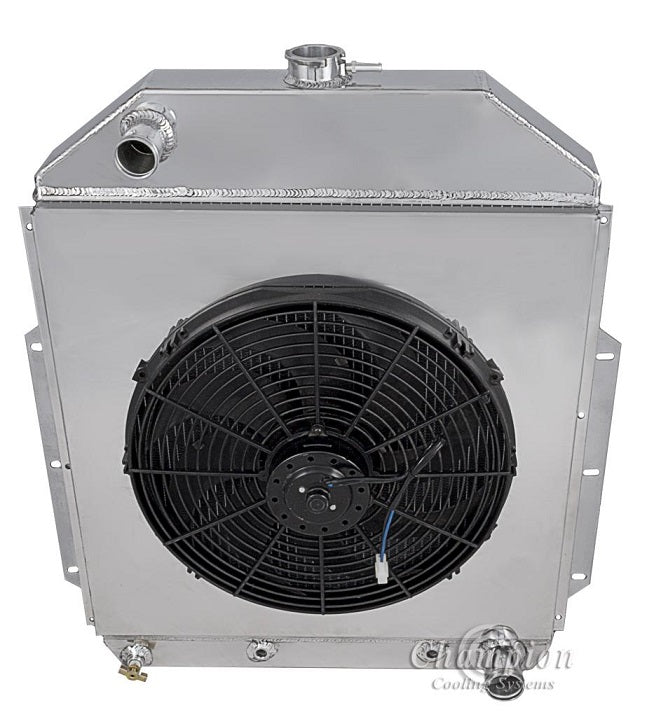

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & Pro-Series Fan
Verify clearance for electric fan
Total thickness: 7.25" to fan motor
3-Row Core | Cools up to 650hp | Chevy Conversion

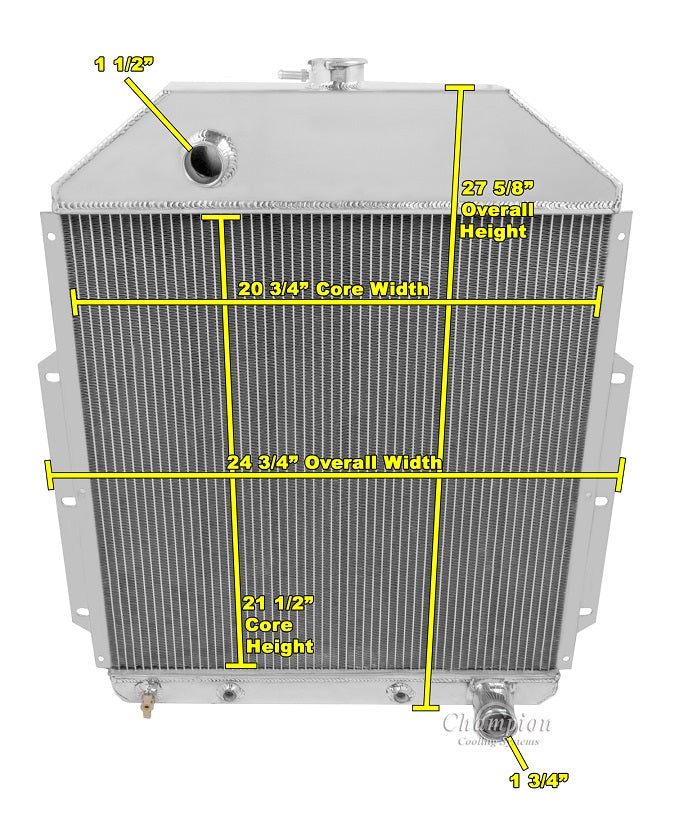

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick
13lb. Radiator Cap included
Transmission Cooler Included: 1/2" -20 Straight Thread
Plus Ledfoot Racing Aluminum Shroud & Pro-Series Fan
Verify clearance for electric fan
Total thickness: 7.25" to fan motor
3-Row Core | Cools up to 650hp | Chevy Conversion
Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick
13lb. Radiator Cap included
Transmission Cooler Included: 1/2" -20 Straight Thread
