CC41FD 3 Row Ford Motors

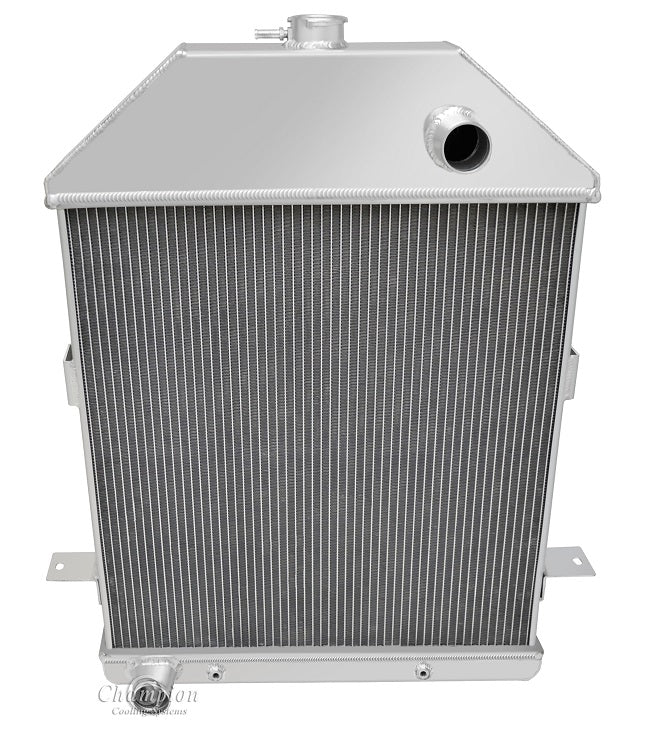

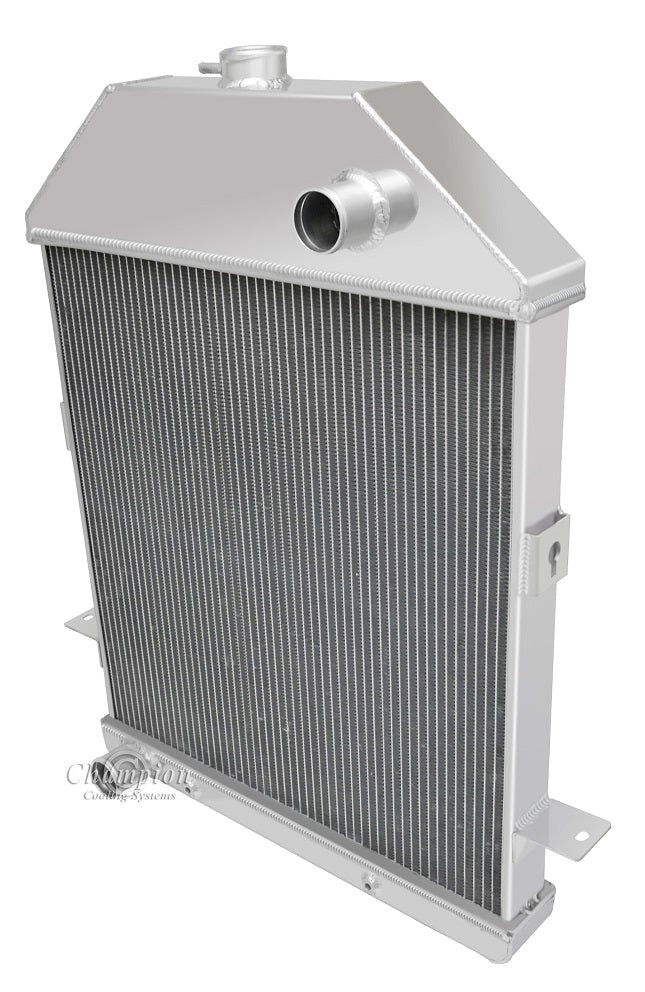

All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp

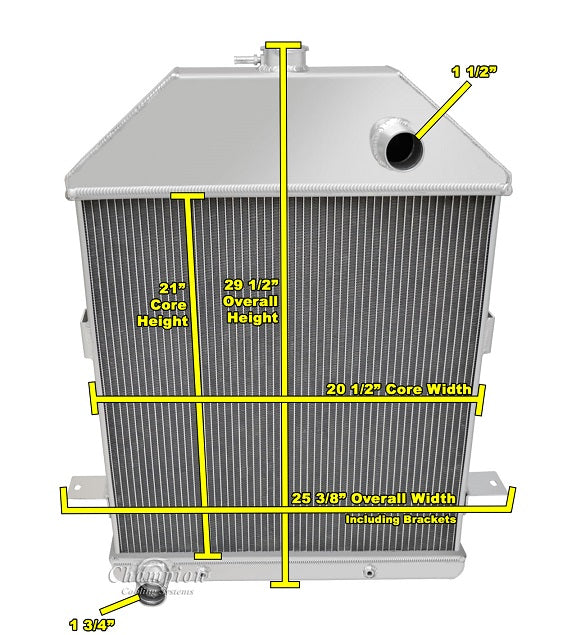

Radiator Dimensions:
Total: 29.5" tall x 25.38" wide (lower bracket)
Core: 21" tall x 20.5" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8" -27 NPT)

When using electric fans:
One 16" fan recommended for this core size
