CC41CH 3 Row Chevy Motors

All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp
For Chevy Engines

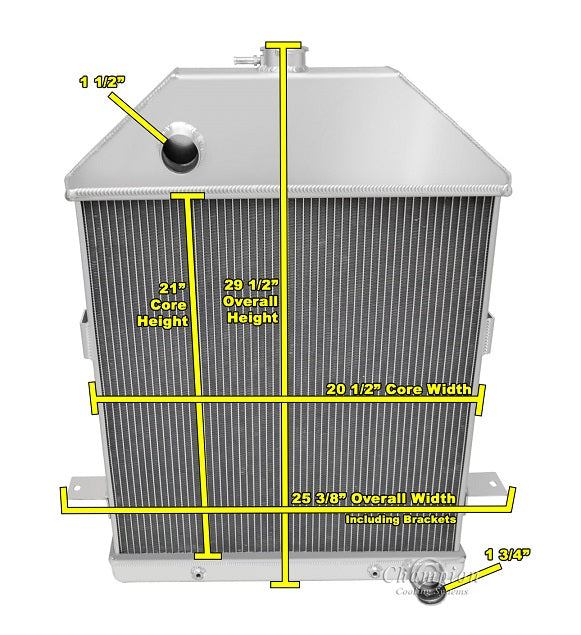

Radiator Dimensions:
Total: 29.5" tall x 25.38" wide (lower bracket)
Core: 21" tall x 20.5" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included ( 1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" fan recommended for this core size
