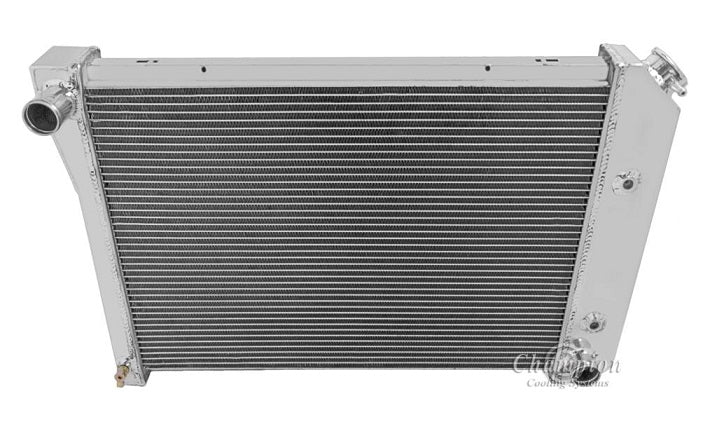

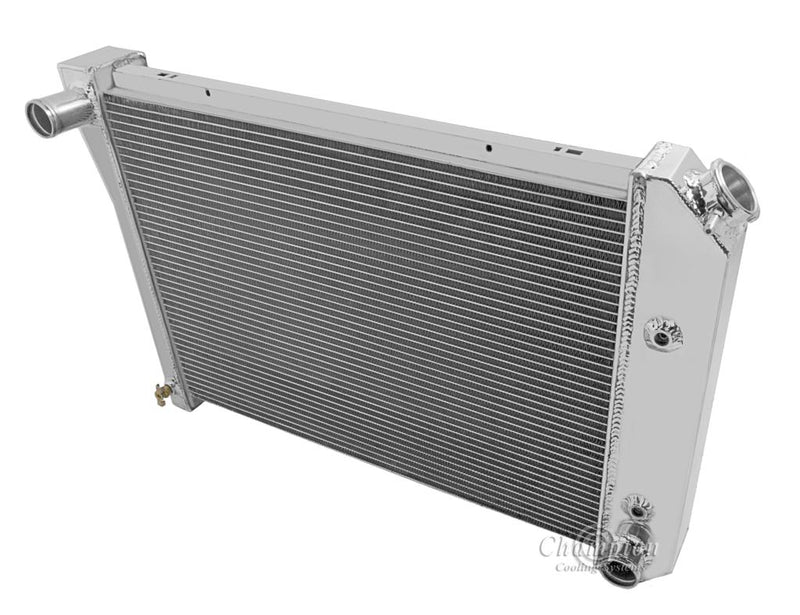

CC412 3 Row 23" Core

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

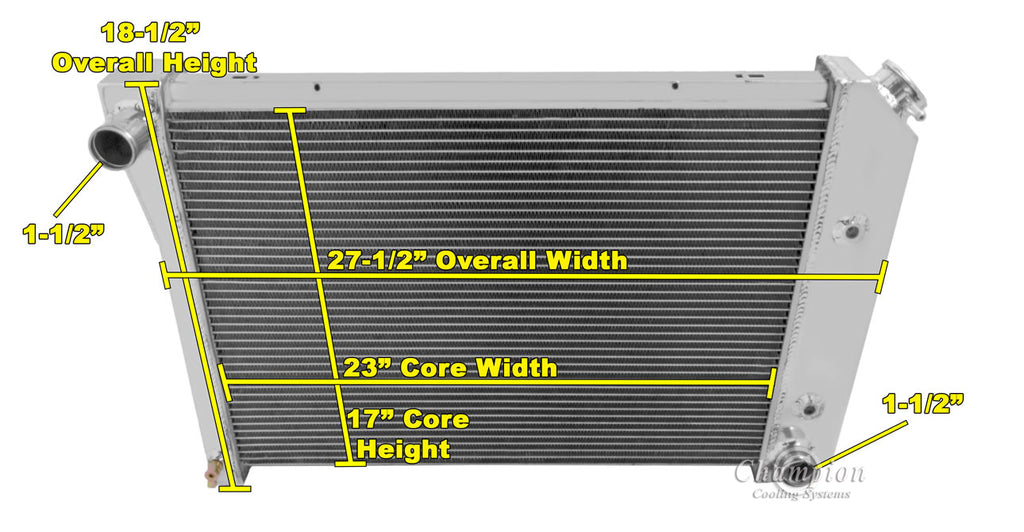

Radiator Dimensions:
Total: 18.75" tall (with cap) x 29" wide x 2.5" thick
Core: 17" tall x 23" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2"-20 STRAIGHT THREAD)
