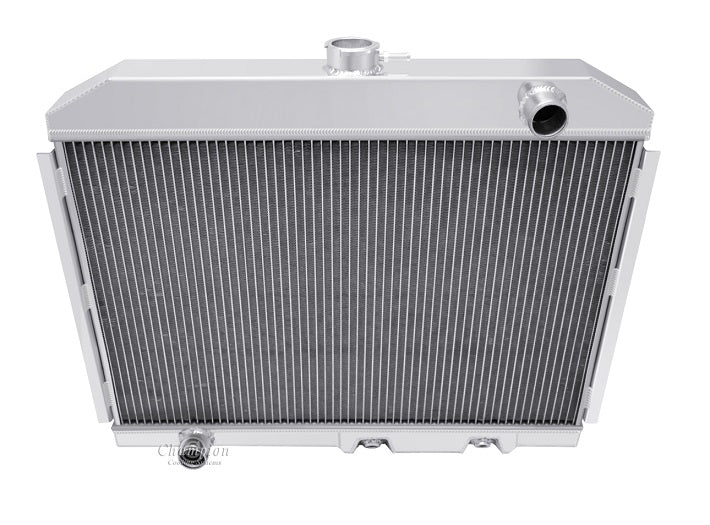

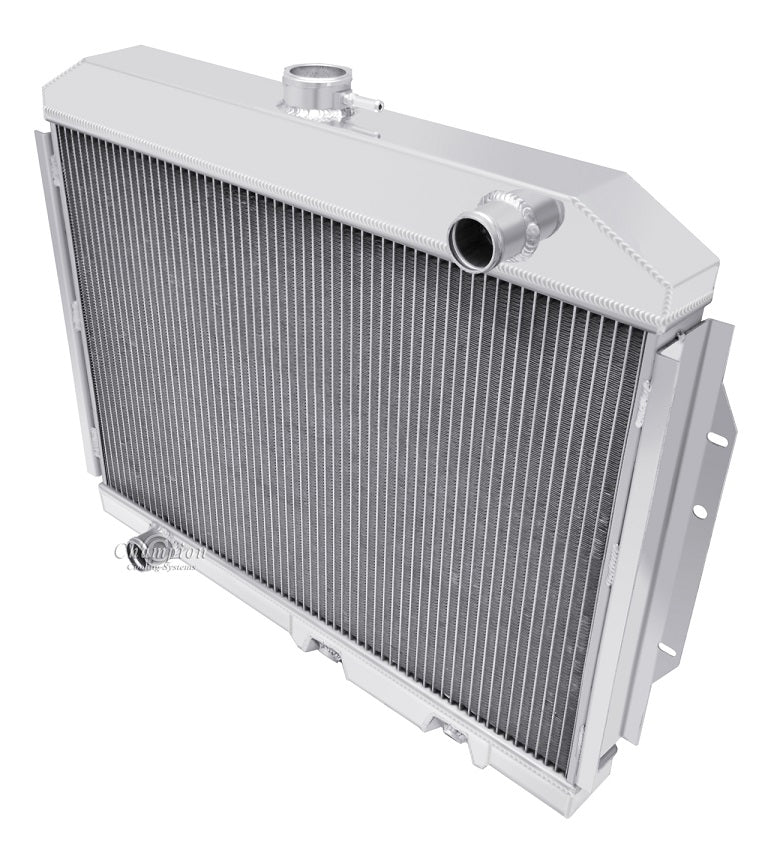

CC403 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
NOTE: The bracket is on the grill face of the radiator,
please confirm, the CC407 has engine side brackets.

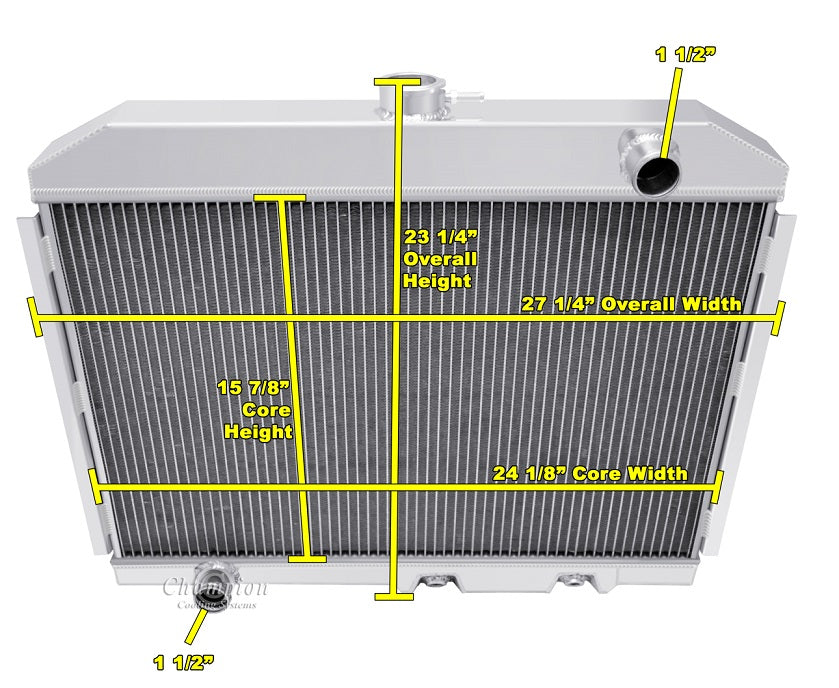

Radiator Dimensions:
Total: 22" tall x 27.13" wide
Core: 15.88" tall x 24.13" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud available (sold separately; minor mods may be necessary)

Recommended Fans (sold separately):
One 16" or Two 12" Electric Fans
