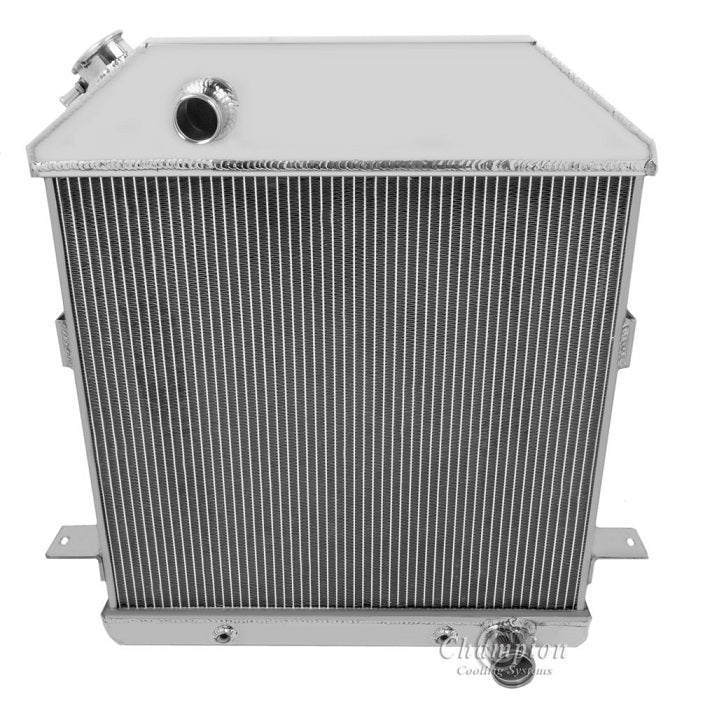

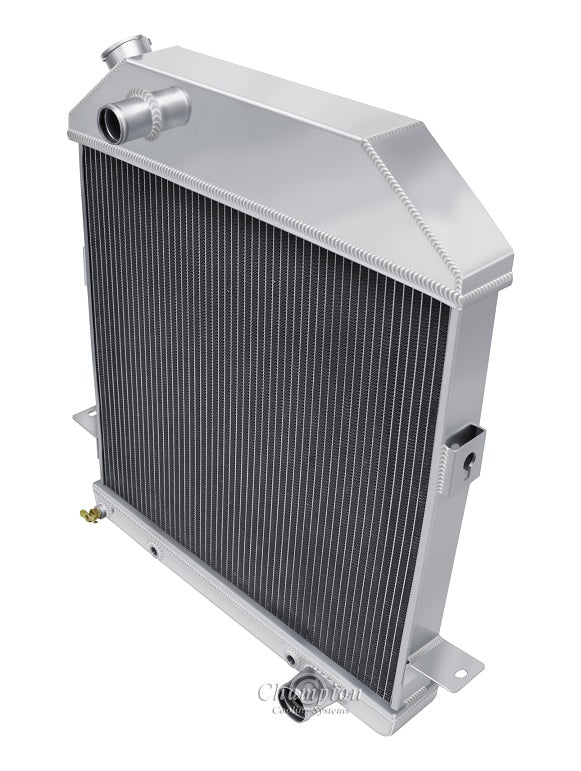

CC4001CH 3 Row Chevy Motors

All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp
(Chevy Configuration)
Please confirm overall dimensions

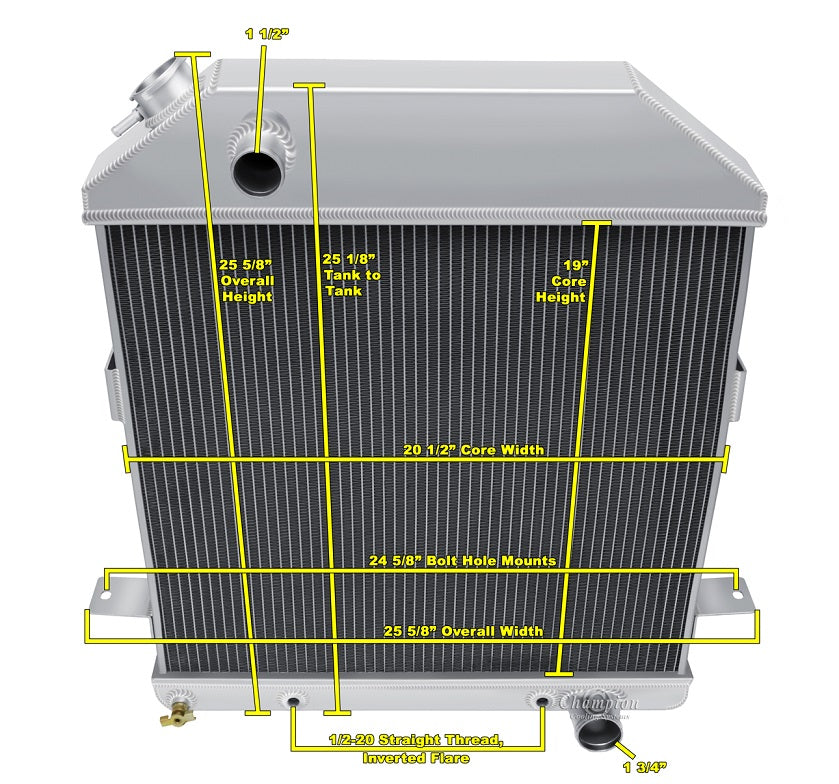

Radiator Dimensions:
Total: 25.13" tall x 25.5" wide
Core: 19" tall x 20.88" wide x 2" thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.88" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2"-20 STRAIGHT THREAD)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
