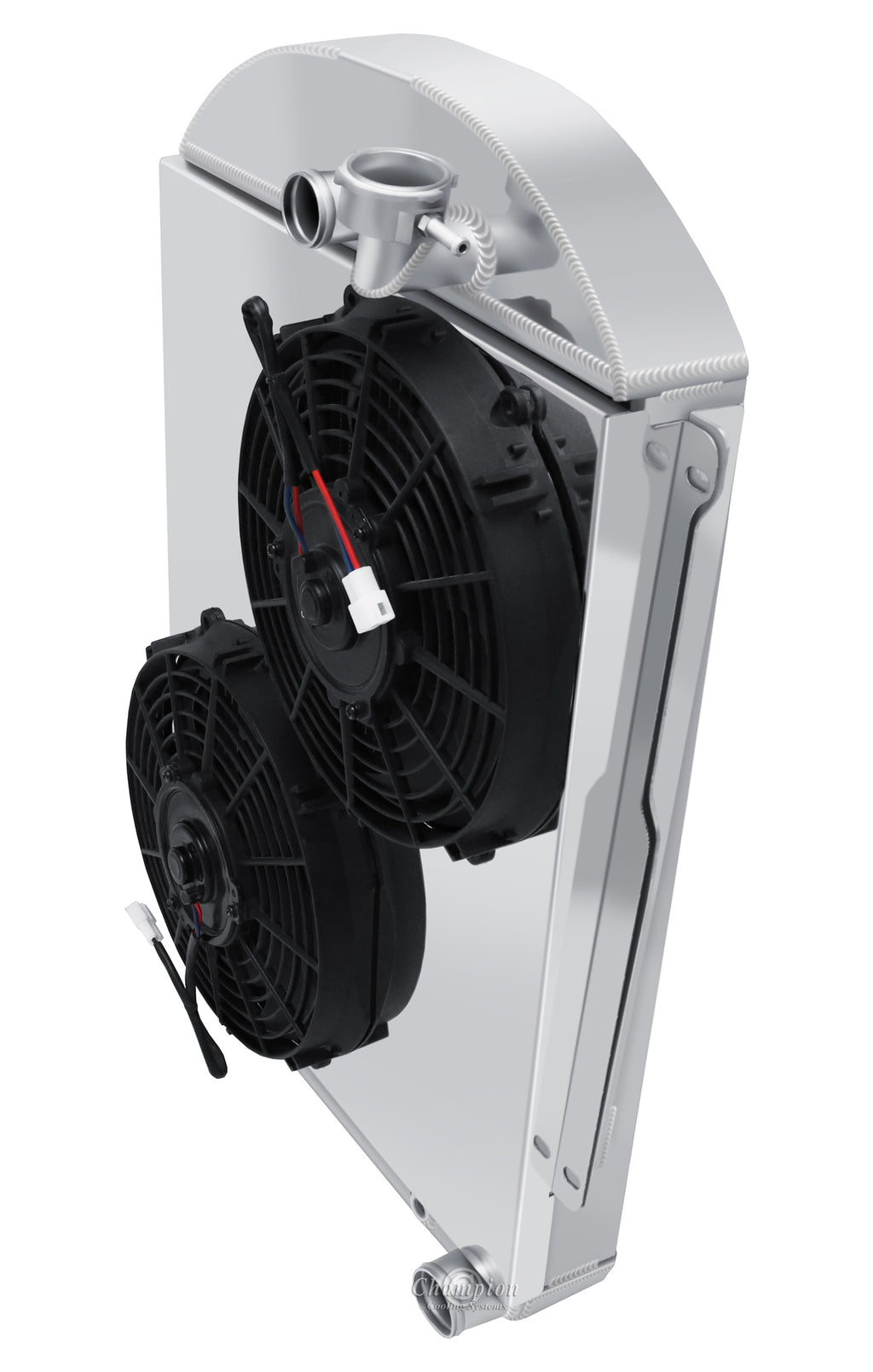

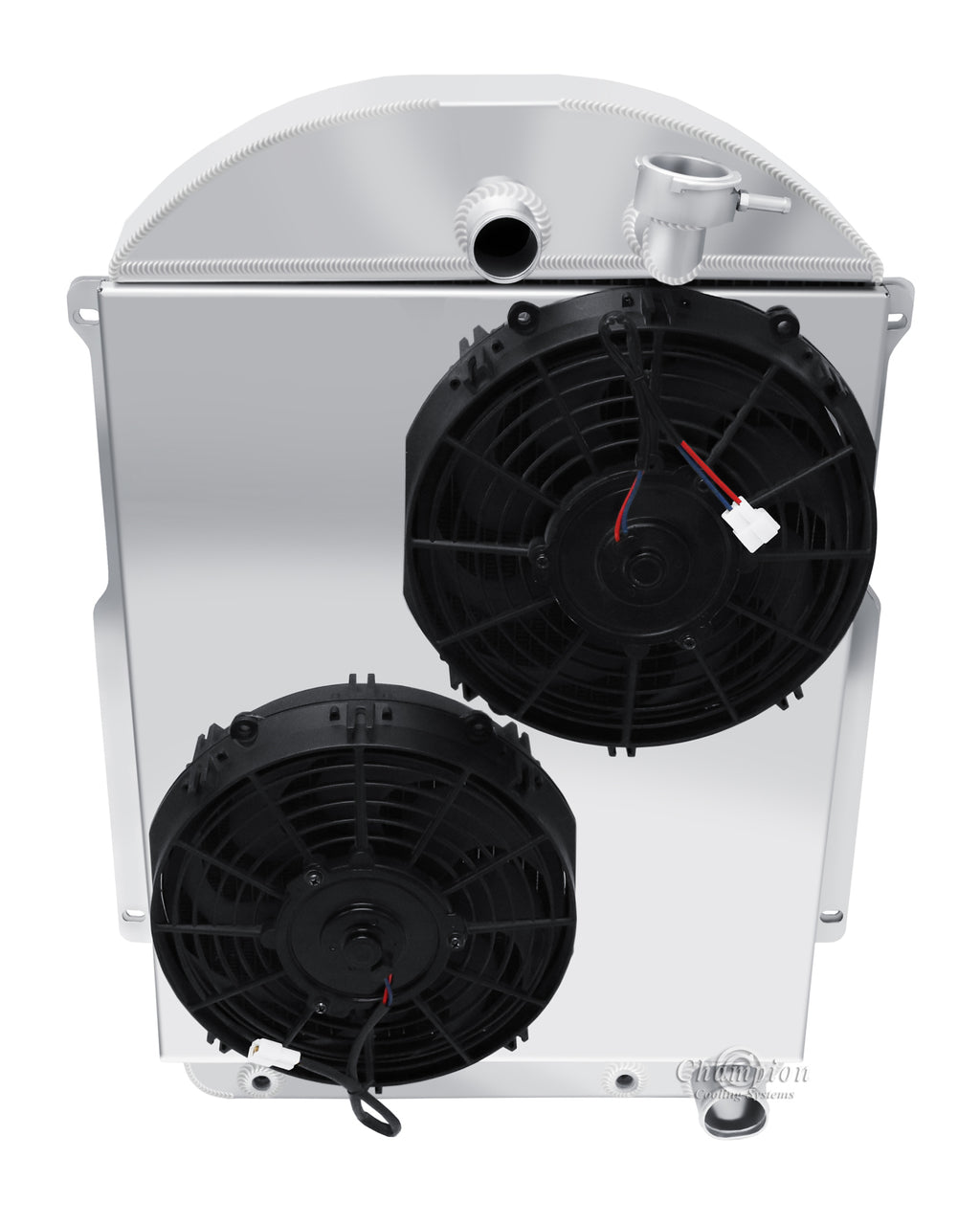

CC39CH-39FS10C 3 Row Combo V8's

All Aluminum Champion Radiator PLUS
Shroud and (2) SPAL-0435 Fans
3-Row Core | Cools up to 550hp
For V8 Engines

Radiator Dimensions:
Total: 28" tall x 19.25" wide
Core: 22" tall x 16.83" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: Top 3" thick
Bottom 2.5" thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" 20 straight thread)
