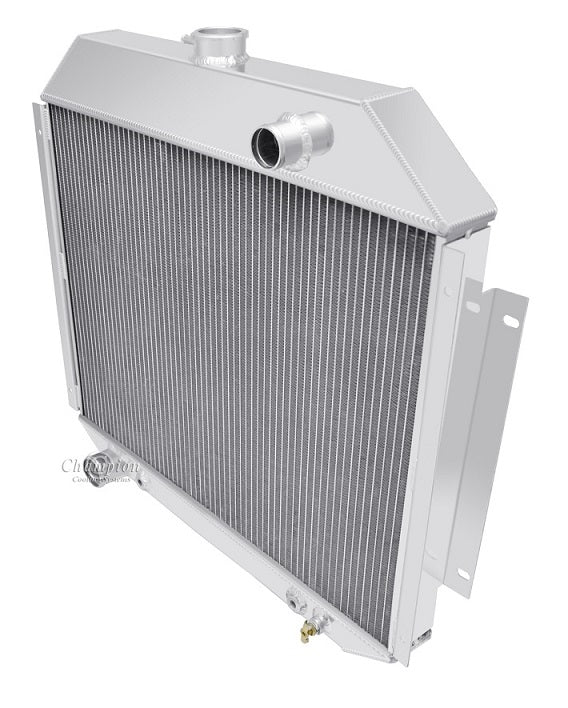

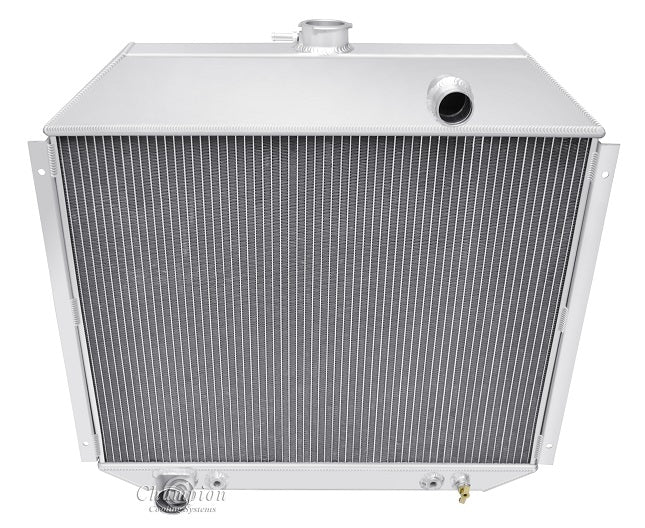

CC395 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp
Note: This is the 18" tall core confirm core size before ordering

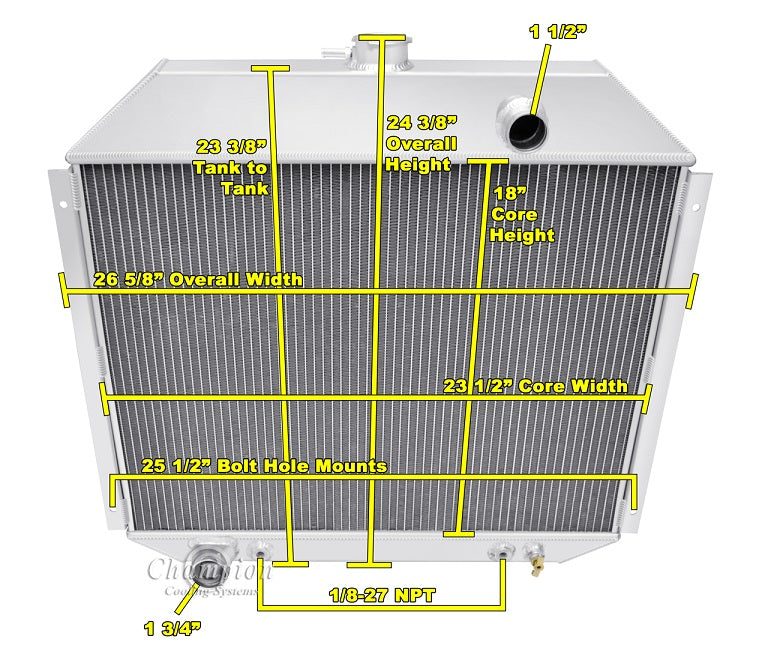

Radiator Dimensions:
Total: 24.5" tall (25.5" with cap) x 26.63" wide (with brackets)
Core: 18" tall x 23.5" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.38" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
Two 11" SPAL Electric fans recommended for this core size (sold separetely)
