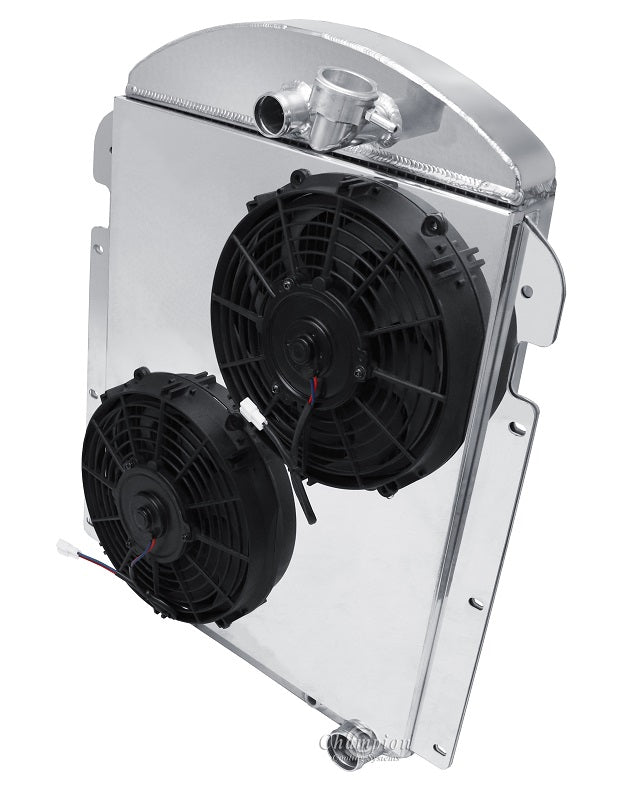

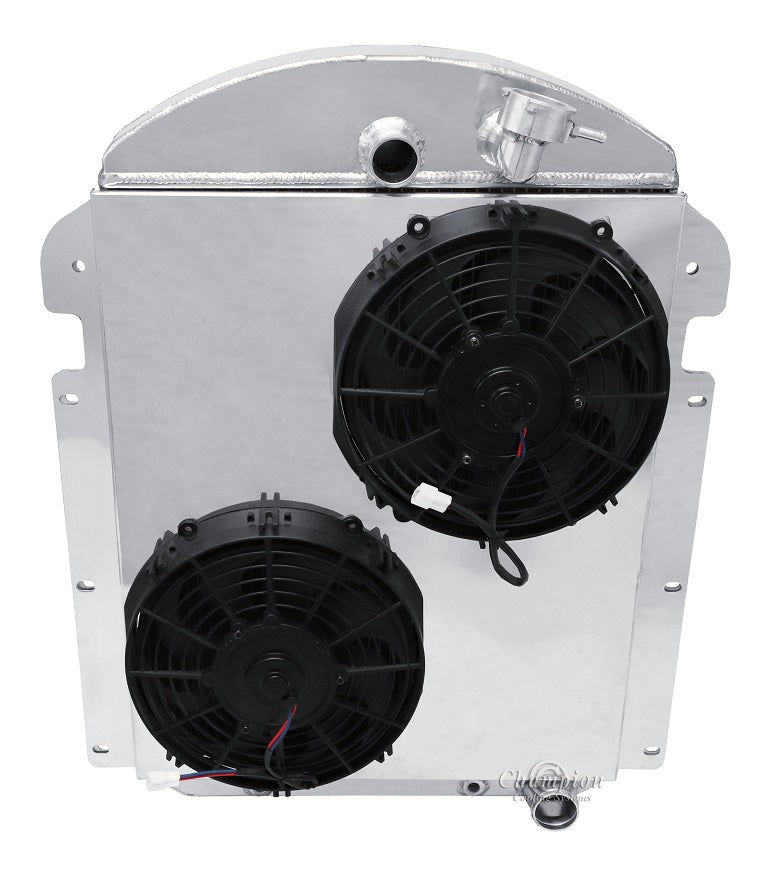

CC3940CH-3940FS10C 3 Row Combo V8

All Aluminum Champion Radiator PLUS
Aluminum Shroud & (2) SPAL-0435 10" Fans
3-Row Core | Cools up to 500hp
This set up is for V8

Radiator Dimensions:
Total: 28.13" tall x 22.5" wide
Core: 22.5" tall x 18" wide x 2" thick
Inlet: 1.5" Center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

13lb. Radiator Cap Included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
