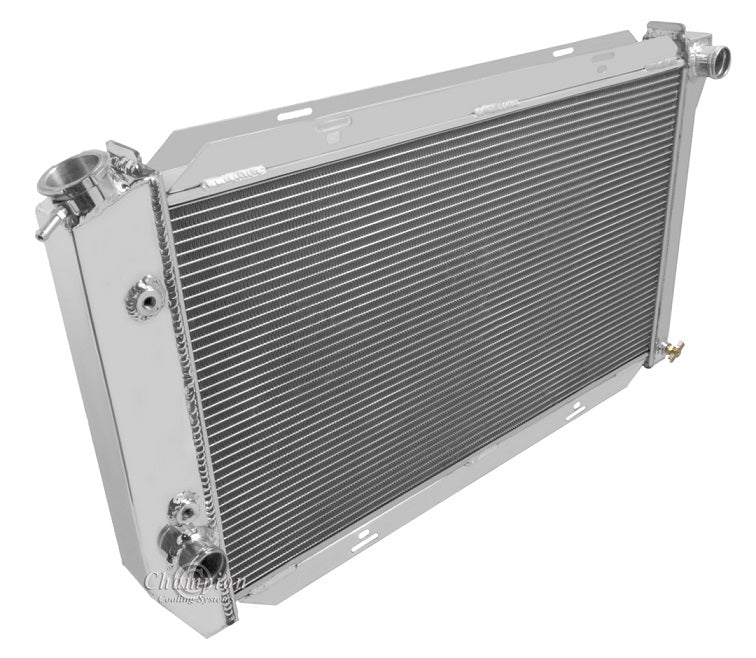

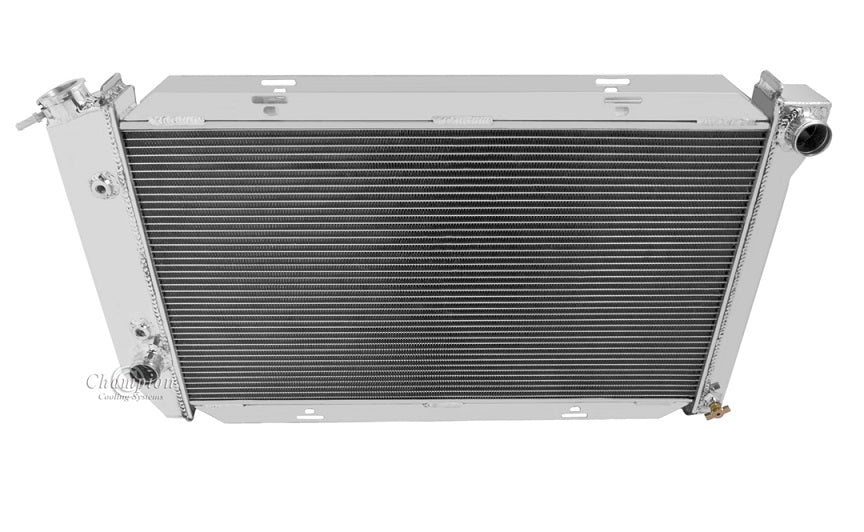

CC390 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp

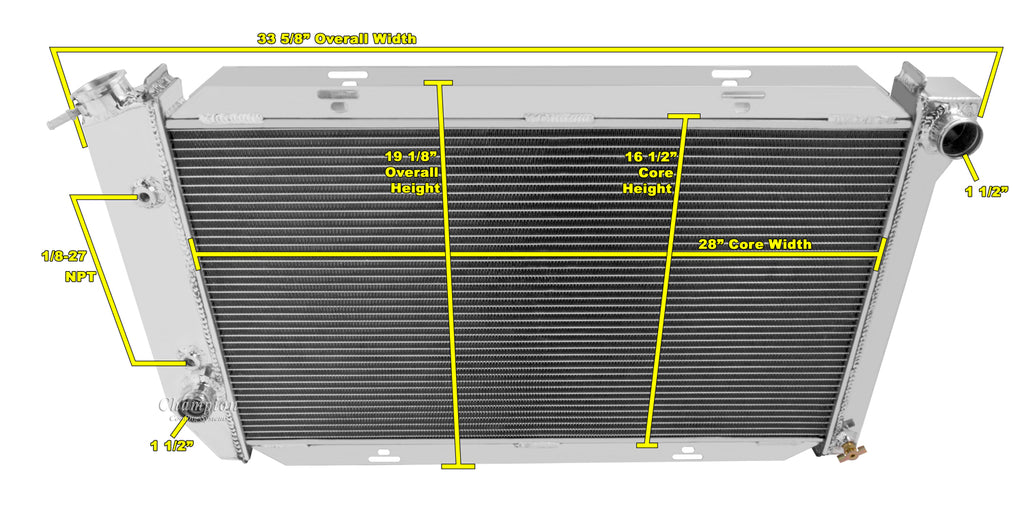

Radiator Dimensions:
Total: 19.5" tall (with cap) x 34" wide
Core: 16.5" tall x 28" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" or two 14" Electric fans recommended for this core size (sold separetely)
