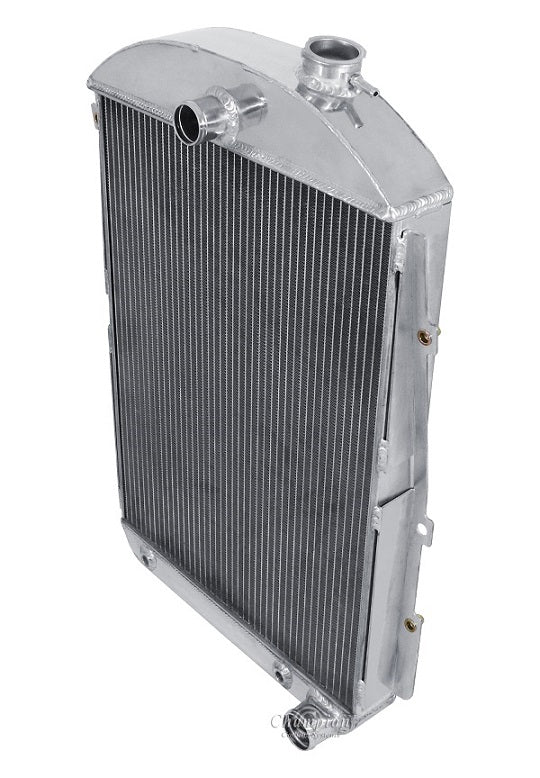

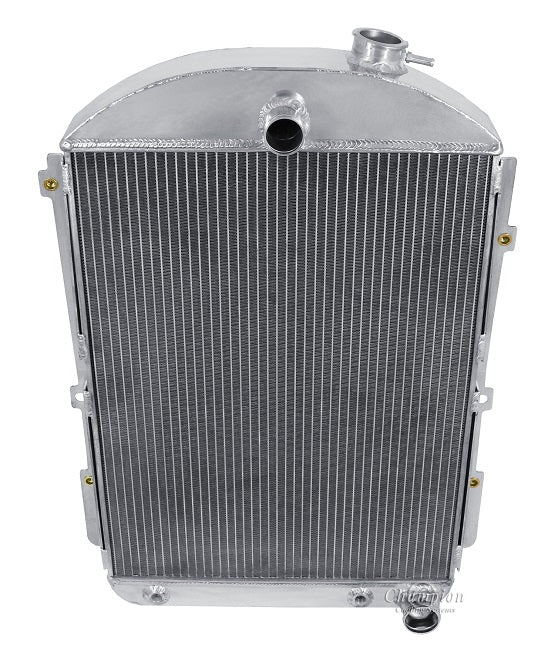

CC38CH For V8's 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 700hp
V8 Conversions

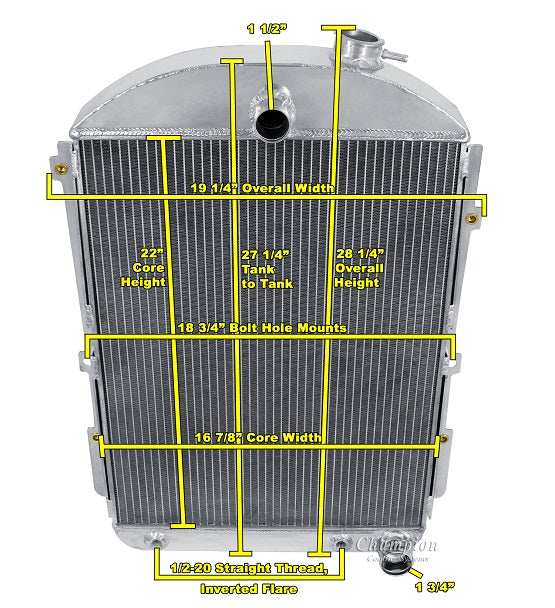

Radiator Dimensions:
Total: 28.25" tall x 19.25" wide
Core: 22" tall x 16.87" wide x 2.25" thick
Inlet: 1.5" Center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

13lb. Radiator Cap Included
Transmission Cooler (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" fan recommended for this core size (sold separately)

Custom Shroud Available Upon Request
