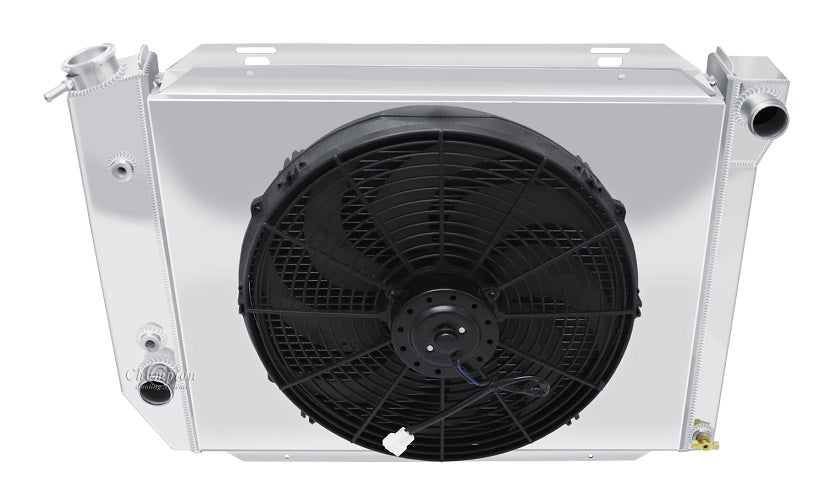

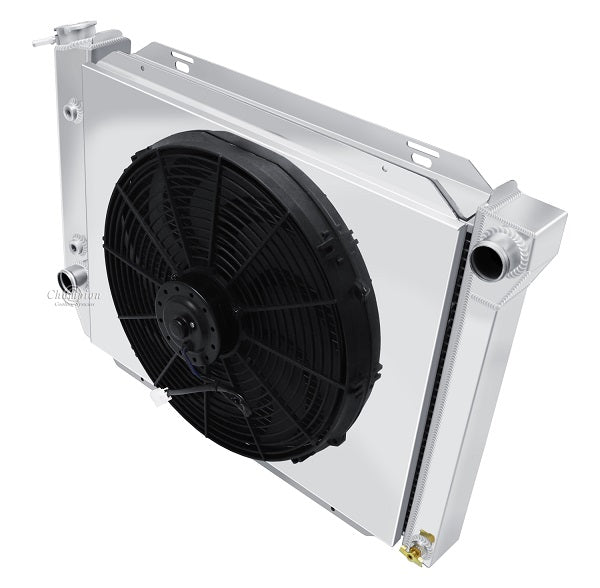

CC385-385FS16C 3 Row Combo

All Aluminum Champion Radiator PLUS
Shroud and 16" Pro-Series Fan
3-Row Core | Cools up to 600hp

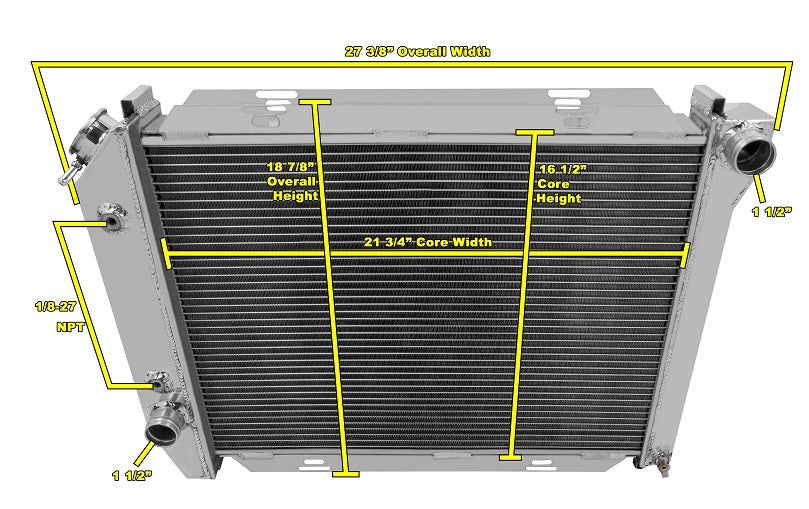

Radiator Dimensions:
Total: 19" tall (with cap) x 27" wide
Core: 16 .5" tall x 22" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver's side
Tanks: 3.25" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
