CC385 3 Row

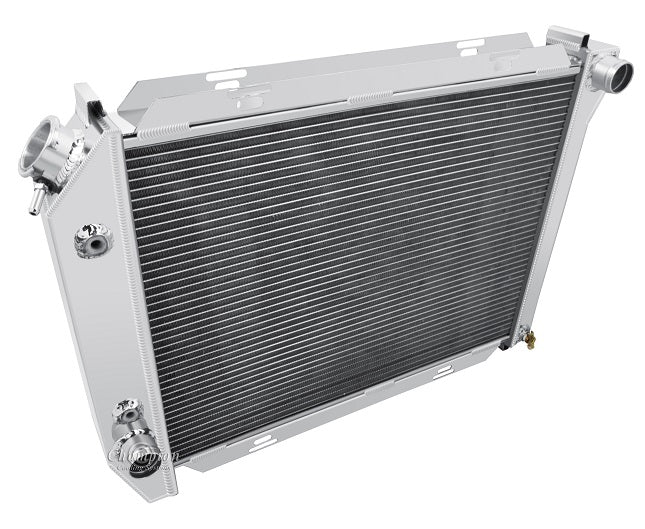

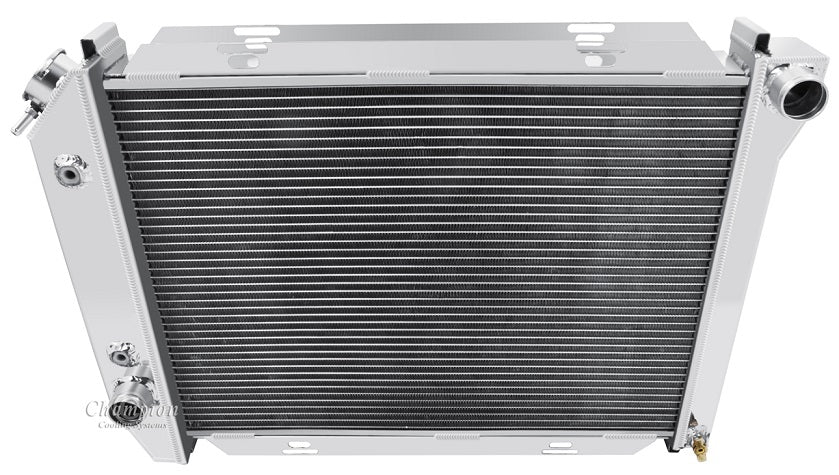

All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp

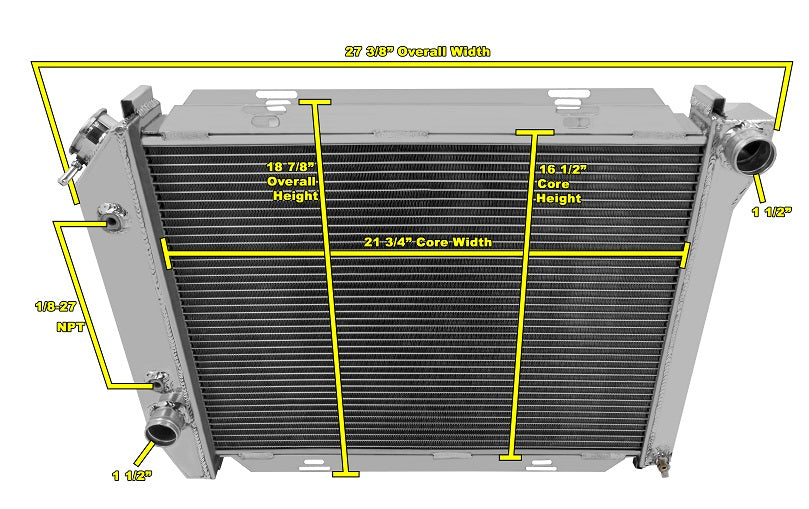

Radiator Dimensions:
Total: 19" tall (with cap) x 27" wide
Core: 16 .5" tall x 22" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver's side
Tanks: 3.25" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
16" Electric fan recommended for this core size (sold separetely)
