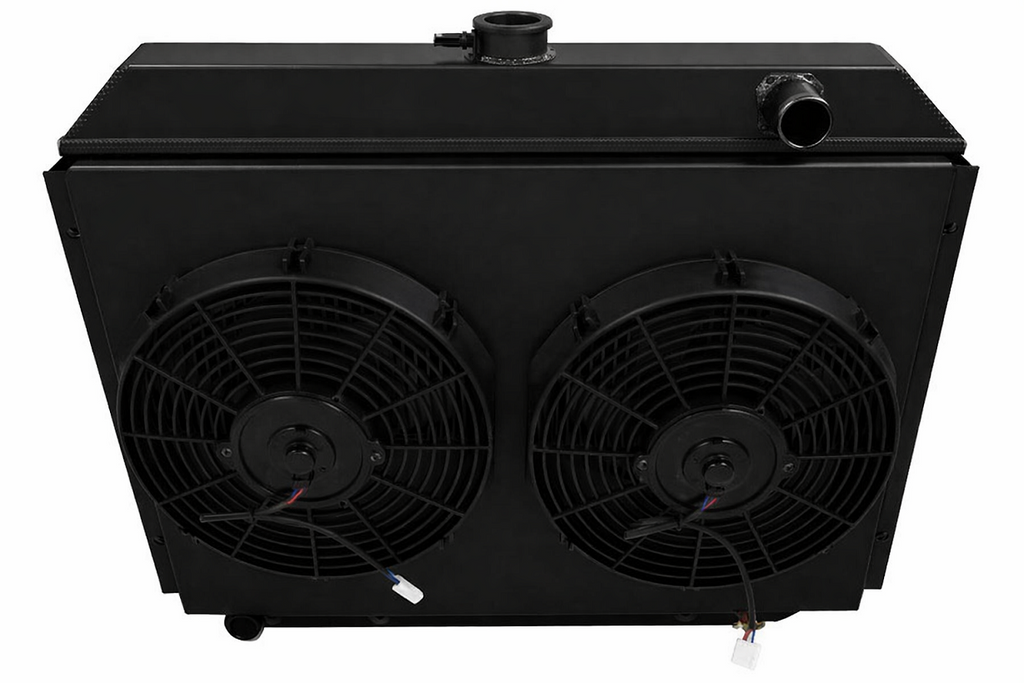

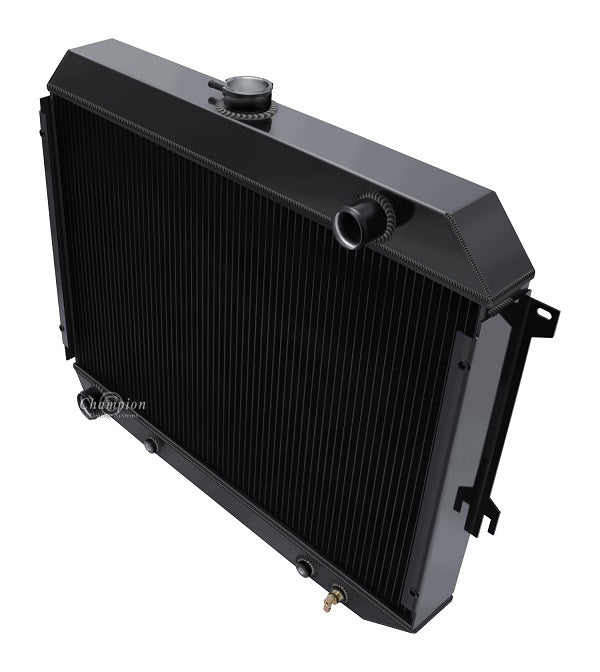

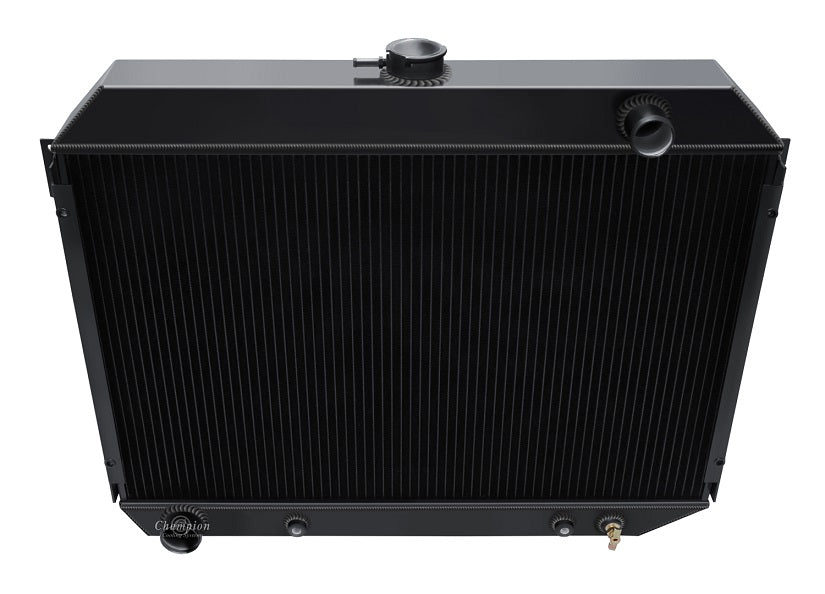

Champion All Aluminum Radiator (Black) Plus
Aluminum Shroud & (2) SPAL-1522 12" Fans
3-Row Core | Cools 750hp

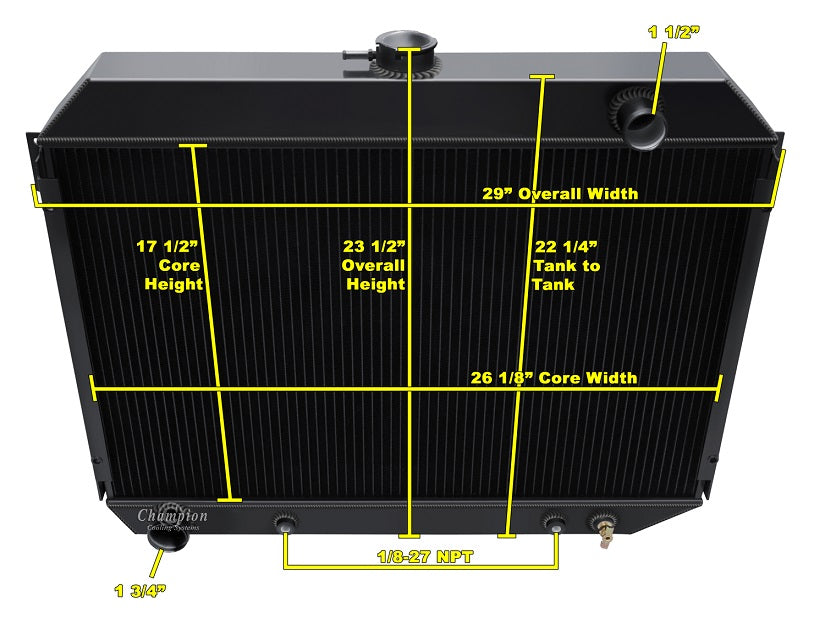

Radiator Dimensions:
Total: 22.25" tall (23.30” with cap) x 29" wide (with brackets)
Core: 17.5" tall x 26" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75"
Tubes: 0.75" thick
Total Thickness: 6" to back of fan motors
4.75" between motors where waterpump sits
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
