CC375B-BLK 3 Row Black

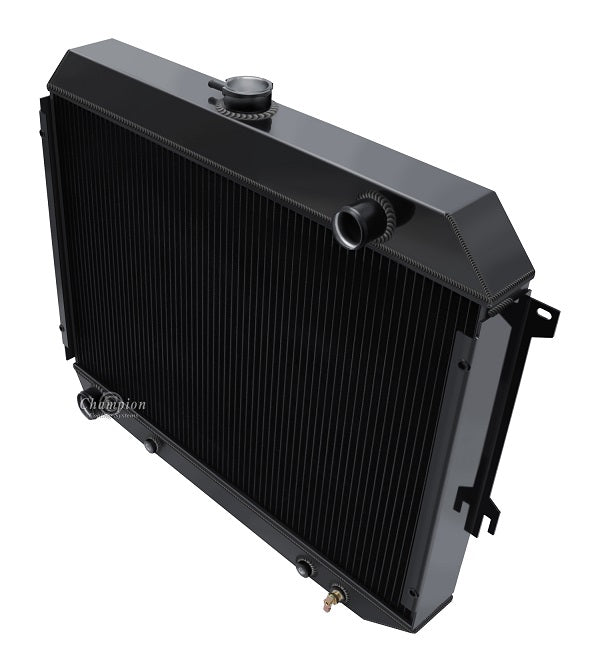

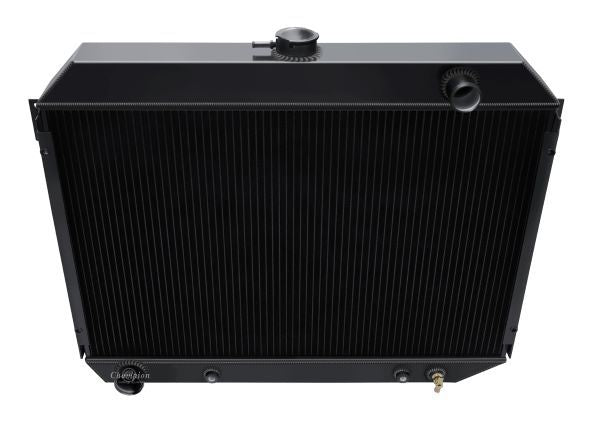

Champion All Aluminum Radiator (Black)
3-Row Core | Cools up to 700hp

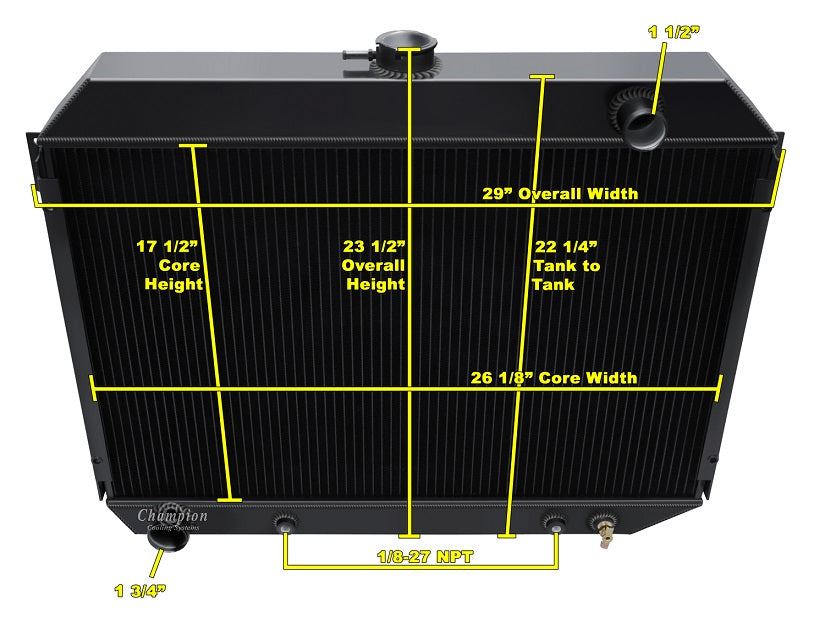

Radiator Dimensions:
Total: 22.25" tall (23.30” with cap) x 29" wide (with brackets) x 2.75" deep
Core: 17.5" tall x 26" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75"
Tubes: 0.75" thick

Bracket Mounted
No OEM Shroud support

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum shroud is also available (sold separately)

When using electric fans (sold separately):
Two 12" Electric fans recommended for this core size
