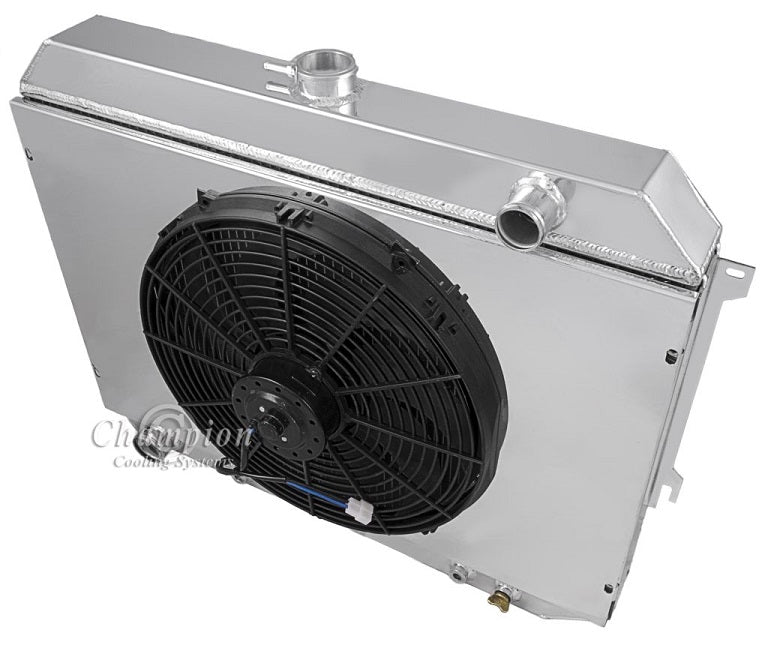

CC375B-375FS16 3 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Verify clearance for electric fan
Total thickness: 6.75" to fan motor
3-Row Core | Cools 750hp

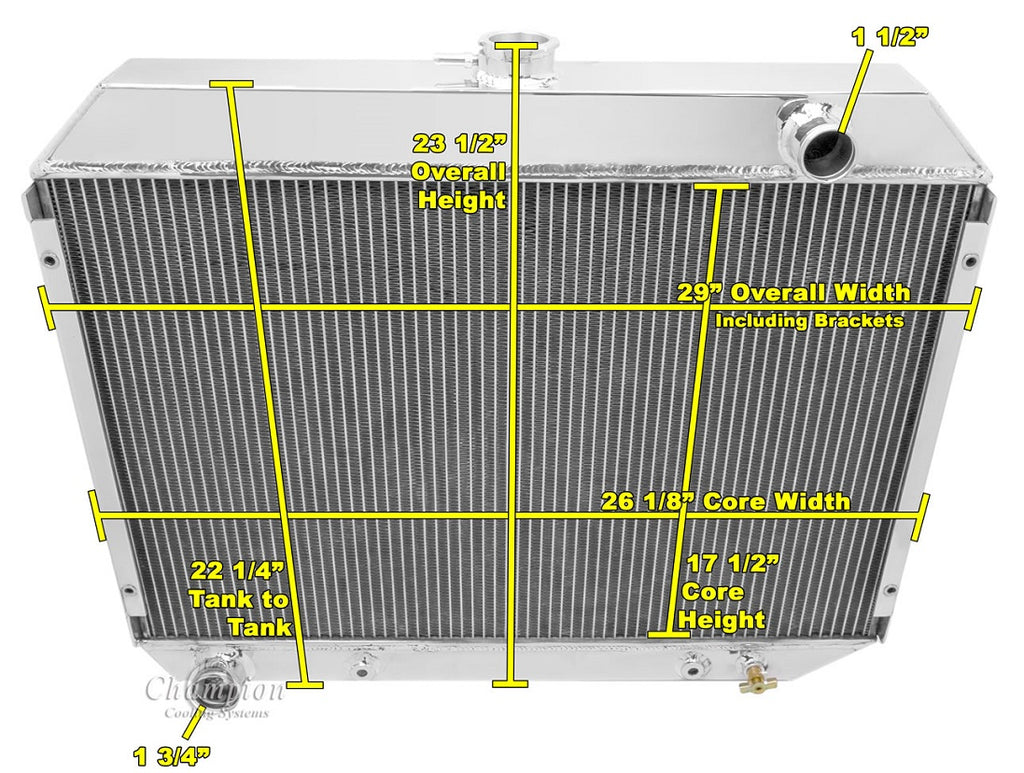

Radiator Dimensions:
Total: 22.25" tall (23.30” with cap) x 29" wide (with brackets)
Core: 17.5" tall x 26" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75"
Tubes: 0.75" thick

Total Thickness: 6.75"

Bracket Mounted
No OEM Shroud support

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
