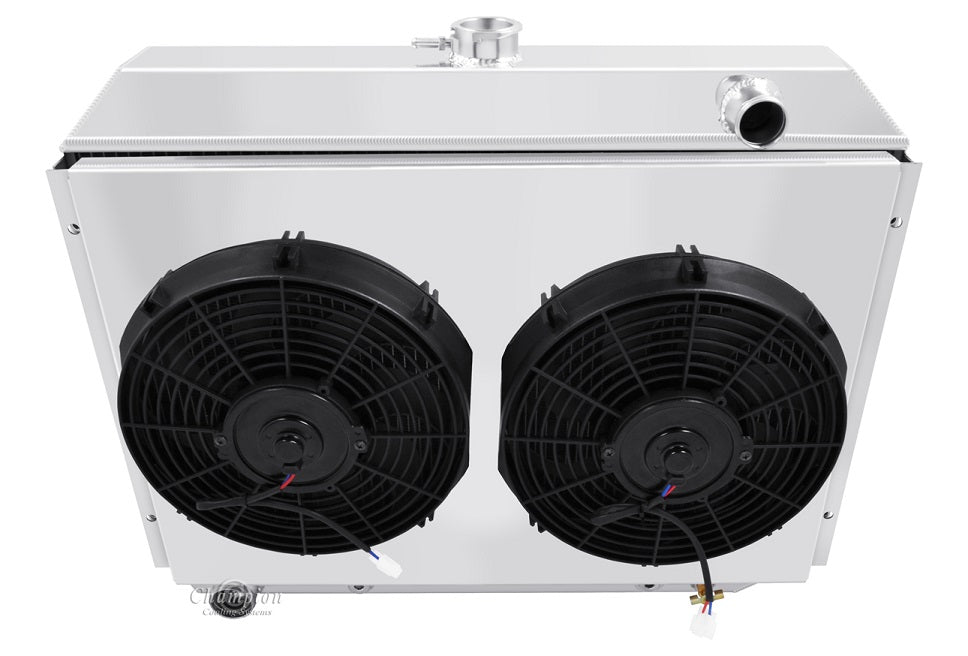

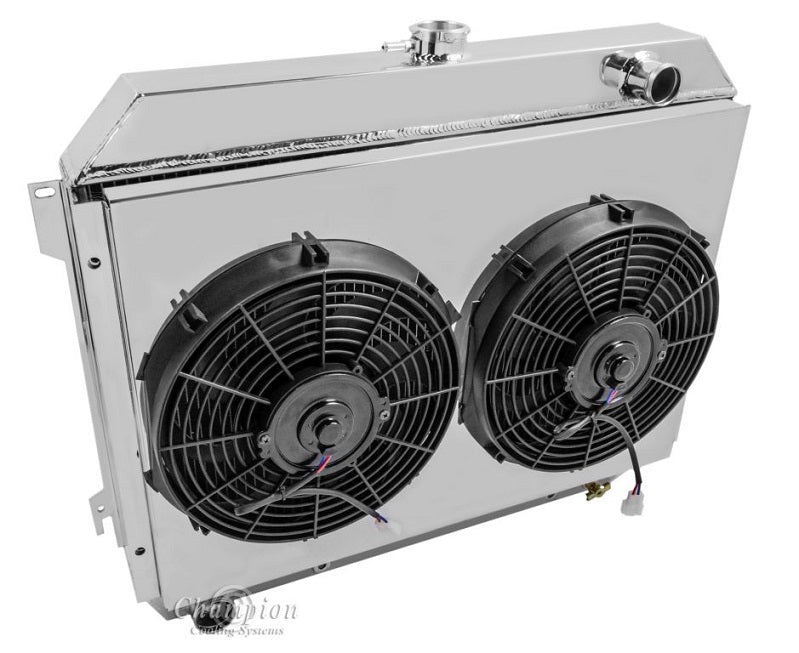

CC375B-375FS12SP 3 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud & two 12" SPAL 1522 Fans
3-Row Core | Cools 750hp

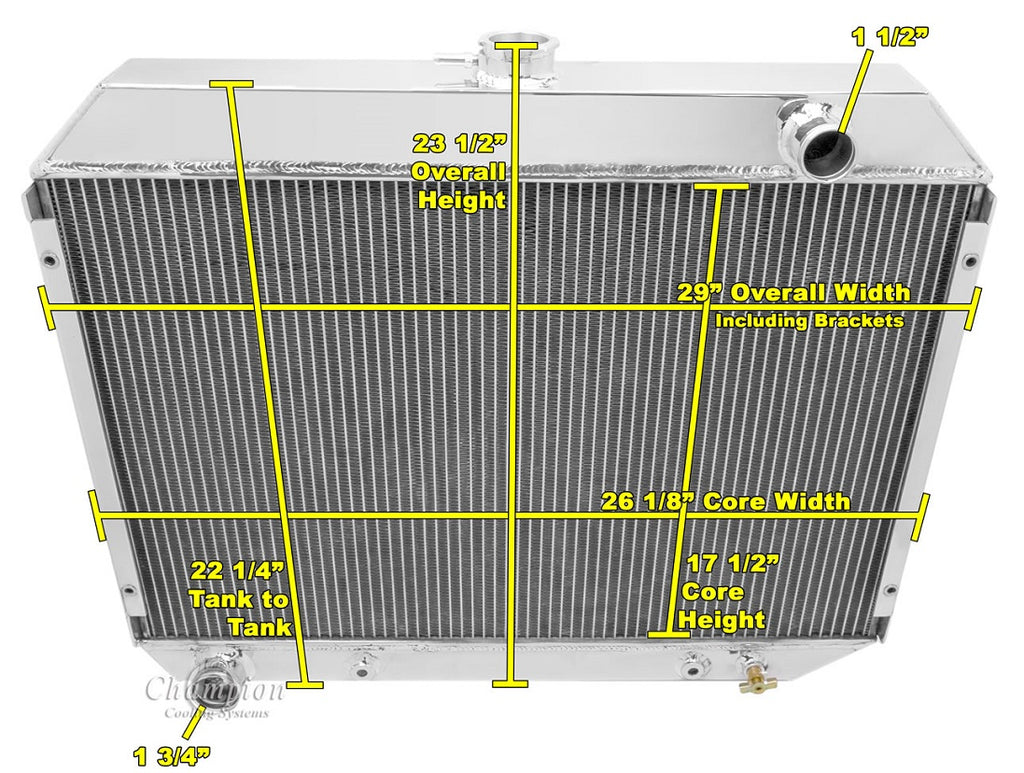

Radiator Dimensions:
Total: 22.25" tall (23.30” with cap) x 29" wide (with brackets)
Core: 17.5" tall x 26" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75"
Tubes: 0.75" thick

Total Thickness: 6" to back of fan motors
4.75" between motors where waterpump sits

Bracket Mounted
No OEM Shroud support

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
