CC374B-BLK 3 Row Black

Champion All-Aluminum Radiator (Black)
3-Row Core | Cools up to 650hp

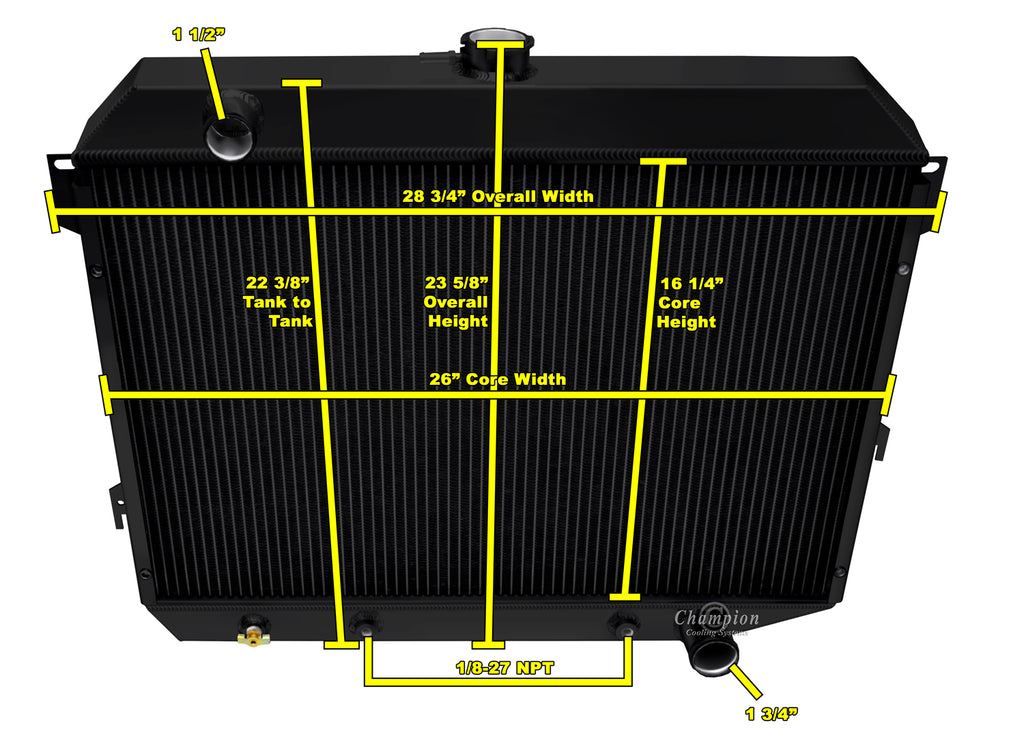

Radiator Dimensions:
Total: 22.5" tall (23.5" w/ Cap) x 29" wide (including brackets)
Core: 16.25" tall x 26" wide x 2.5" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted
Check OEM Shroud Brackets for Shroud support

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
