Description

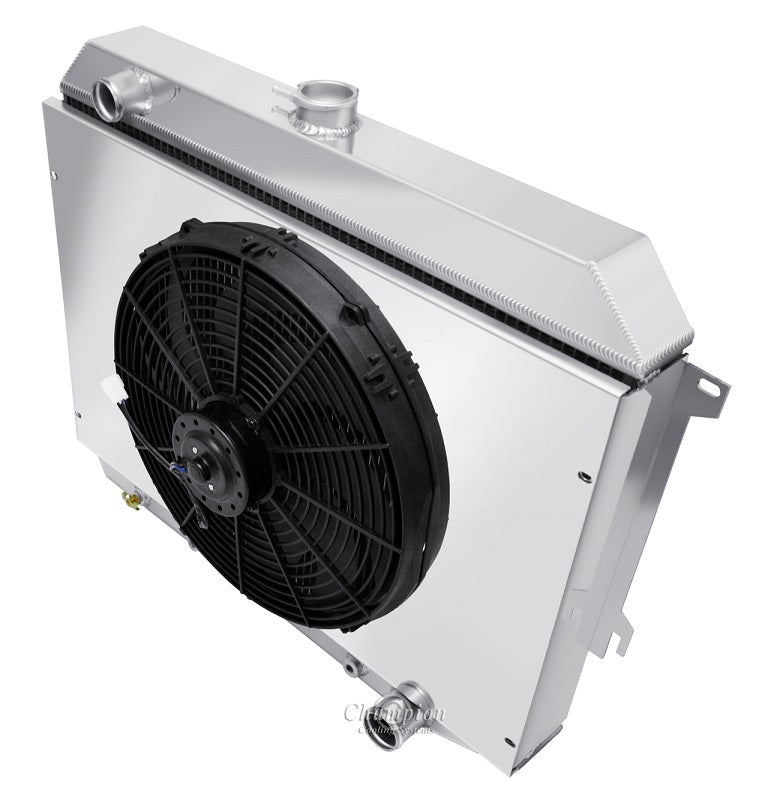

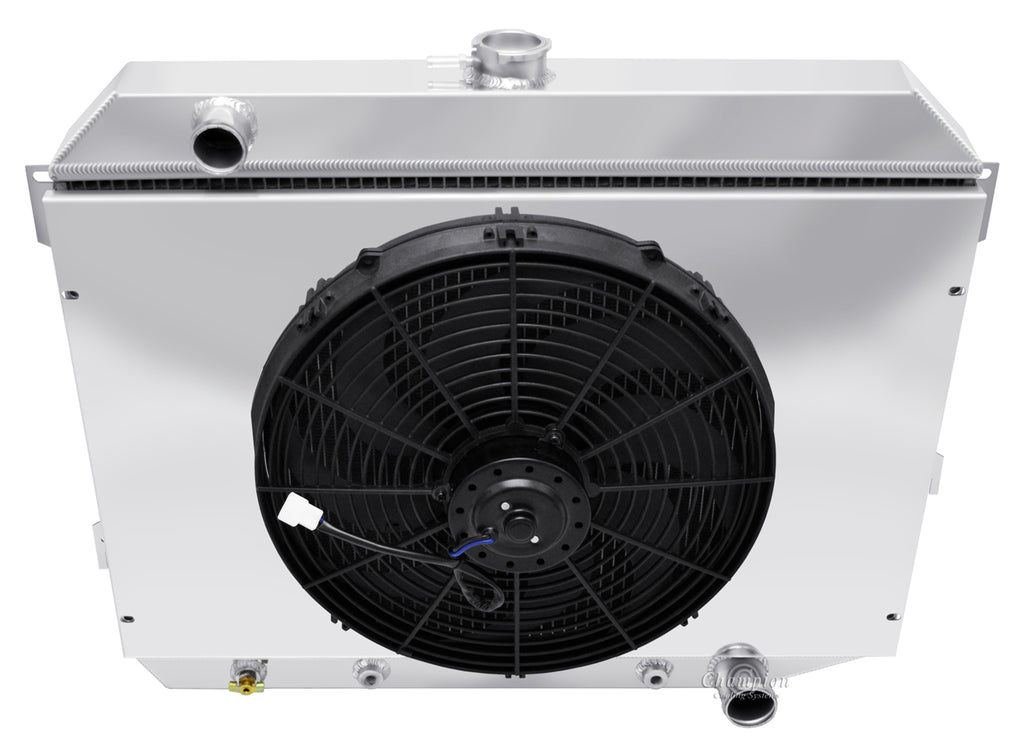

Champion All Aluminum Radiator PLUS
Aluminum Shroud & 16" Pro-Series fan
Verify clearance for electric fan
Total thickness: 6.75" to fan motor
3-Row Core | Cools up to 600hp

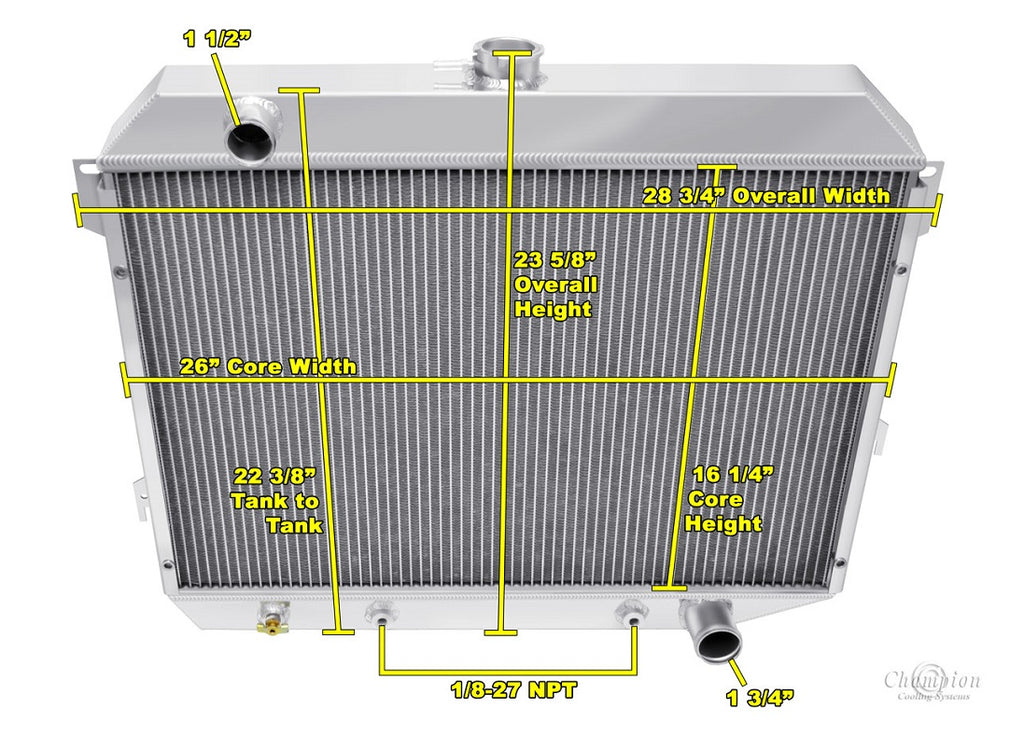

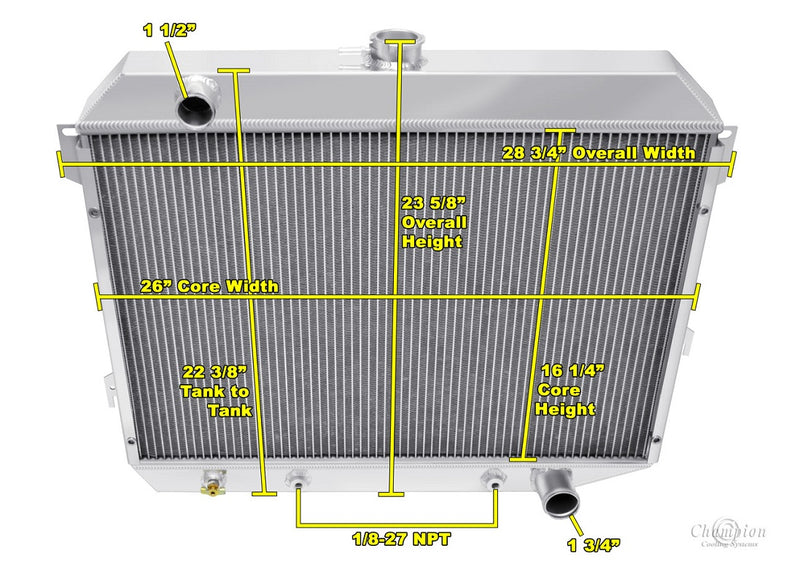

Radiator Dimensions:
Total: 22.5" tall (23.5" w/ Cap) x 29" wide (including brackets)
Core: 16.25" tall x 26" wide x 2.5" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6" to back of fan motors
4.75" between motors where waterpump sits
Bracket Mounted
No OEM Shroud support
13lb. Radiator Cap included
Transmission Cooler included
LIFETIME WARRANTY
