CC3738CH-3738FS16C 3 Row Combo V8's

All Aluminum Champion Radiator PLUS

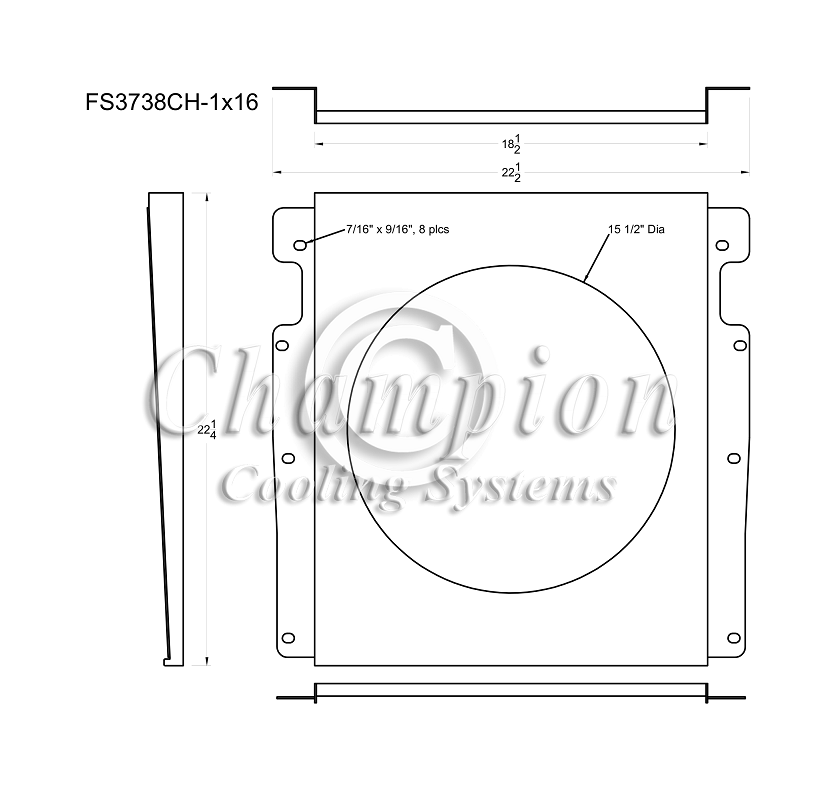

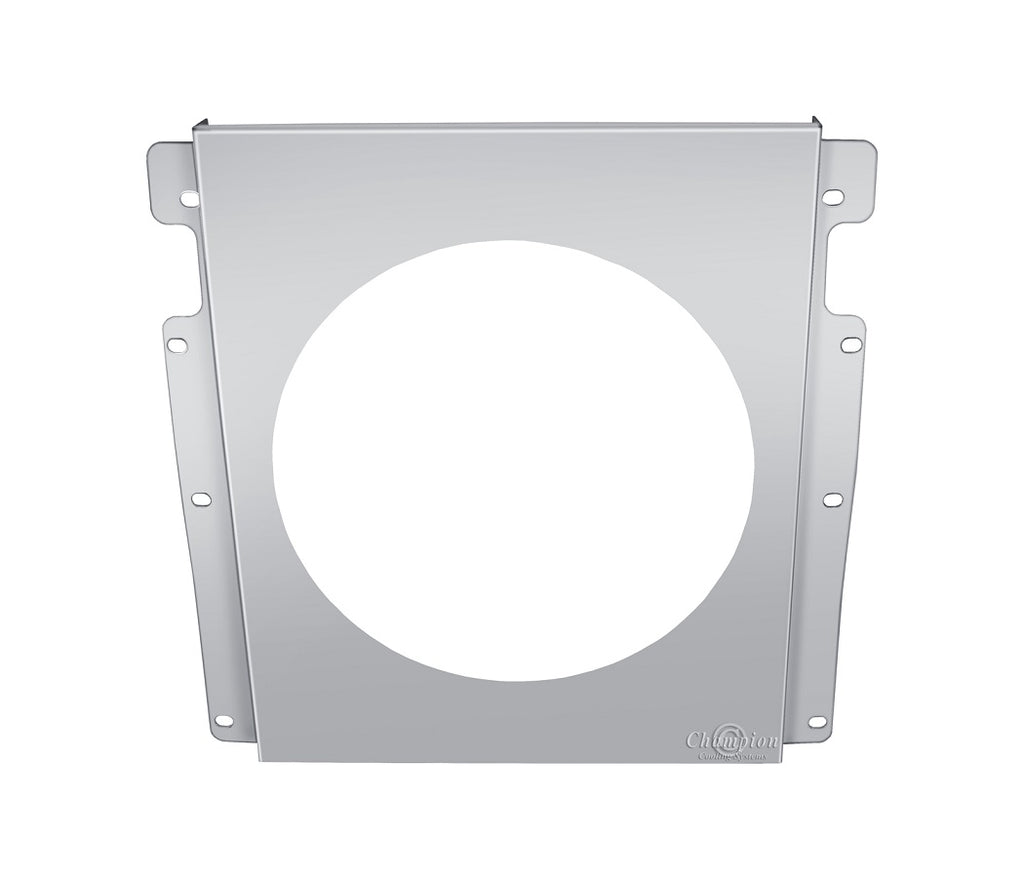

Aluminum Shroud & 16" Pro-Series Fan
3-Row Core | Cools up to 550hp
This set up is for V8 Conversions

Radiator Dimensions:
Total: 28.13" tall x 22.5" wide
Core: 22.5" tall x 18" wide x 2" thick
Inlet: 1.5" Center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 5" From core support in center

13lb. Radiator Cap Included
Transmission Cooler Included 1/2"-20 Straight Thread inverted Flair

When using electric fans:
One 16" fan recommended for this core size (sold separately)
