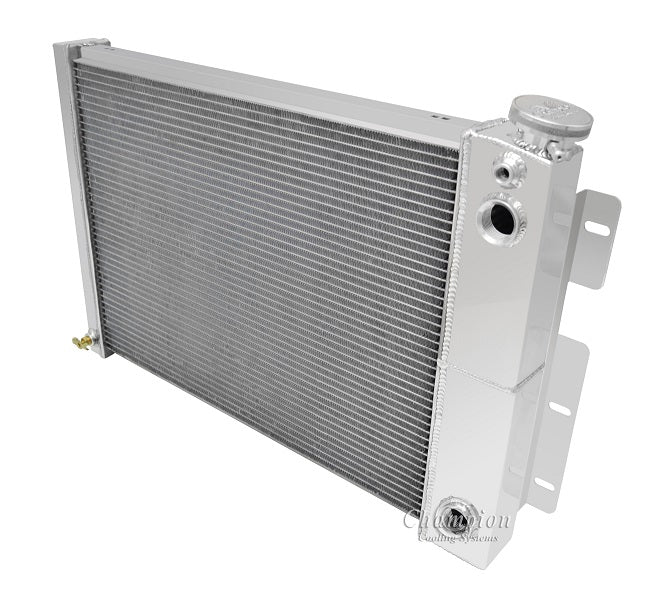

CC370B-DP-370CCFS11FSP 3 Row Dual Pass

Champion All Aluminum Radiator
Dual Pass / LS Conversions

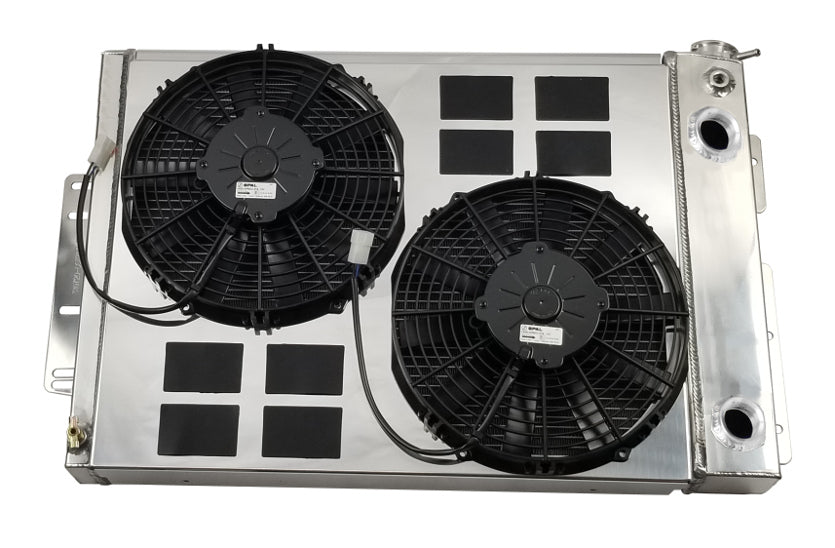

Plus Aluminum Shroud and Two 12" SPAL-1522 Fans
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core | Cools up to 700hp

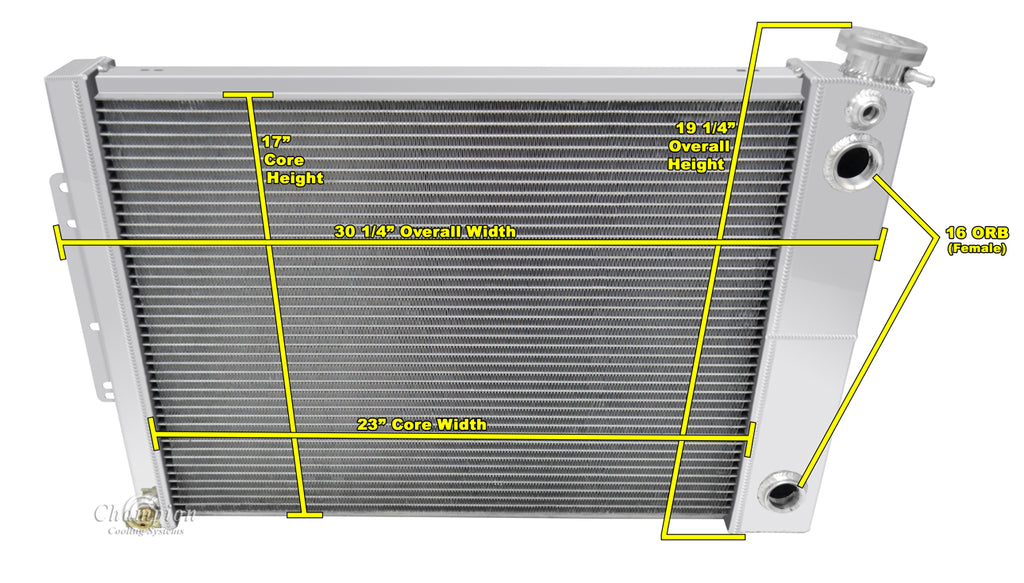

Radiator Dimensions:
Total: 18.63" tall (19.25" with cap) x 30.25" wide
Core: 17" tall x 23" wide x 2.5" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.44

Saddle Mounted

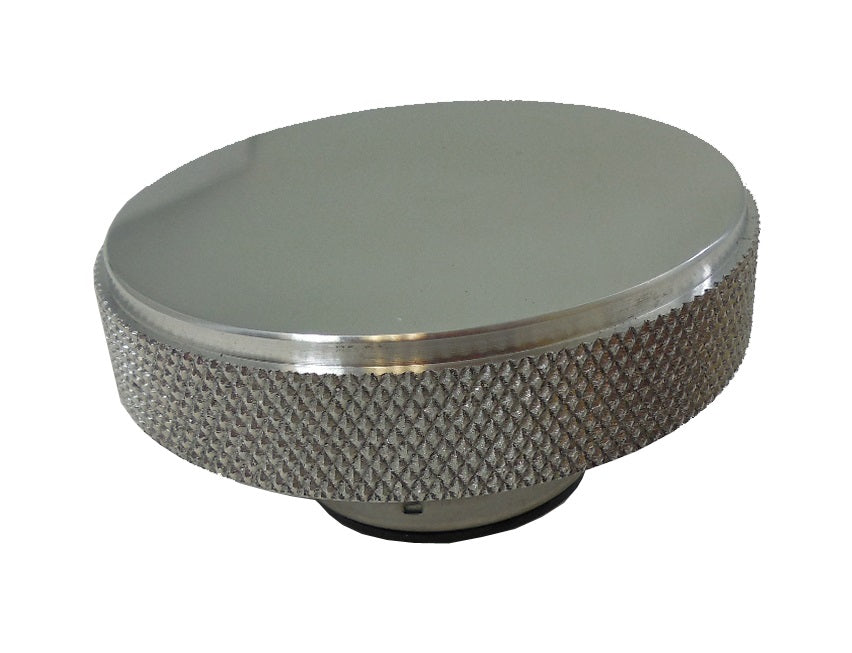

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
