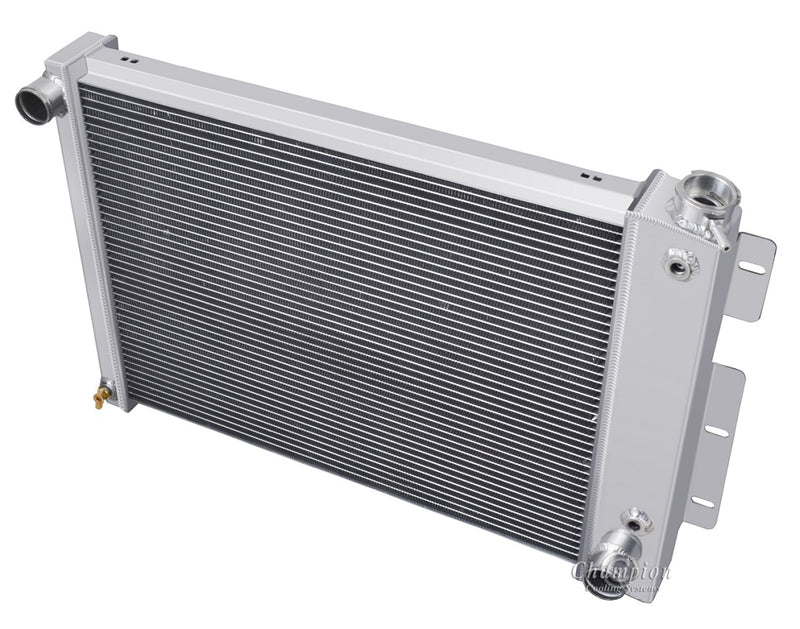

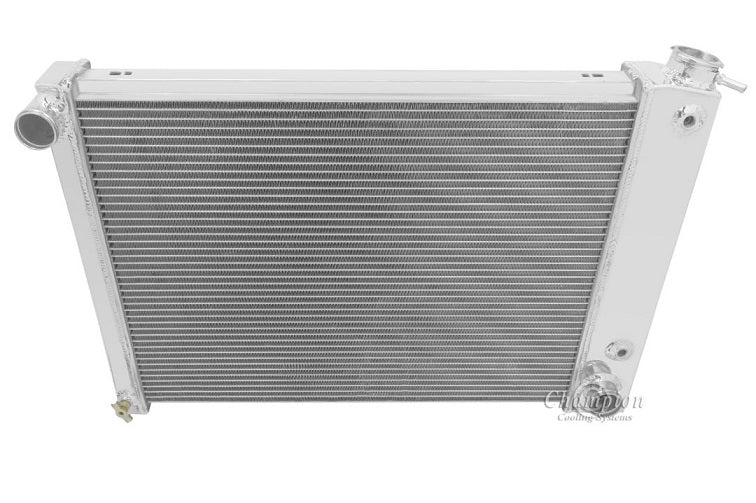

CC370B 3 Row 23" core

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

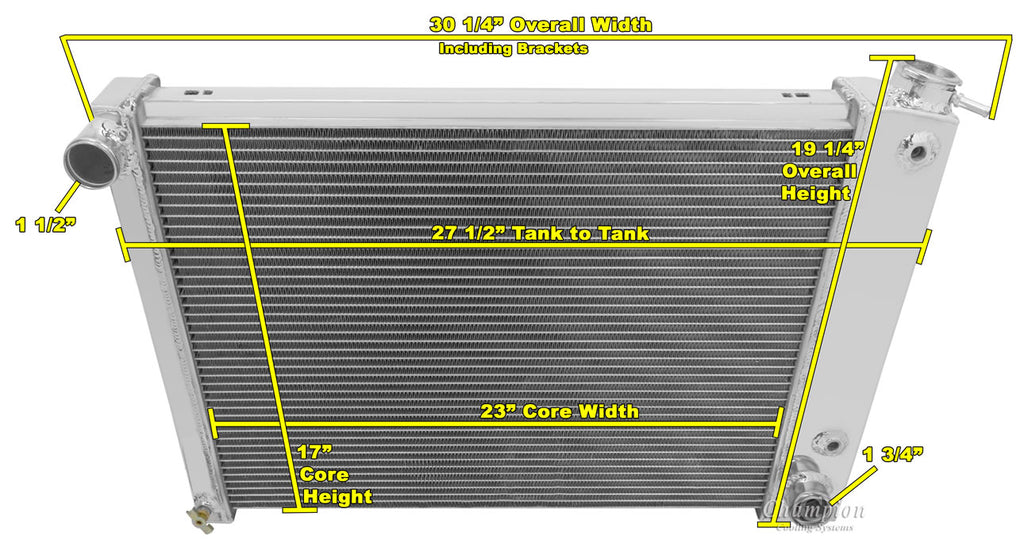

Radiator Dimensions:
Total: 18.5" (19.5" with cap) x 30.25" (with brackets)
Core: 16.75" tall x 22.75" wide x 2.5" thick
Inlet: 1.5"
Outlet:1.75"
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD G1/4)
Aluminum Shroud is also Available(sold separately)

When using electric fans:
Two 12" or one 16" Electric fans recommended for this core size(sold separately)
Click Here For Manual Transmissions
