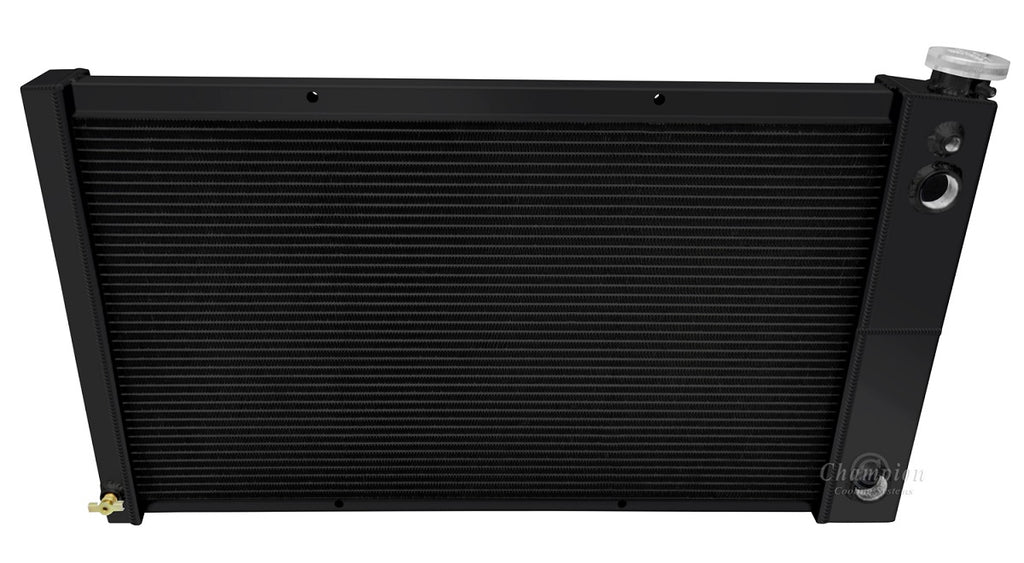

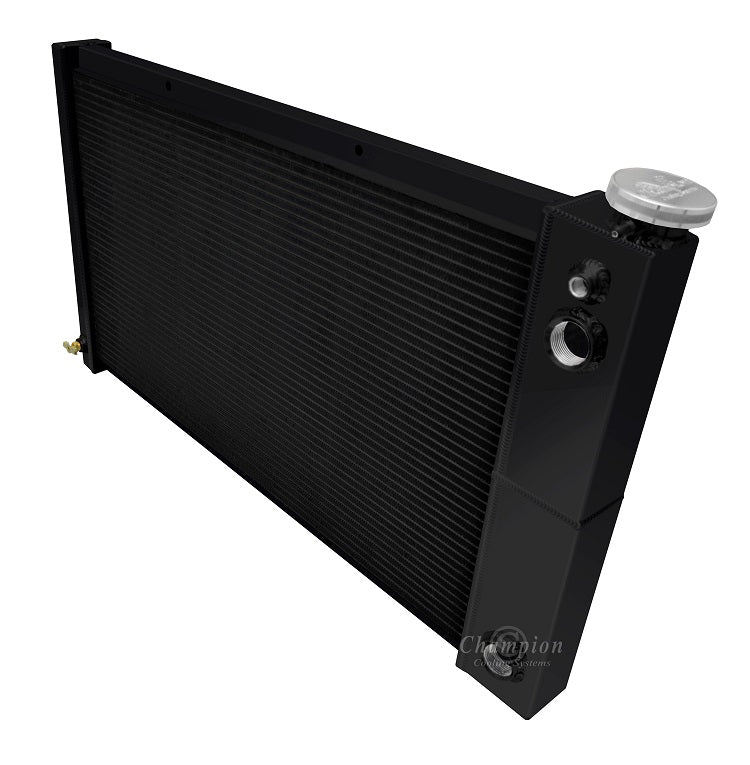

CC369DP-BLK 3 Row Dual Pass Black

Champion All Aluminum Radiator (Black)
Dual Pass / LS Conversions
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core | Cools up to 1000hp

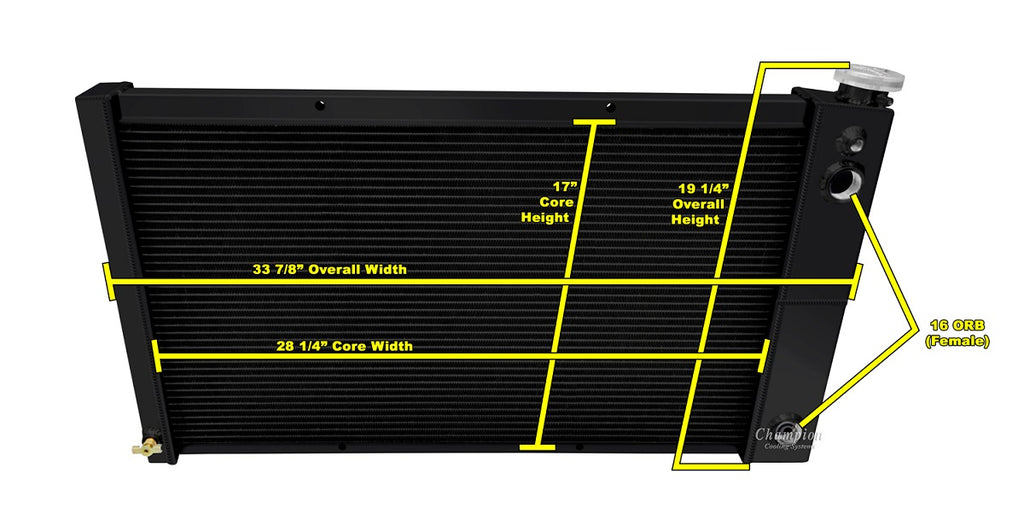

Radiator Dimensions:
Total: 18.63" tall (19.25" with cap) x 33.75" wide
Core: 17" tall x 28.25" wide x 2.25" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included

Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
Two 14" Electric fans recommended for this core size
