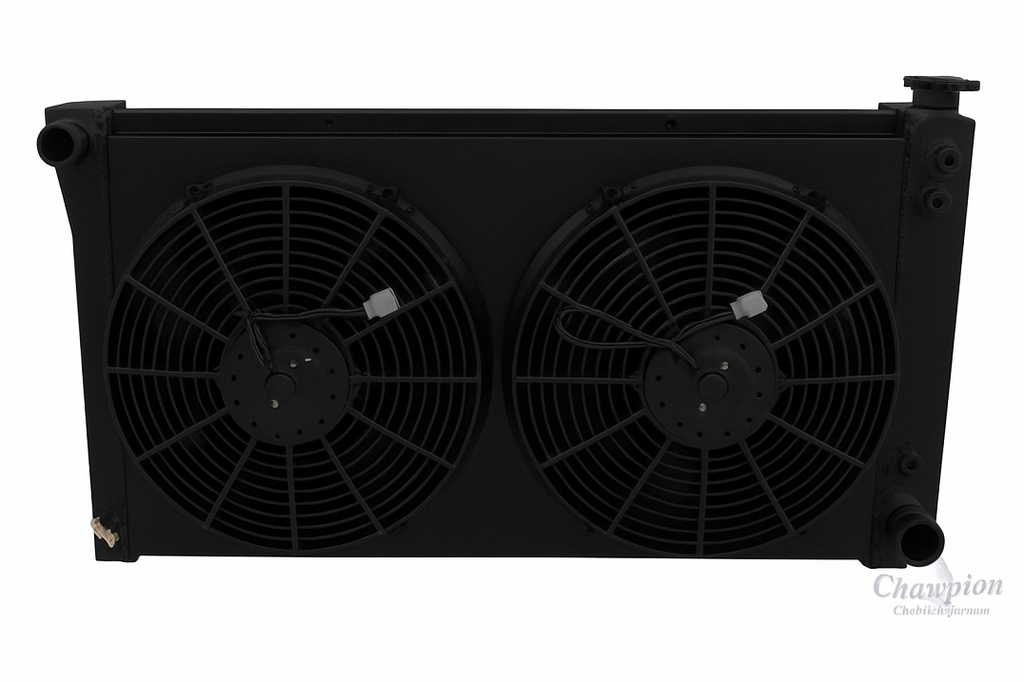

CC369-BLK-369FS14 3 Row Combo (Black)

Champion All Aluminum Radiator (Black)
Plus Aluminum Shroud + (2) 14" Pro-Series Fans
Verify clearance for electric fan
Total thickness: 6" to fan motor, 4.75" between fans
3 Row Core | Cools 850hp

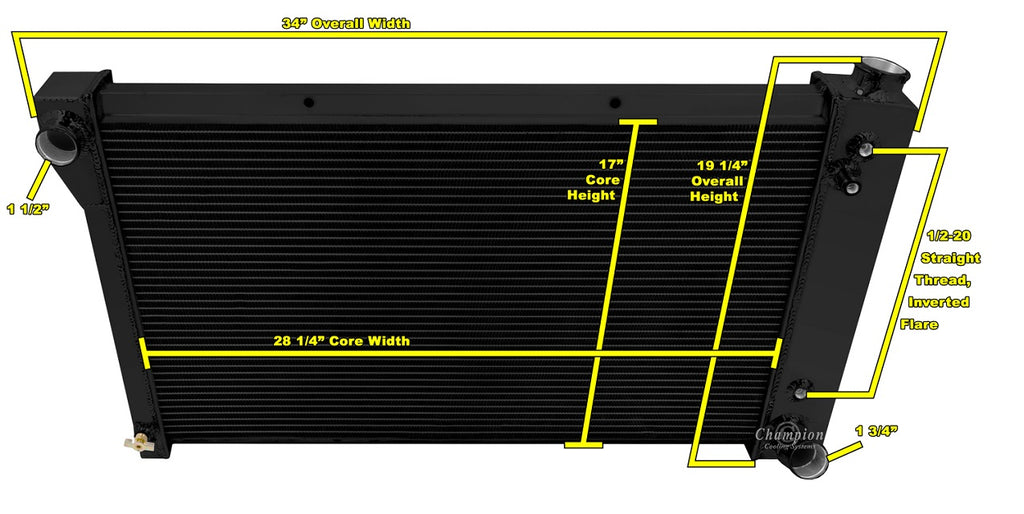

Radiator Dimensions:
Total: 18.25" tall (19" incl cap) x 33" wide
Core: 17" tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)
