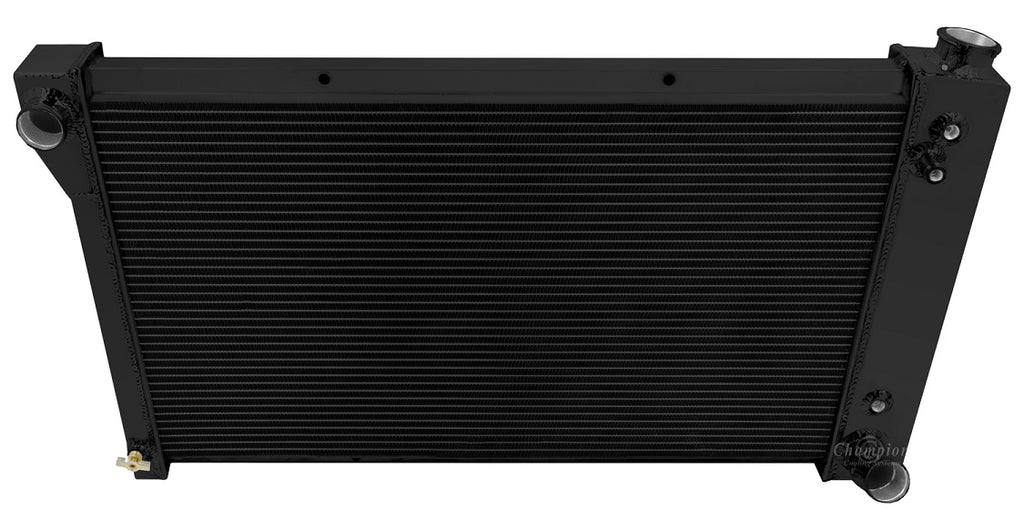

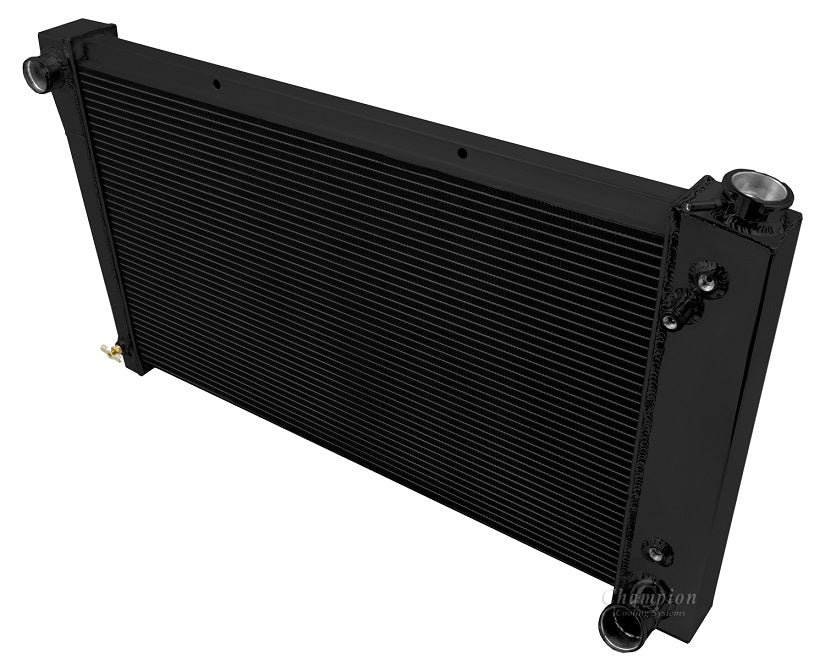

CC369-BLK 3 Row Black

All Aluminum Champion Radiator (Black)
3-Row Core | Cools up to 800hp

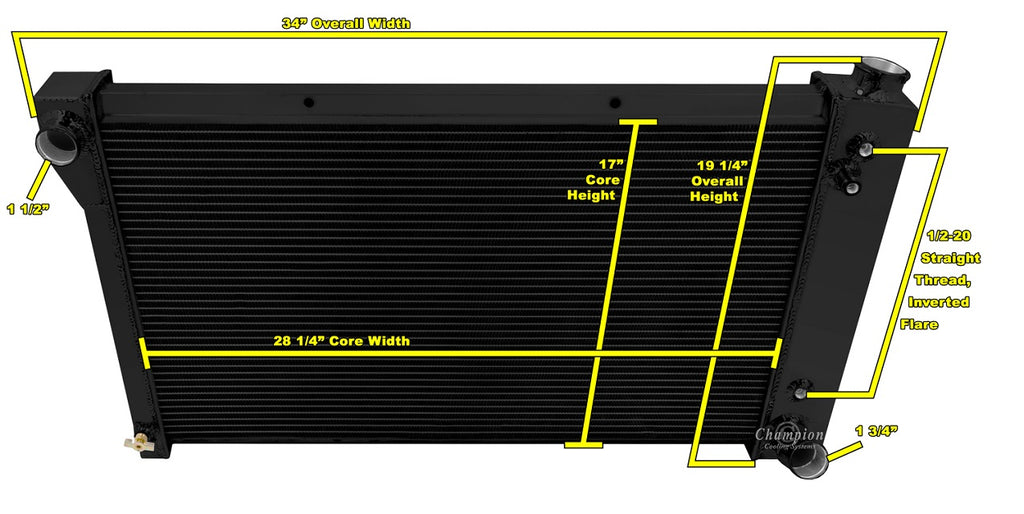

Radiator Dimensions:
Total: 19.25" tall x 33.88" wide
Core: 17" tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap Included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD W/ INVERTED FLARE)
Aluminum Shroud is also available (sold separately)

When using electric fans:
Two 12" or 14" Electric fans recommended for this core size (sold separately)

Click Here For Manual Transmissions
