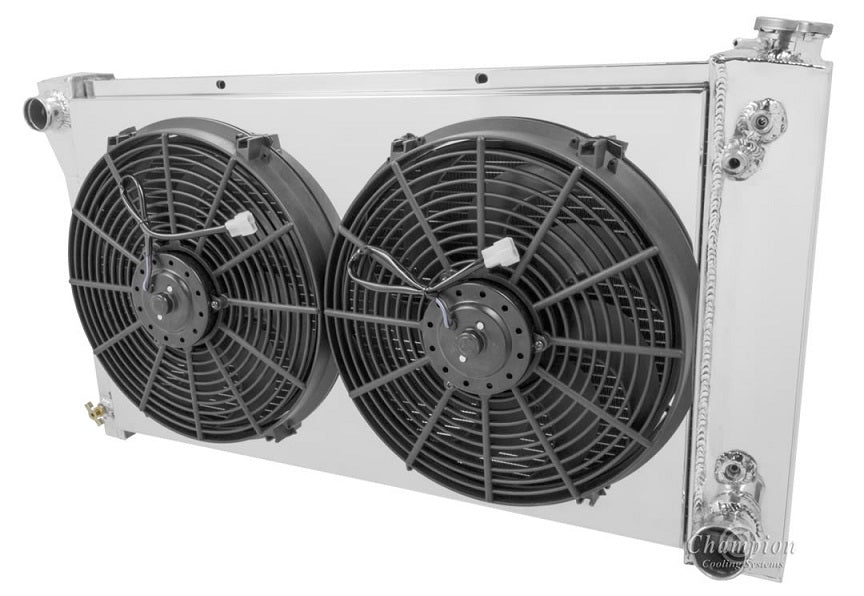

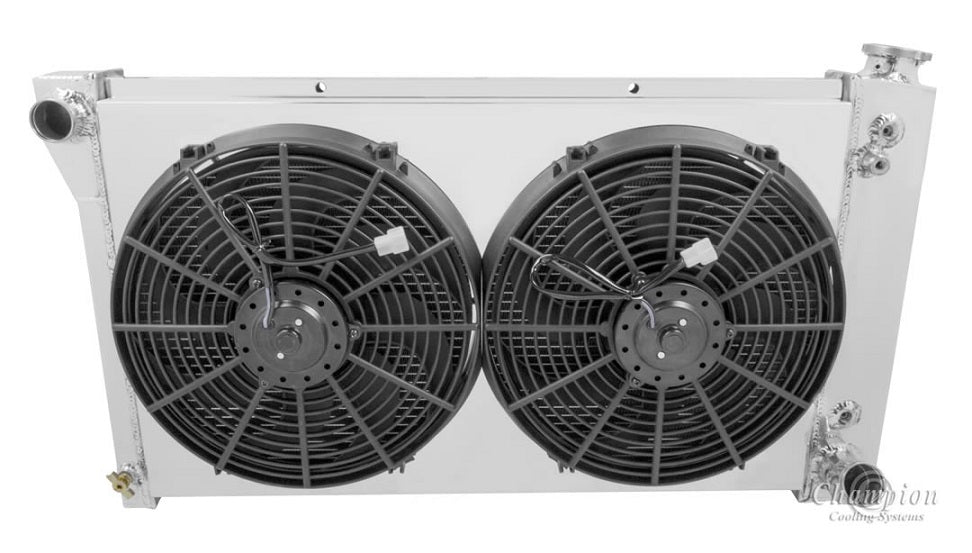

CC367-367FS12C 3 Row Combo 6 Cyl

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans
Verify clearance for electric fan
Total thickness: 5.75" to fan motor, 4.5" between fans
3 Row Core | Cools 650hp

Radiator Dimensions:
Total: 18.25" tall (19" incl cap) x 32" wide
Core: 17." tall x 26.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)
