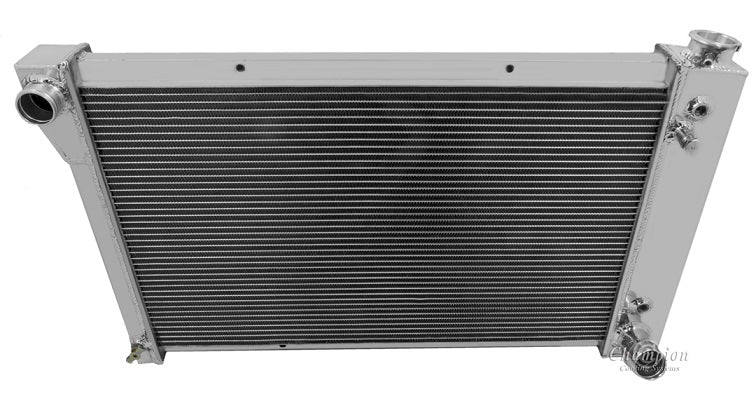

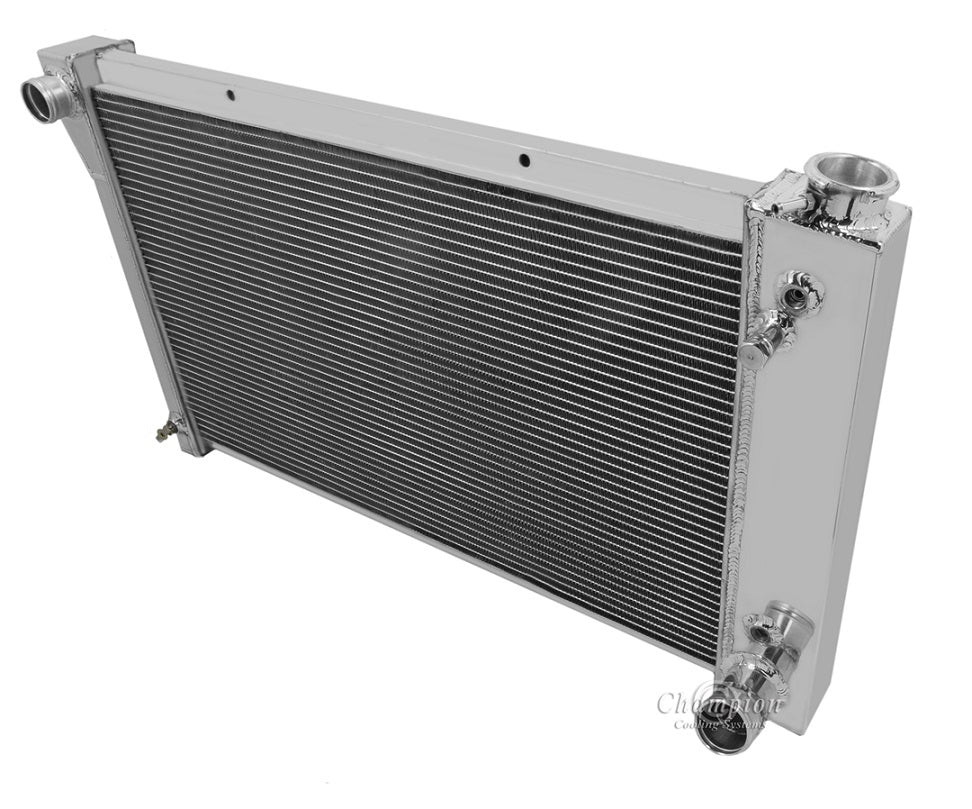

CC367 3 Row 6 Cyl

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp
This is the 6 Cyl Radiator

Radiator Dimensions:
Total: 19" tall (19.25" with cap) x 32" wide
Core: 17" tall x 26.25" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
Fan shipping is FREE when purchased with a radiator
