CC34CH 3 Row V8's

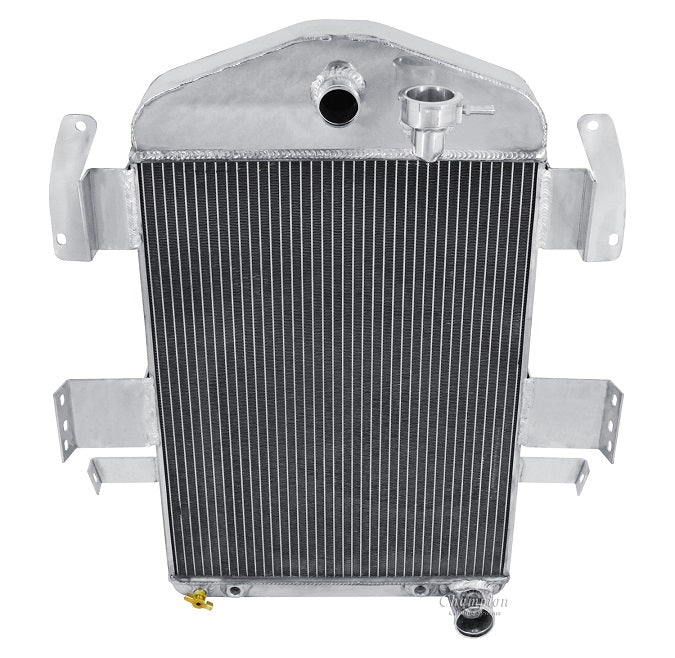

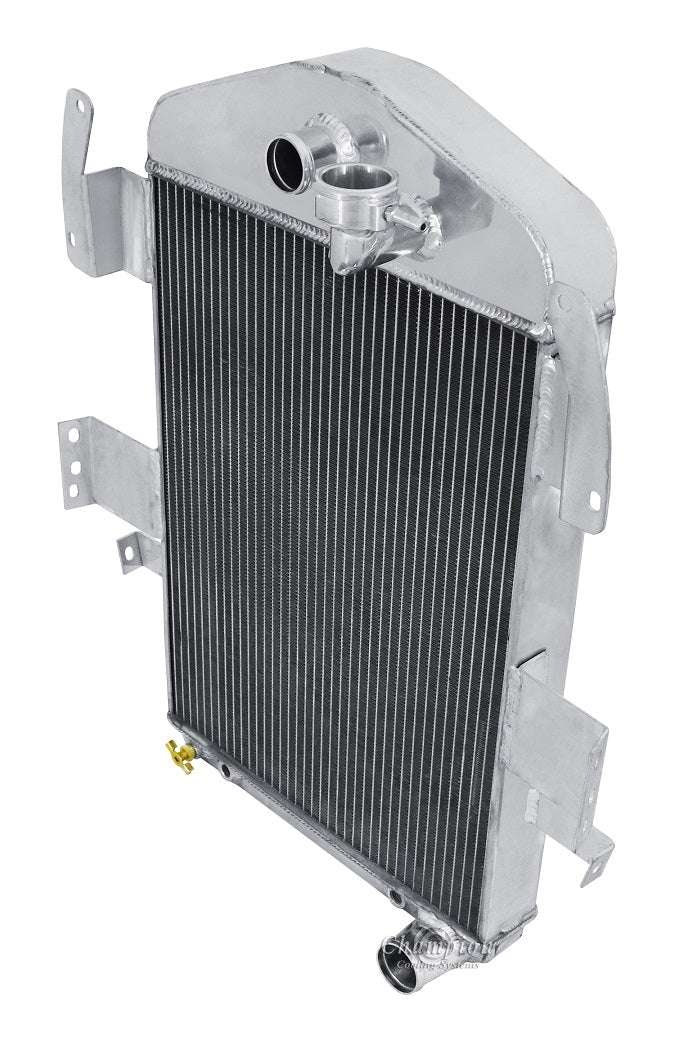

All Aluminum Champion Radiator
3-Row Core | Cools up to 750hp
V8 Conversion

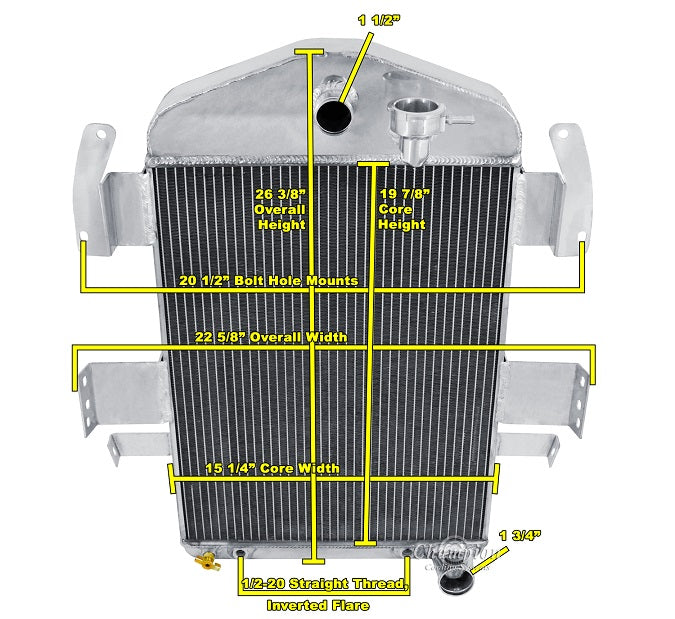

Radiator Dimensions:
Total: 26.38" tall x 22.58" wide (Incl brackets)
Core: 19.87" tall x 15.25" wide x 2.25" thick
Inlet: 1.5" Center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

13lb. Radiator Cap Included
Transmission Cooler (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
