CC1671 3 Row A/C and HD

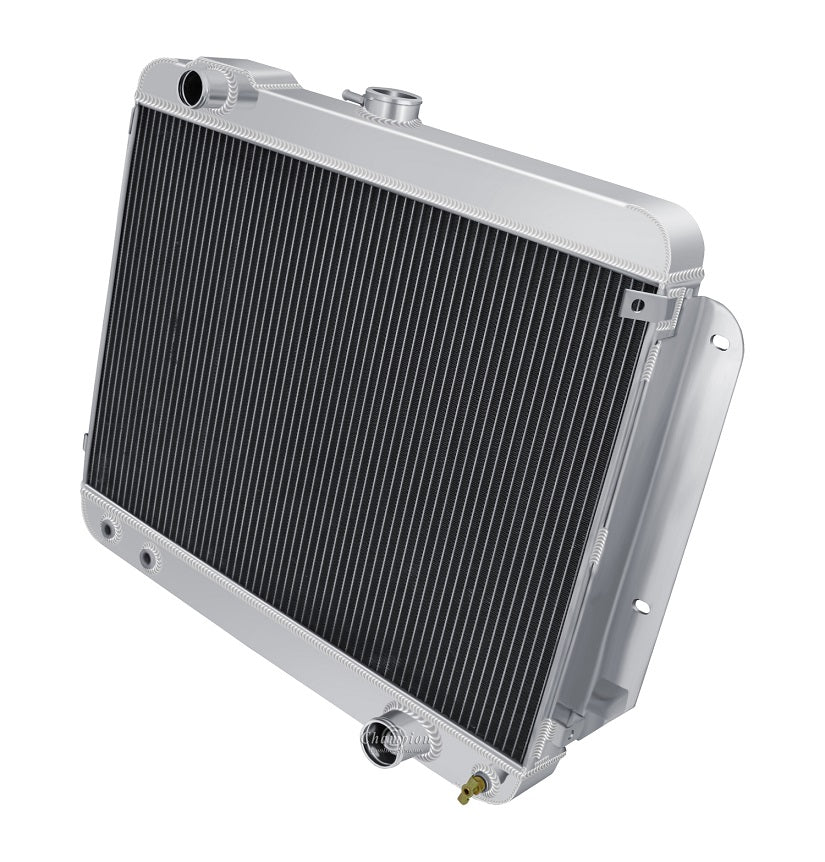

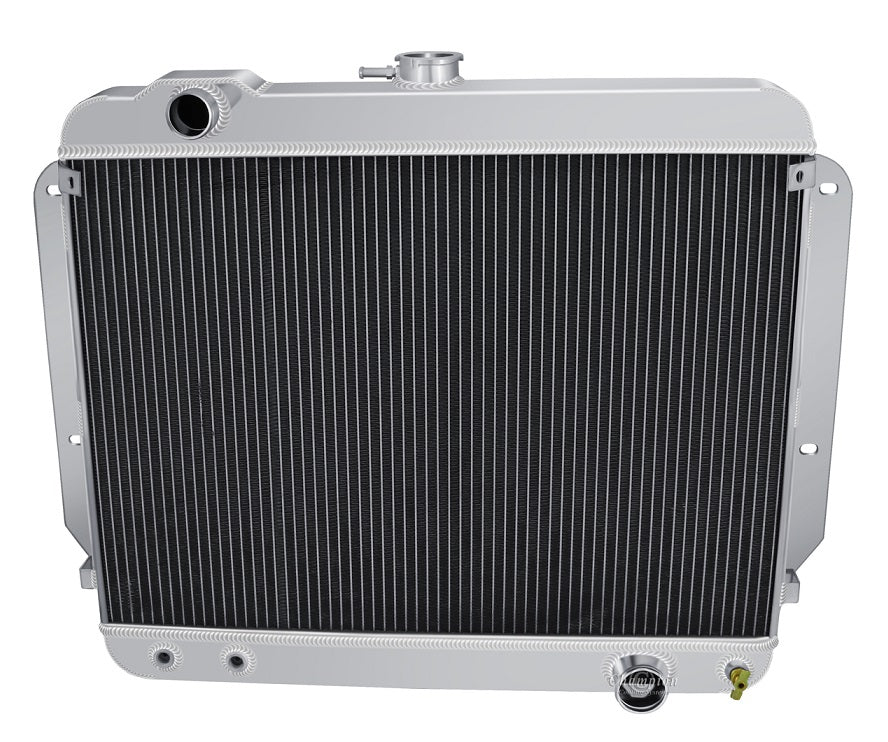

All Aluminum Champion Radiator
3-Row Core: Cools 600hp
Note: This replaces the OEM 17.38" tall core w/ AC or Heavy Duty

Radiator Dimensions:
Total: 22.63" tall x 28.63" wide (with brackets)
Core: 17.38" tall x 24.75" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted (27" on Center)

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD G1/4)

Recommended Fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
