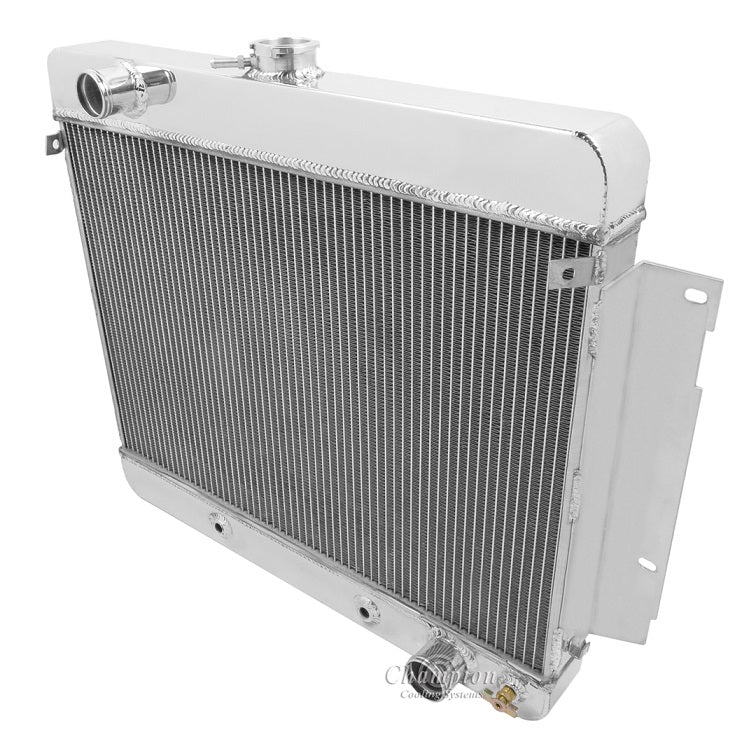

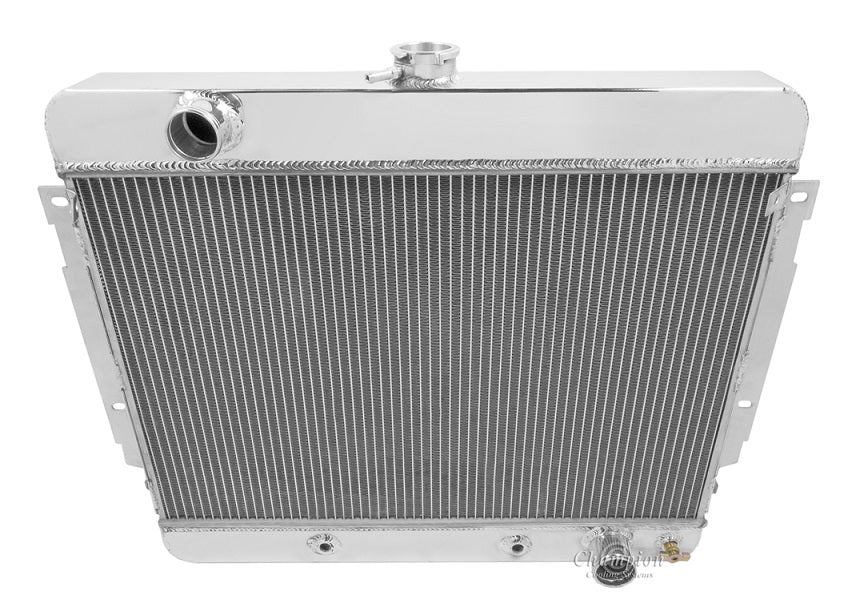

CC345-345FS11C 3-Row Combo No AC

All Aluminum Champion Radiator Plus

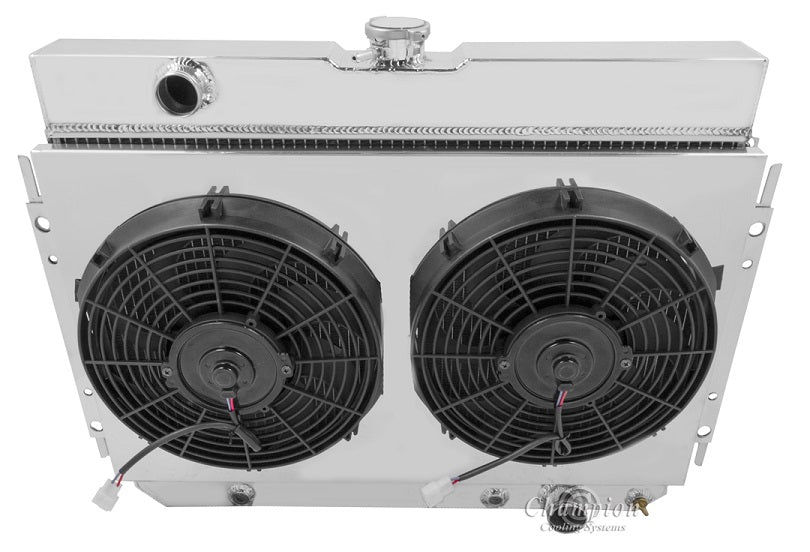

Shroud and two SPAL 11" Medium profile fans
3-Row Core: Cools 500hp
Note: This replaces the factory 15.5" tall core w/o AC

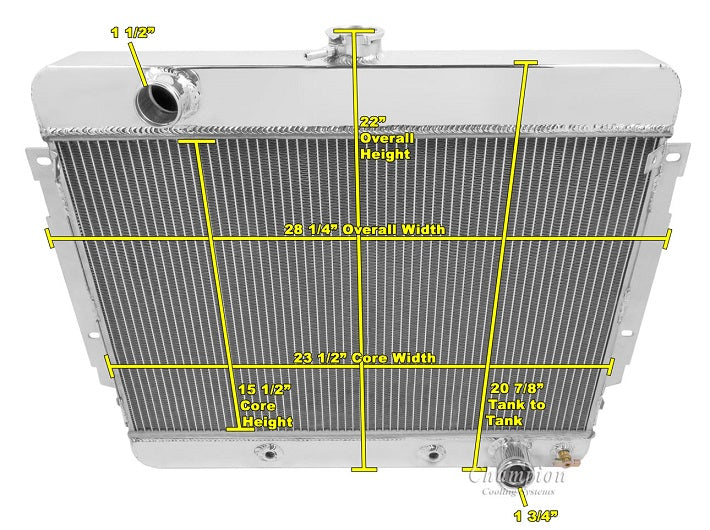

Radiator Dimensions:
Total: 22" tall x 28.25" wide (with brackets)
Core: 15.5" tall x 23.38" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total thickness: 5.5" (4.5" Between fan motors)

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD, INVERTED FLARE)
