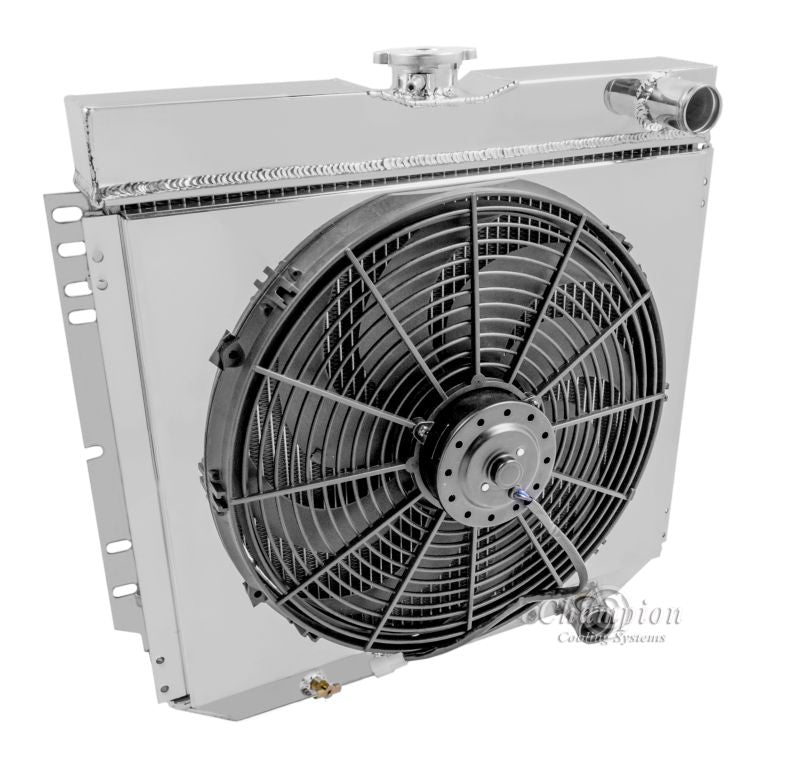

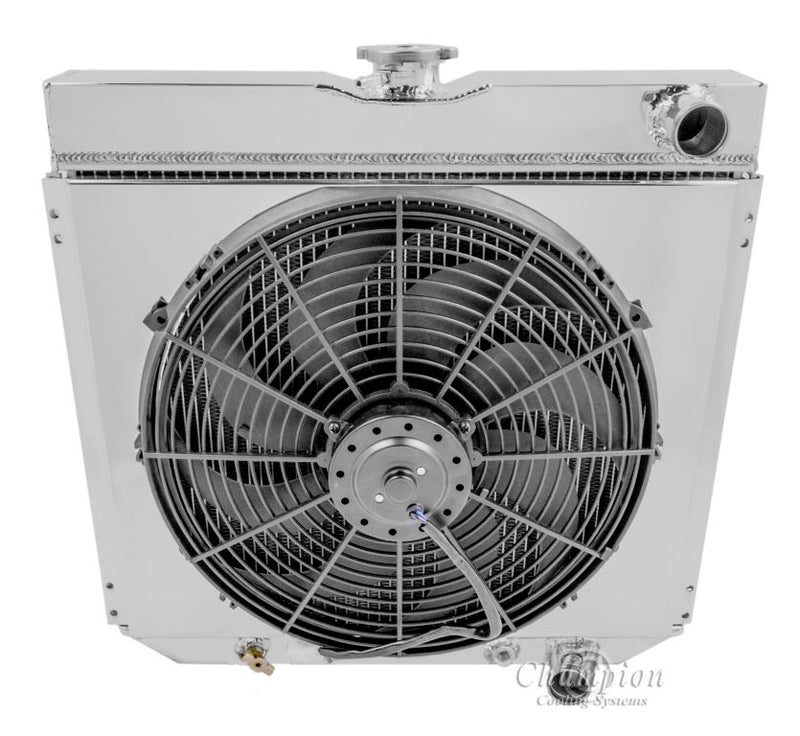

CC340B-340FS16SP 3 Row Combo

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud & 16" SPAL Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
3-Row Core | Cools up to 550hp

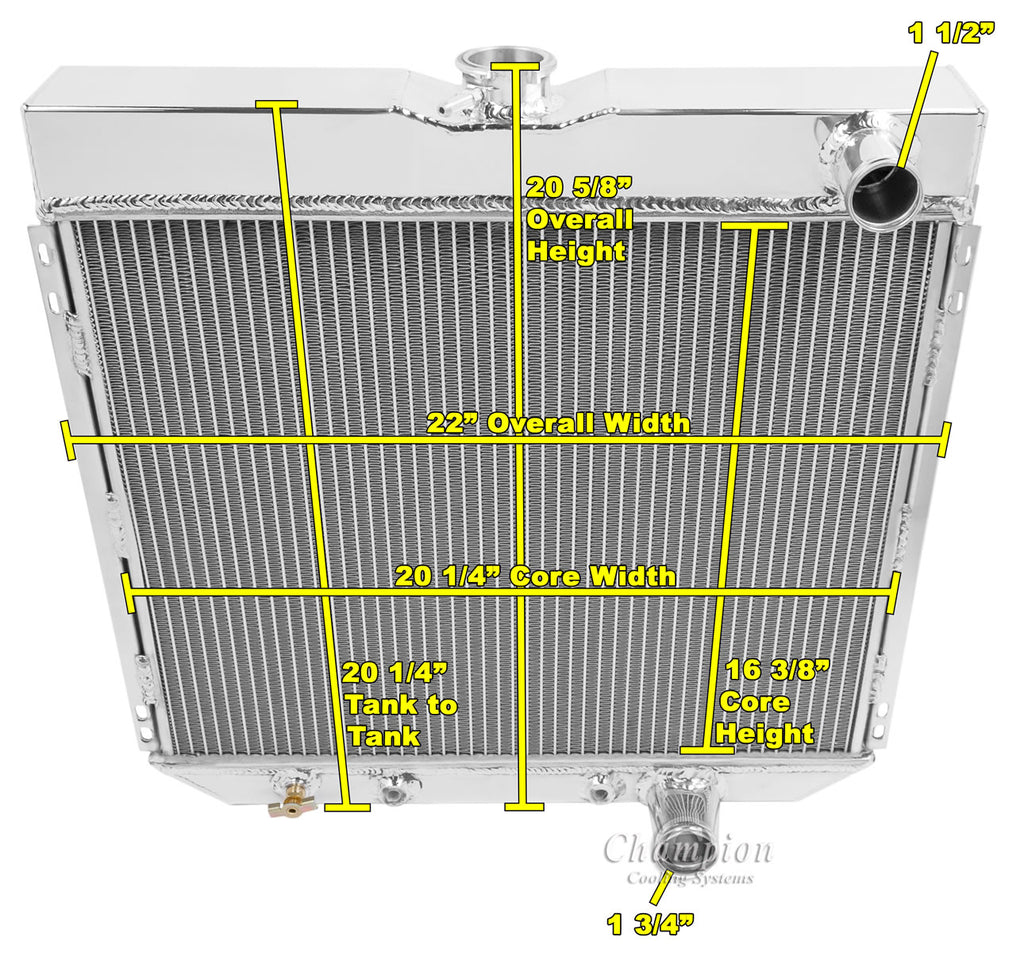

Radiator Dimensions:
Total: 20.75"tall (21.25" with cap) x 22.25" wide (with brackets)
Core: 16.25" tall x 19.75" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick
Total Thickness: 5.75" to back of fan

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8-27npt)
