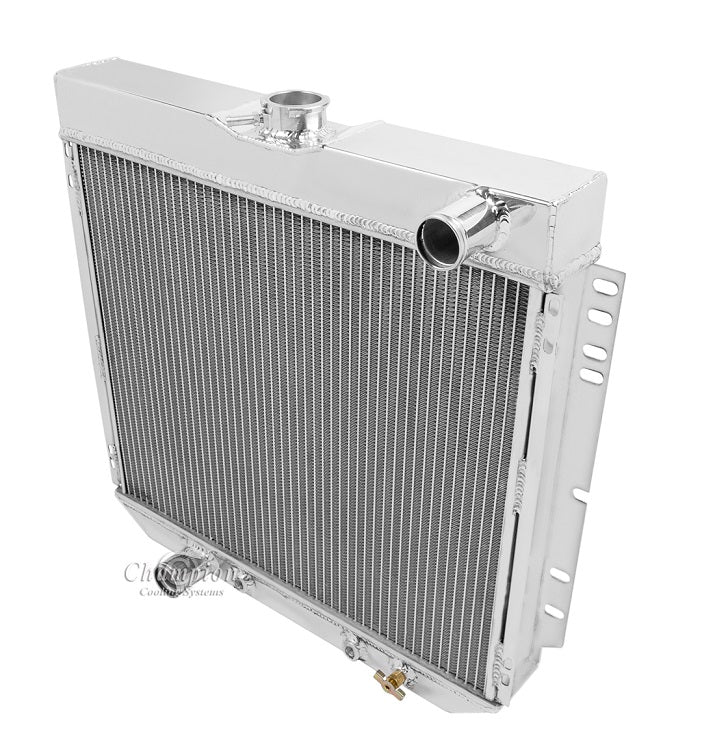

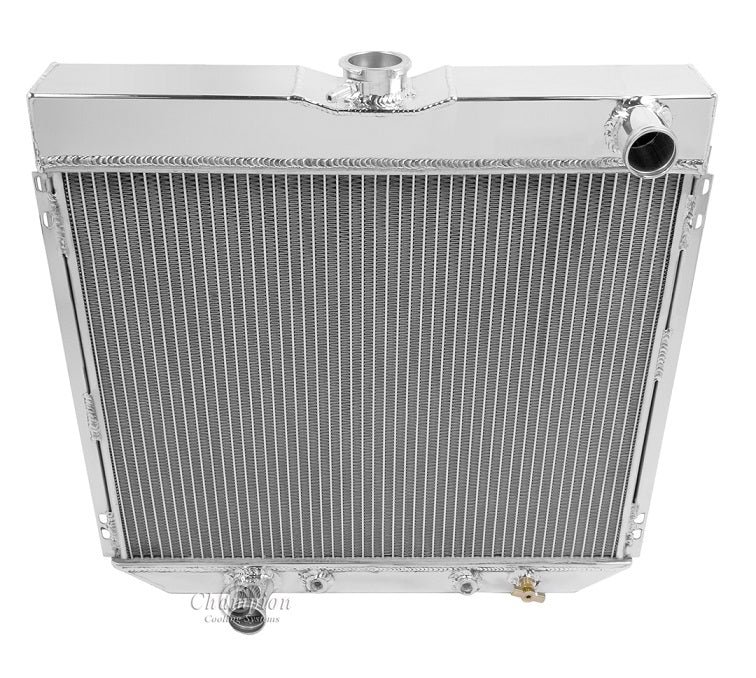

CC339B 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

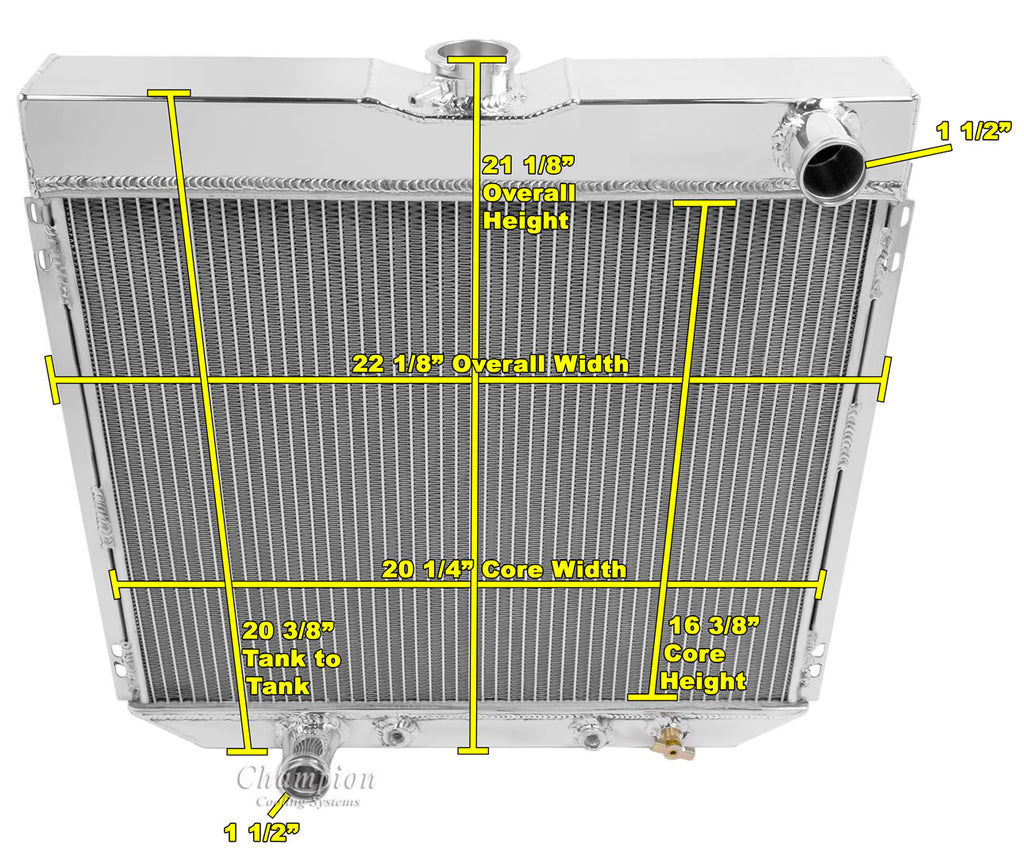

Radiator Dimensions:
Total: 20.5" tall (21.13" with cap) x 22.13" wide (with brackets)
Core: 16.38" tall x 20.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
