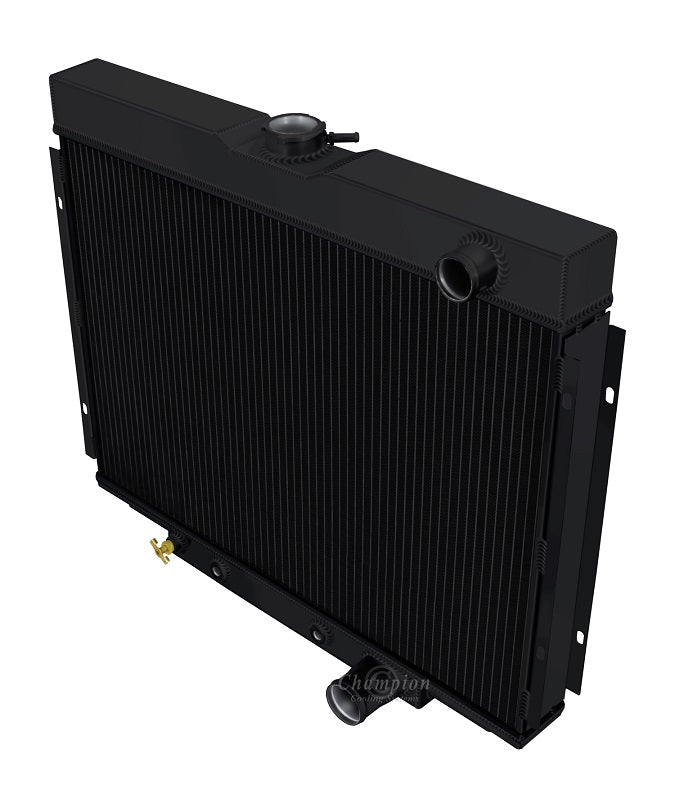

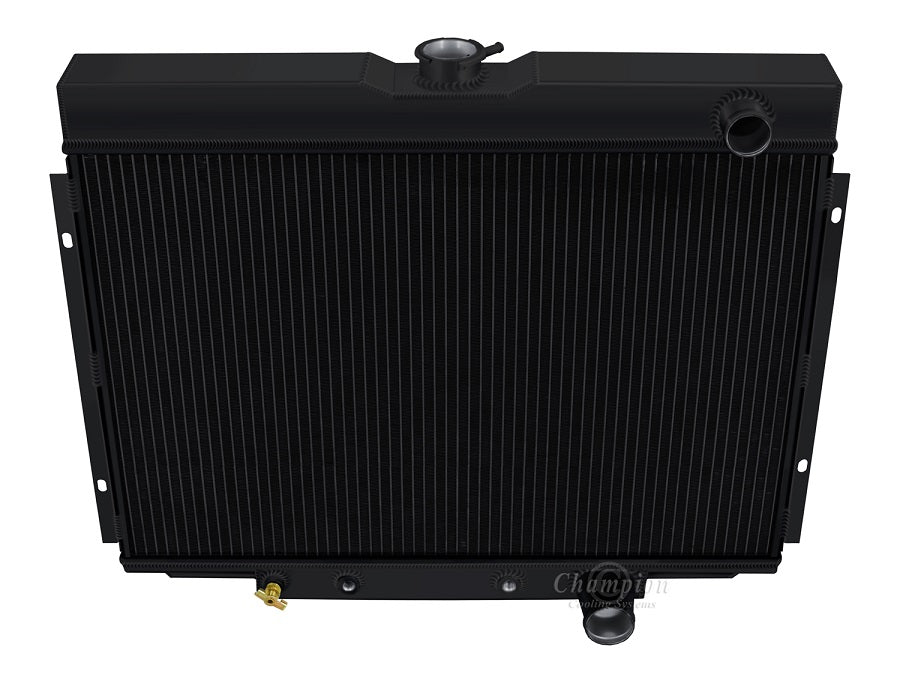

CC338-BLK 3 Row Black

Champion All Aluminum Radiator (Black)
3-Row Core | Cools up to 650hp

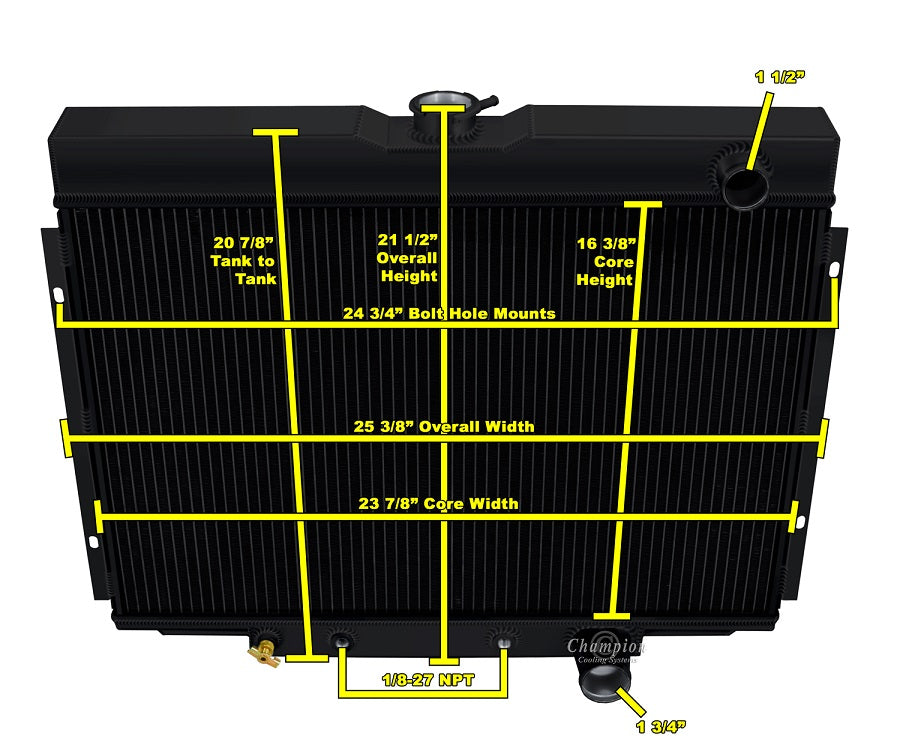

Radiator Dimensions:
Total: 21" (22" with cap) x 25.75" wide (with brackets)
Core: 16.5" tall x 24.25" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle or Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
