CC338-338FS16SP 3 Row Combo

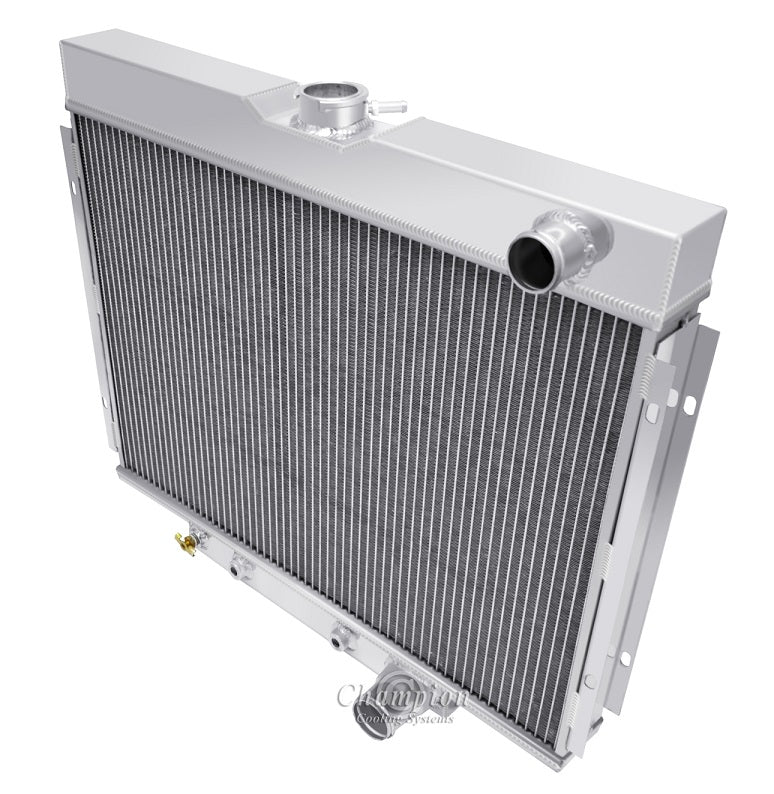

Champion All Aluminum Radiator

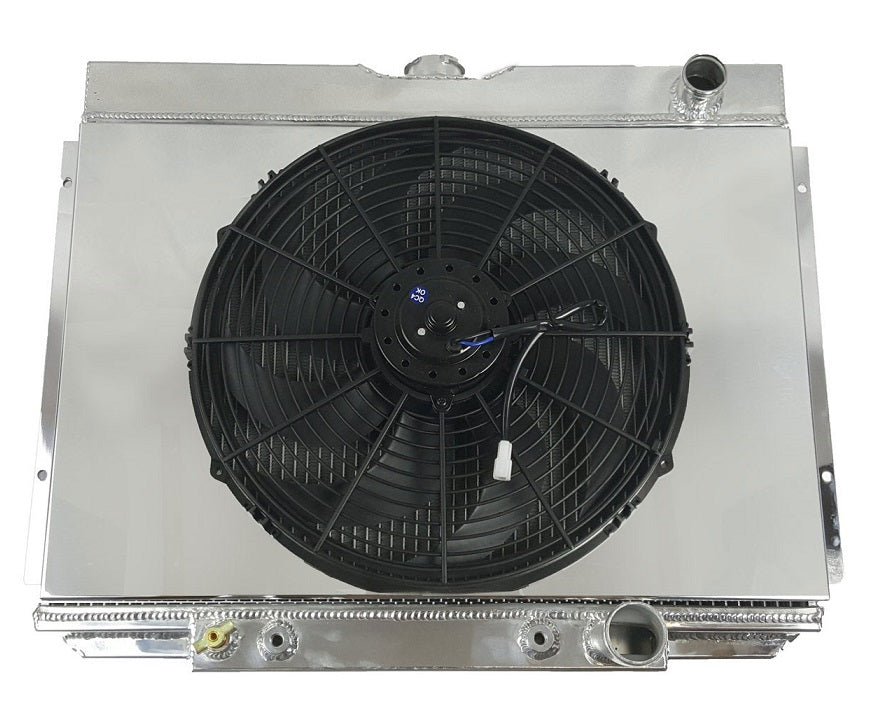

Shroud & 16" SPAL-1516 Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
3-Row Core | Cools 700hp

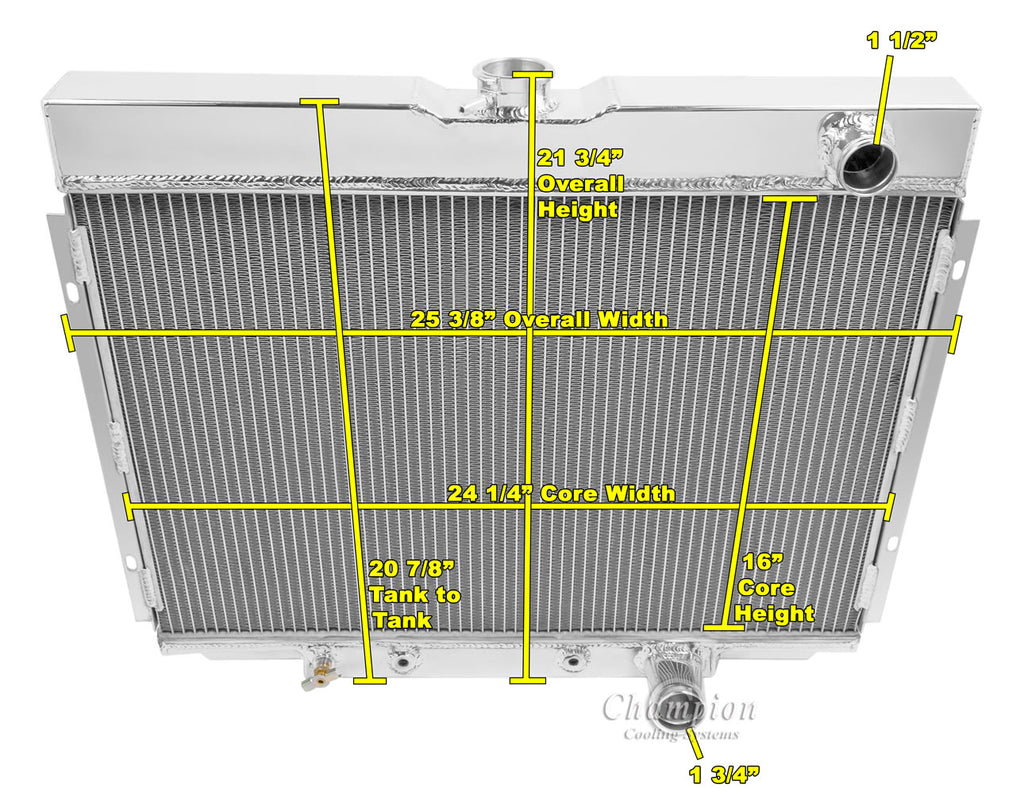

Radiator Dimensions:
Total: 21" (22" with cap) x 25.75" wide (with brackets)
Core: 16.5" tall x 24.25" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 5.5" to back of fan

Saddle or Bracket Mounted

Transmission Cooler Included (1/8-27 npt)
Radiator Cap Included
