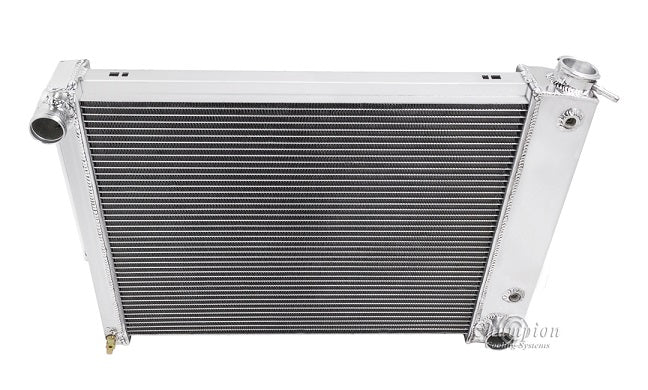

CC337B 3 Row 21" wide core

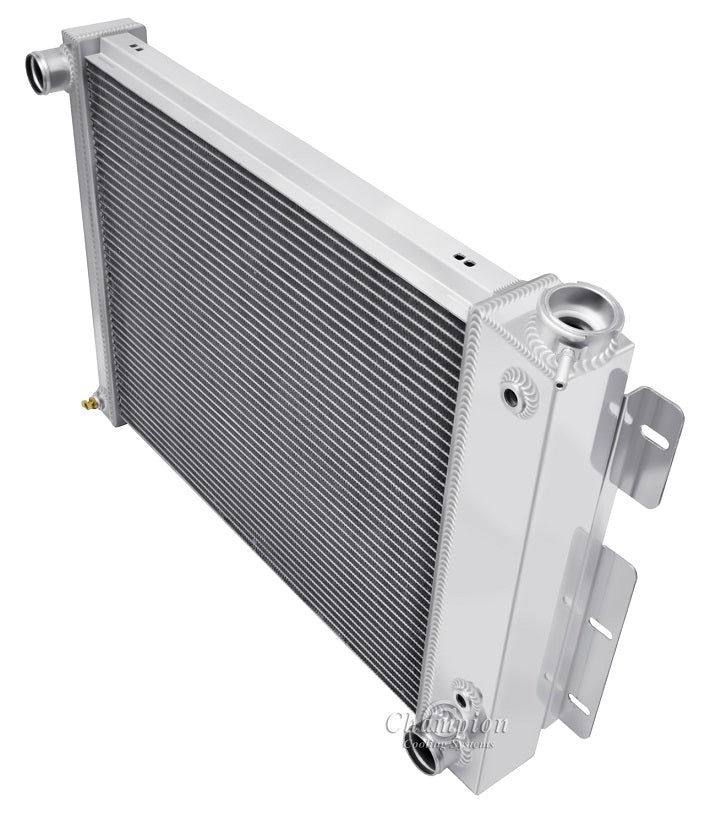

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

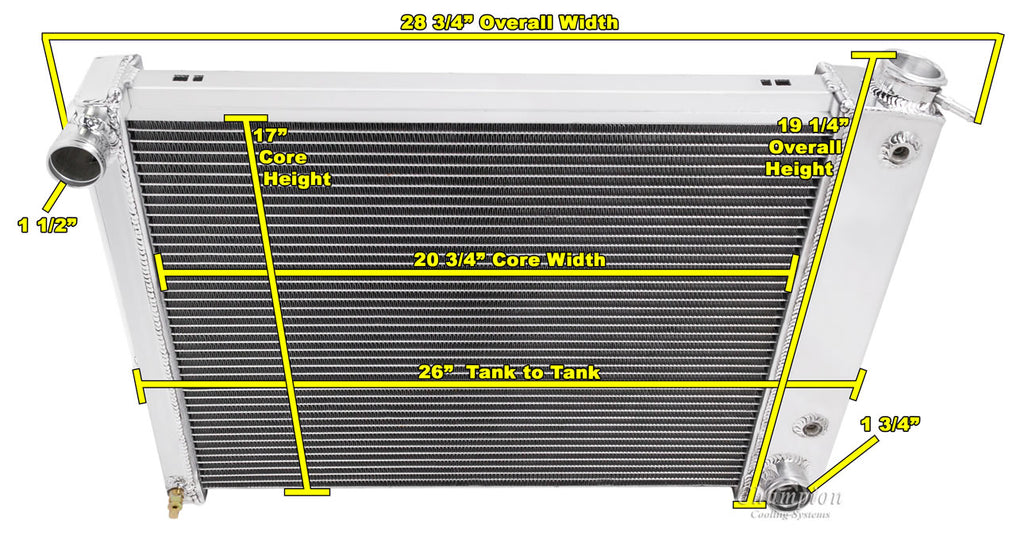

Radiator Dimensions:
Total: 18.5" (19.5" with cap) x 28.75" (with brackets)
Core: 16.75" tall x 20.75" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)
Aluminum Fan Shroud is also available (sold separately)

Recommended Fans:
One 16" Electric Cooling Fan (sold separately)
Click Here For Manual Transmissions
