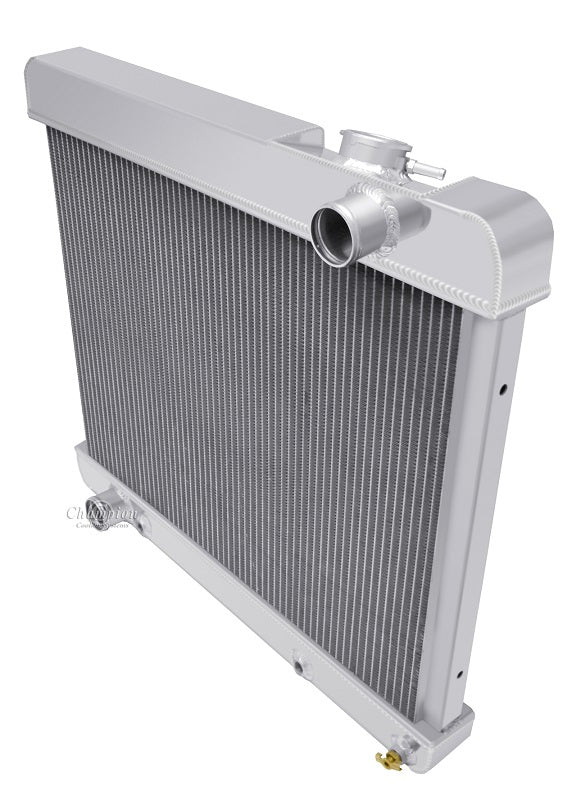

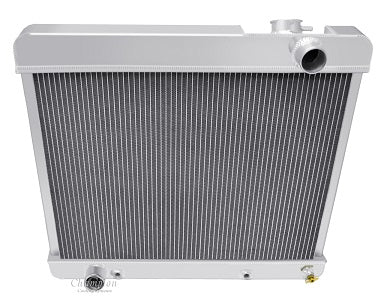

CC3284 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp
Verify Core Height

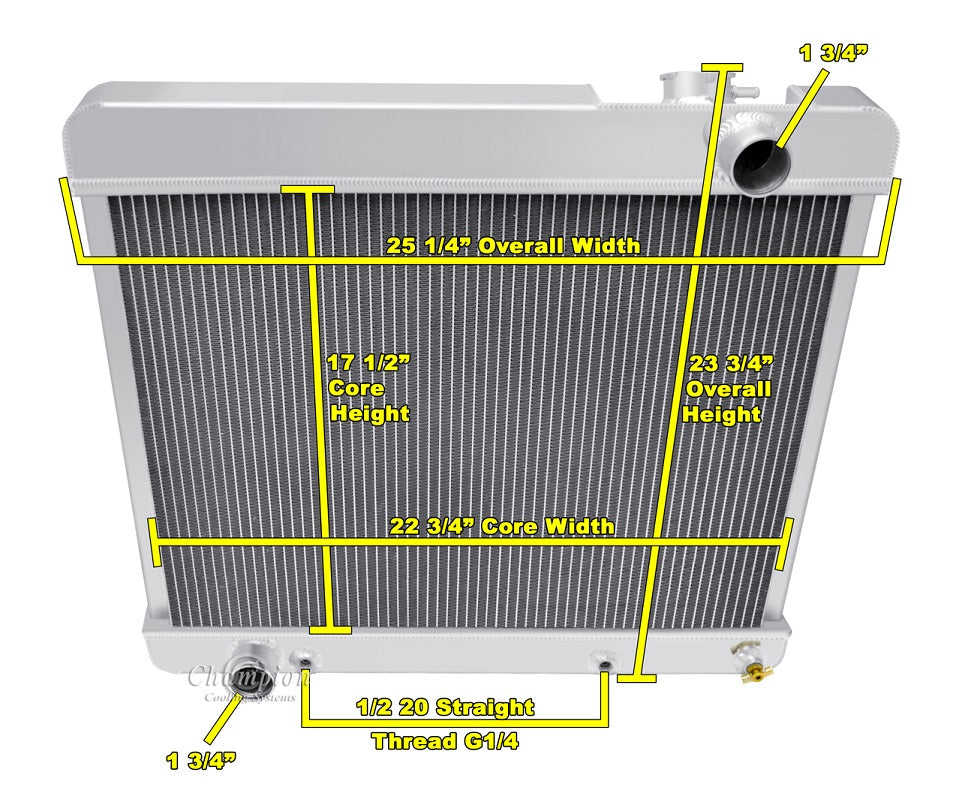

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick (top), 2.38" thick (bottom)
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare )

When using electric fans (sold separately):
Two 12" Electric fans or one 16" fan recommended for this core size

Note: Check your lower outlet placement
(1960-1965 Buick Rivieras please confirm the height, sometimes this one is too tall)
