CC3132B-3132FS16 3 Row

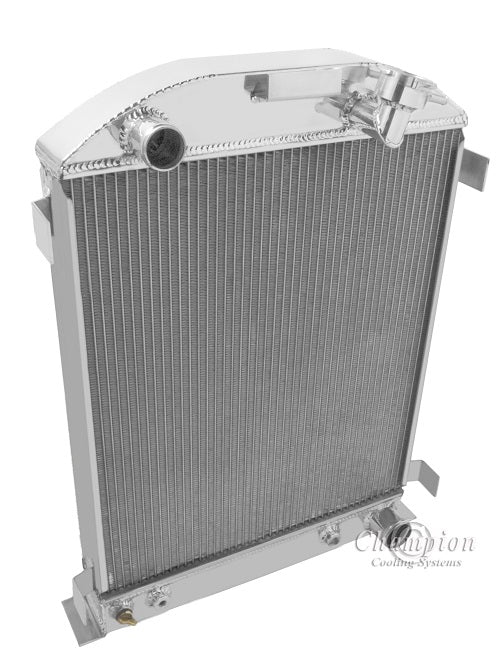

All Aluminum Champion Radiator

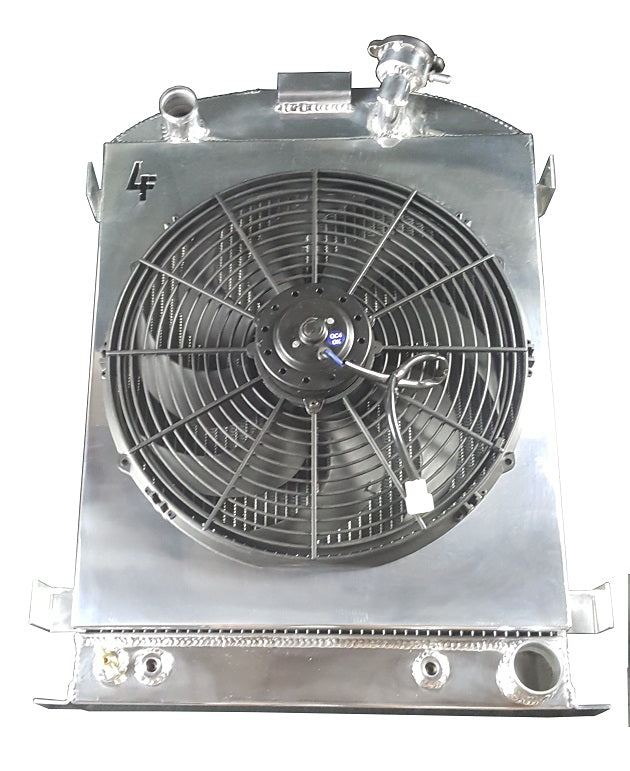

Plus Ledfoot Racing Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
3-Row Core | Cools up to 850hp

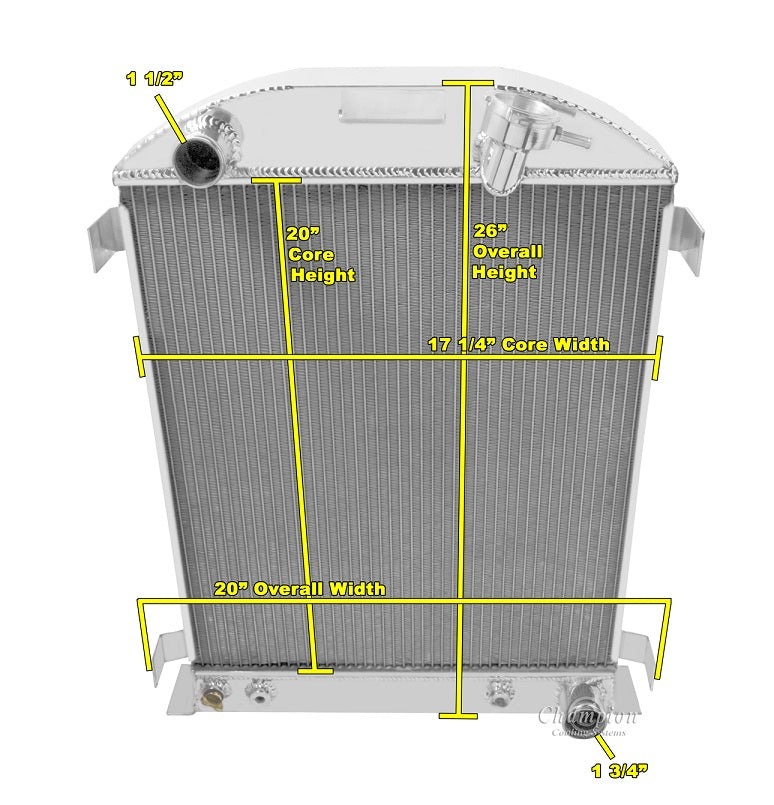

Radiator Dimensions:
Total: 26" tall x 19.75" wide (lower bracket)
Core: 20" tall x 17.25" wide x 2.5" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: 3" thick | 17.5" wide
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"-20 STRAIGHT THREAD)
