Description

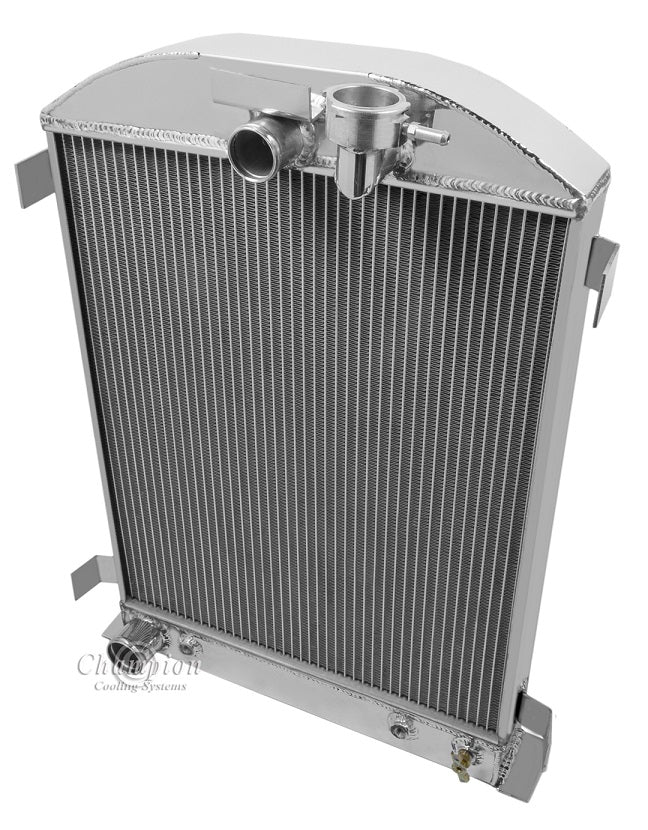

All Aluminum Champion Radiator PLUS

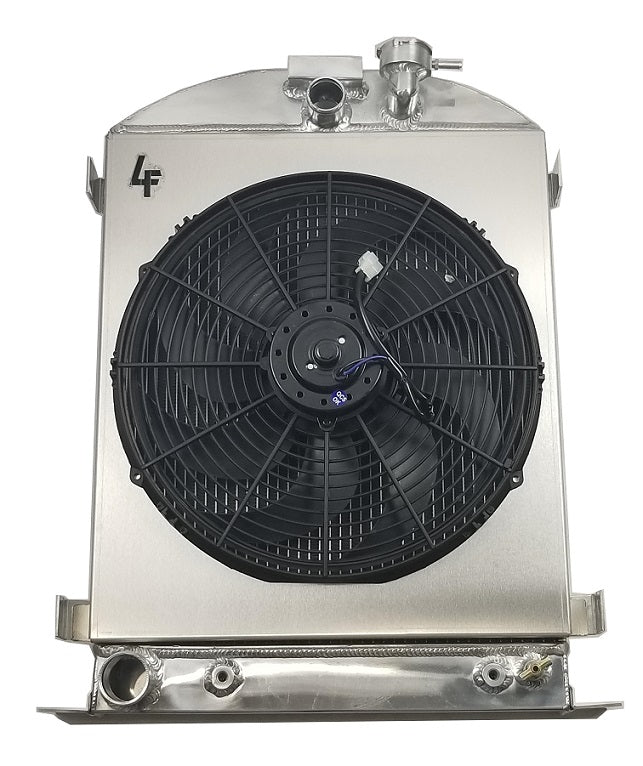

Ledfoot Racing Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
3-Row Core | Cools up to 850hp

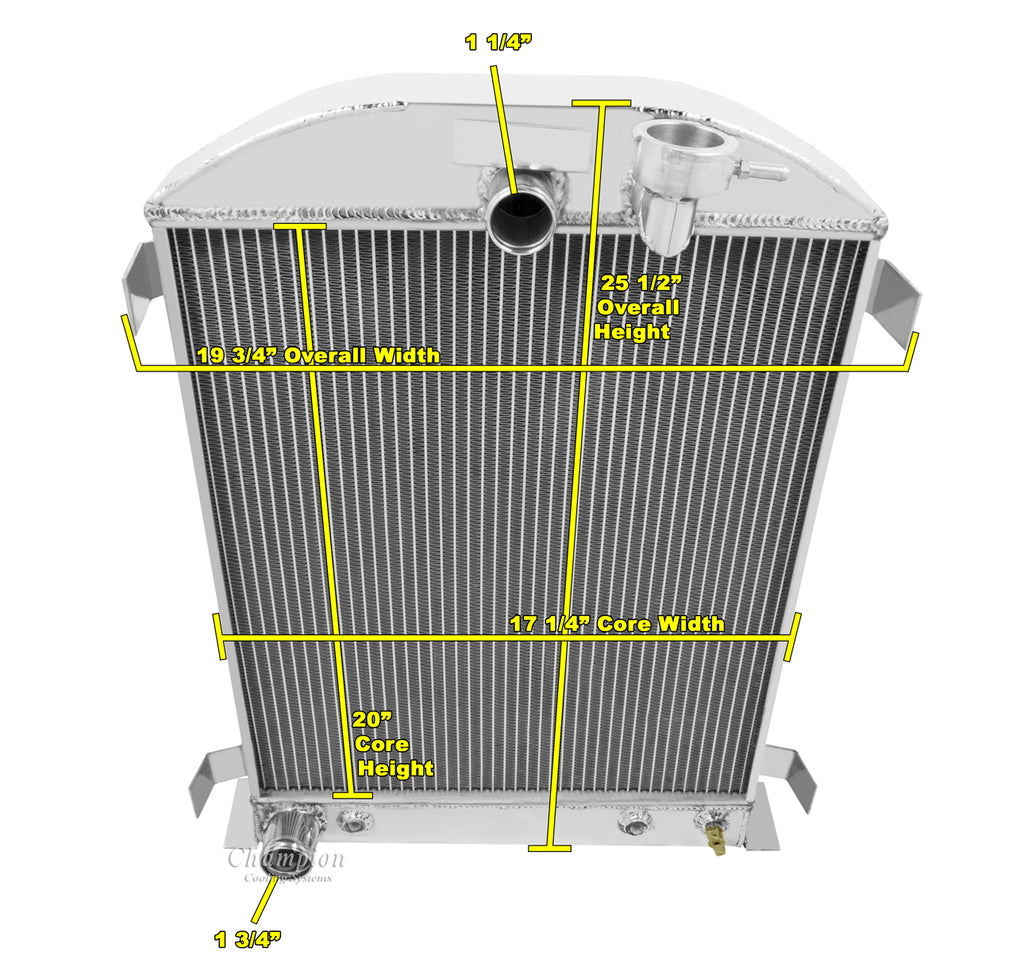

Radiator Dimensions:
Total: 19.75" wide (lower bracket) x 25.5" tall
Core: 17.25" wide x 20" tall x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.75" thick
Bracket Mounted
Radiator Cap Included
Transmission Cooler Included (1/8-27 NPT)
Ledfoot Racing Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
3-Row Core | Cools up to 850hp
Radiator Dimensions:
Total: 19.75" wide (lower bracket) x 25.5" tall
Core: 17.25" wide x 20" tall x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.75" thick
Bracket Mounted
Radiator Cap Included
Transmission Cooler Included (1/8-27 NPT)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
