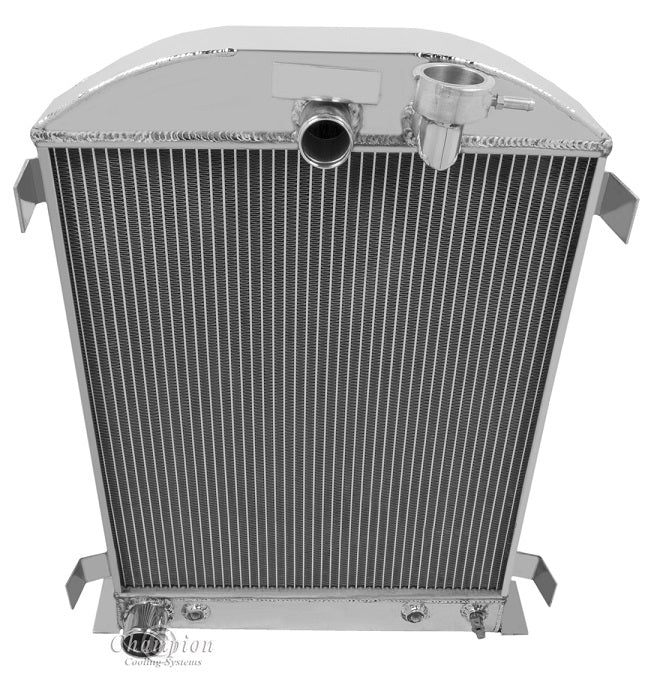

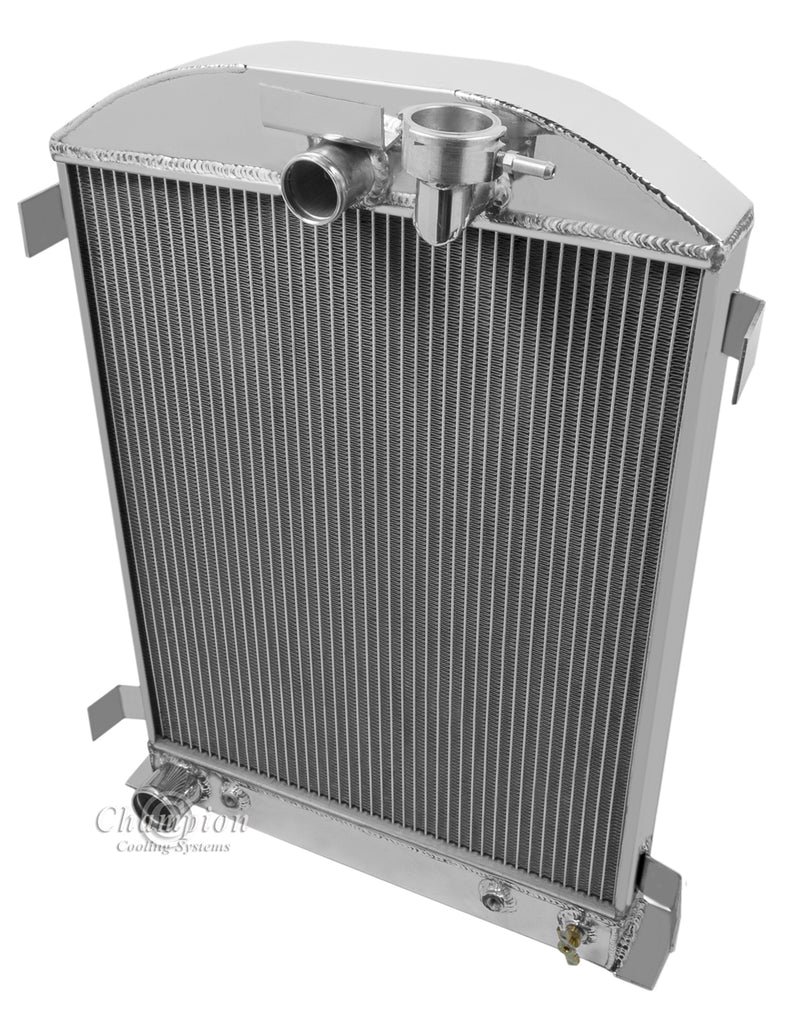

CC3032B 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 850hp

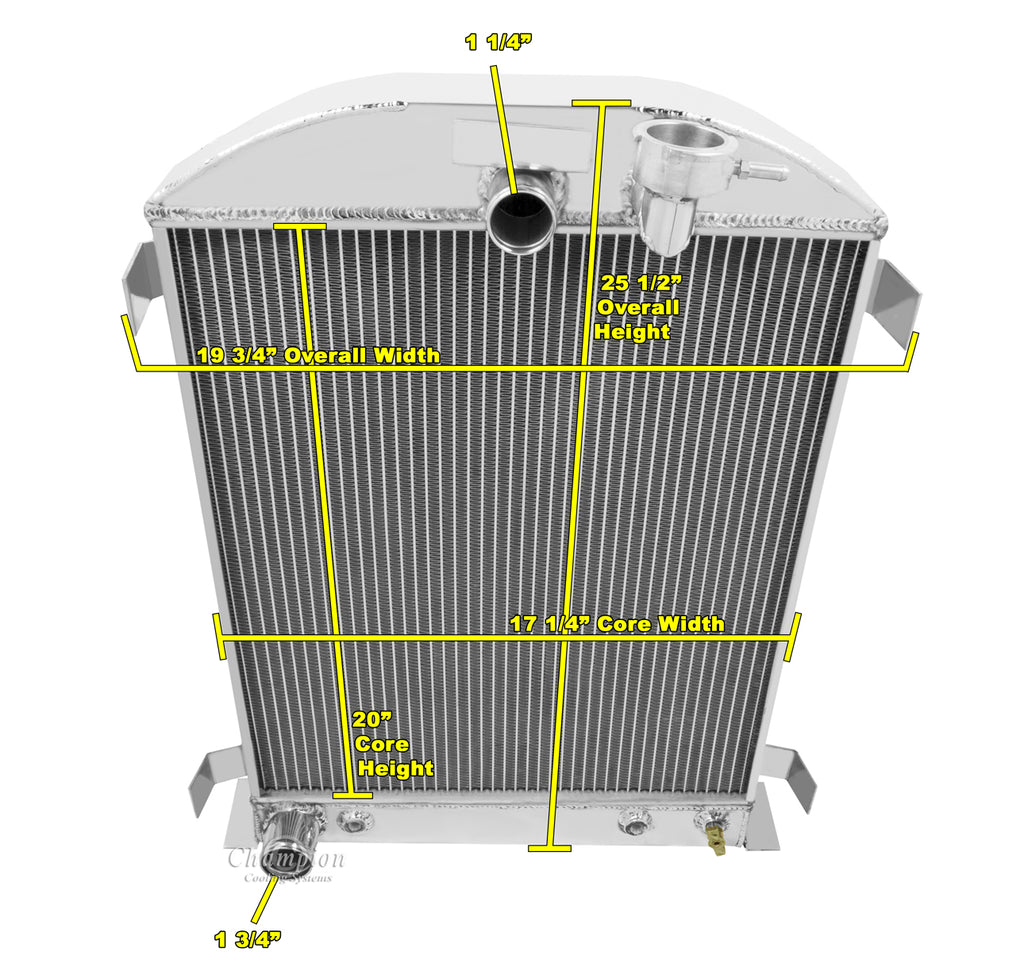

Radiator Dimensions:
Total: 19.75" wide (lower bracket) x 25.5" tall
Core: 17.25" wide x 20" tall x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8-27 NPT)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
