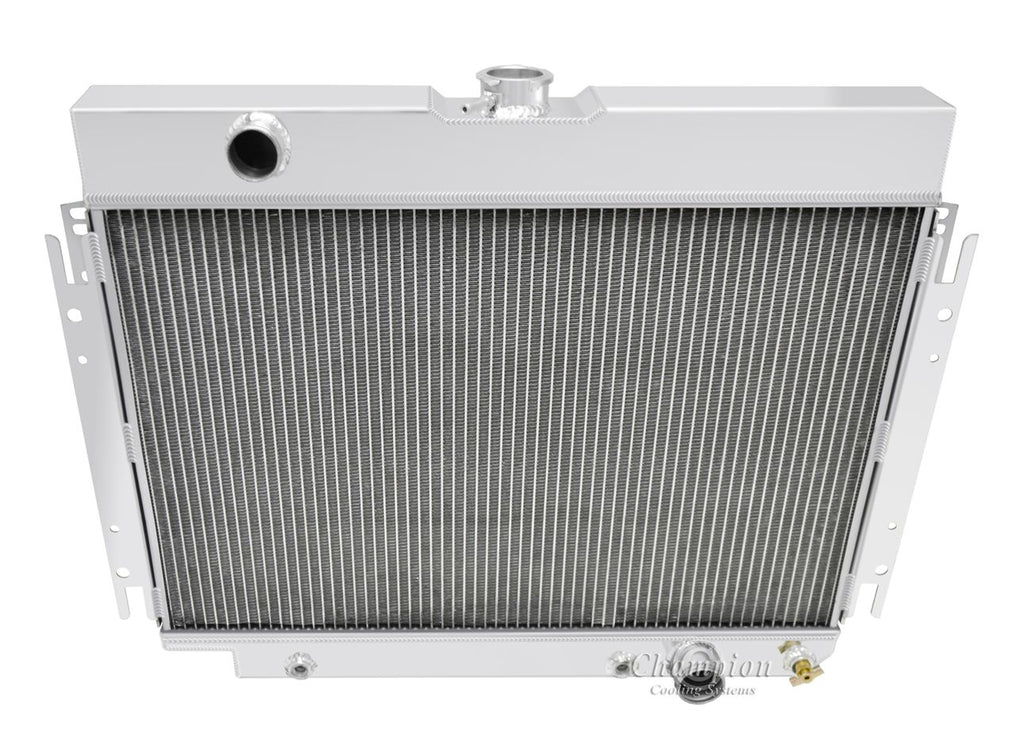

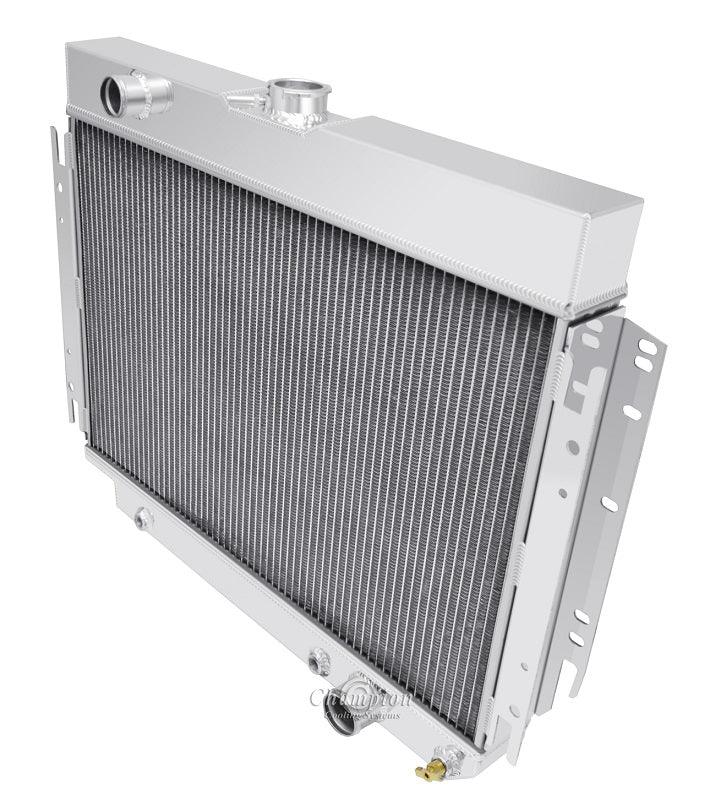

CC289B-PS 3 Row Power Steering Notch

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
The Notch is 1.5" tall and about 3" over
Make sure this is enough to miss your steering box

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 28" (with brackets) (27" Center)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud(s) is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
