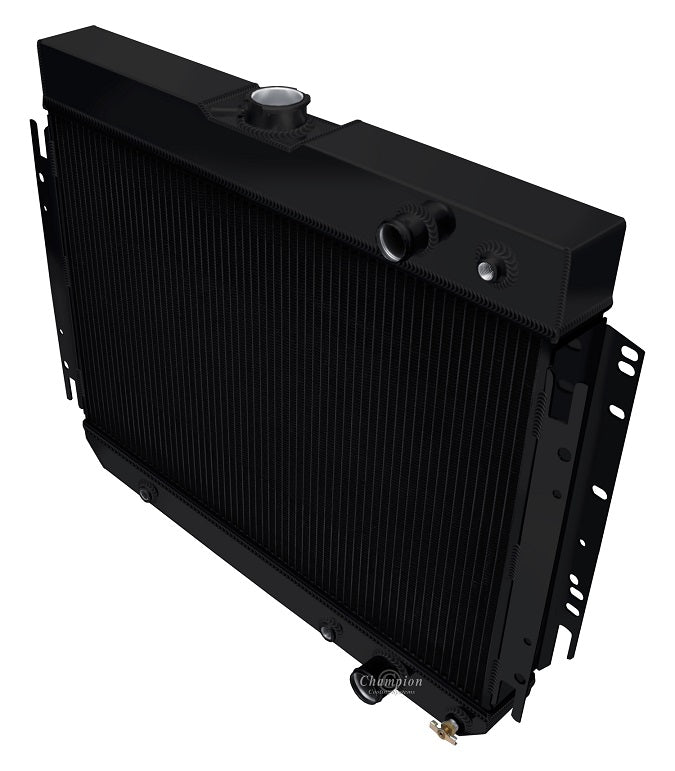

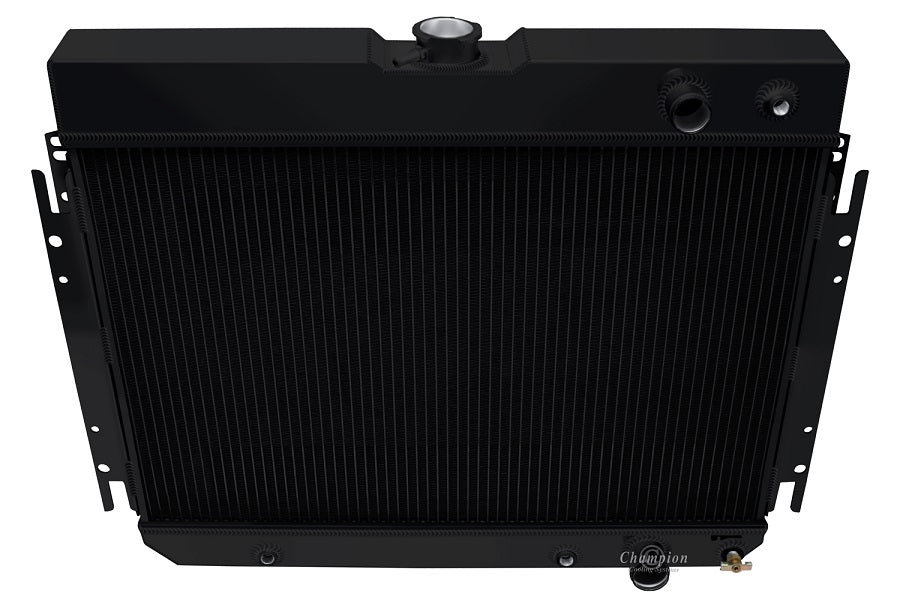

CC289B-LS-BLK Conversion 3 Row Black

Champion All Aluminum Radiator
For LS Conversions - Black
3-Row Core | Cools up to 700hp

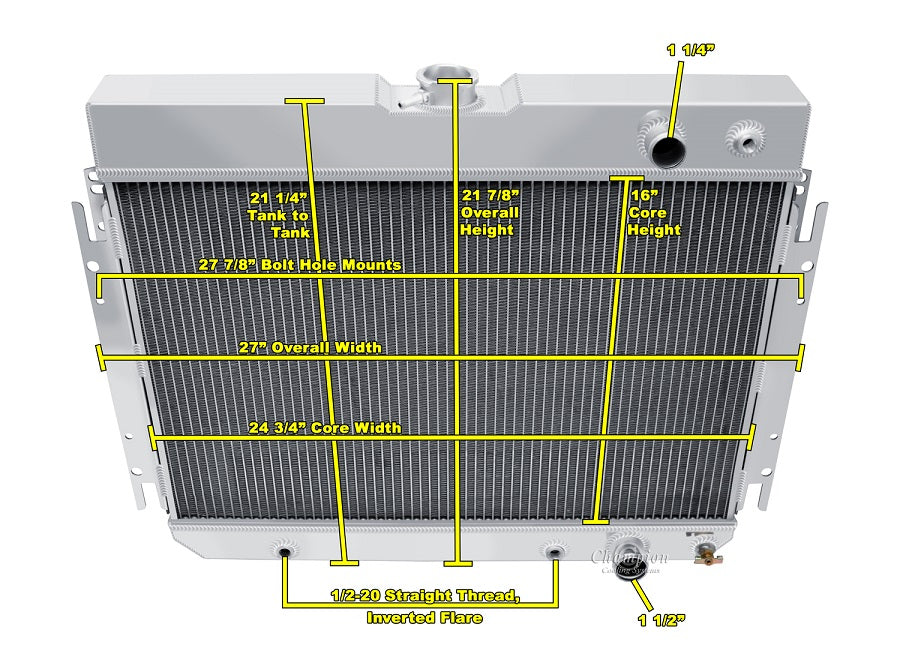

Radiator Dimensions:
Total: 21.75" tall x 28" wide (with brackets)
Core: 16.13" tall x 25" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Radiator Cap Included
Aluminum shroud available (sold separately)

When using electric fans:
One 16" or two 12" SPAL Electric fans recommended for this core size. (sold separately)
