CC289B-LS 3 Row 2-12" Combo

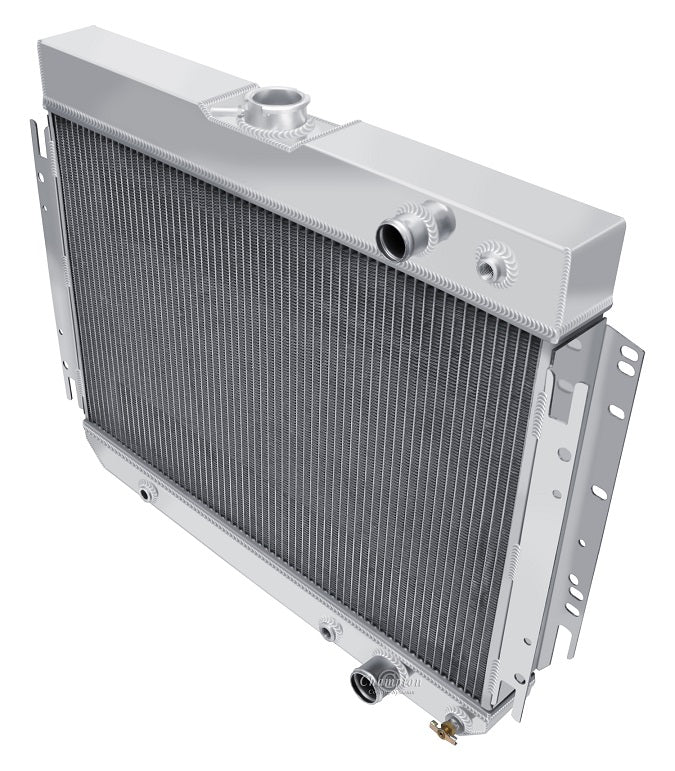

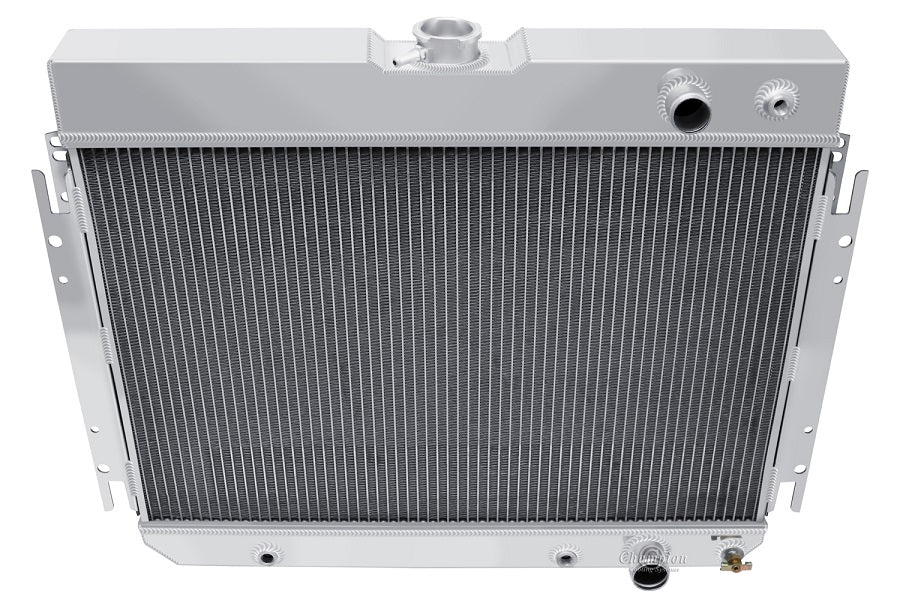

All Aluminum Champion Radiator Plus

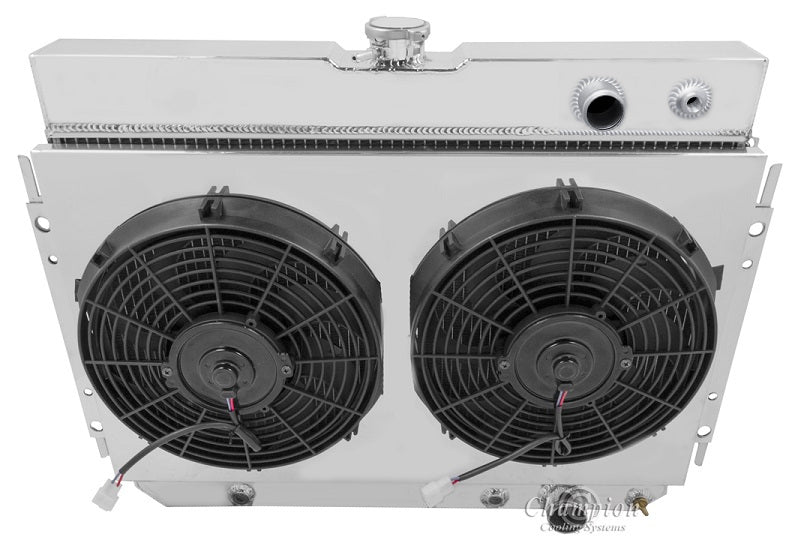

Ledfoot Racing Shroud and Two 12" SPAL fans
Verify clearance for electric fans
3-Row Core: | Cools up to 700hp

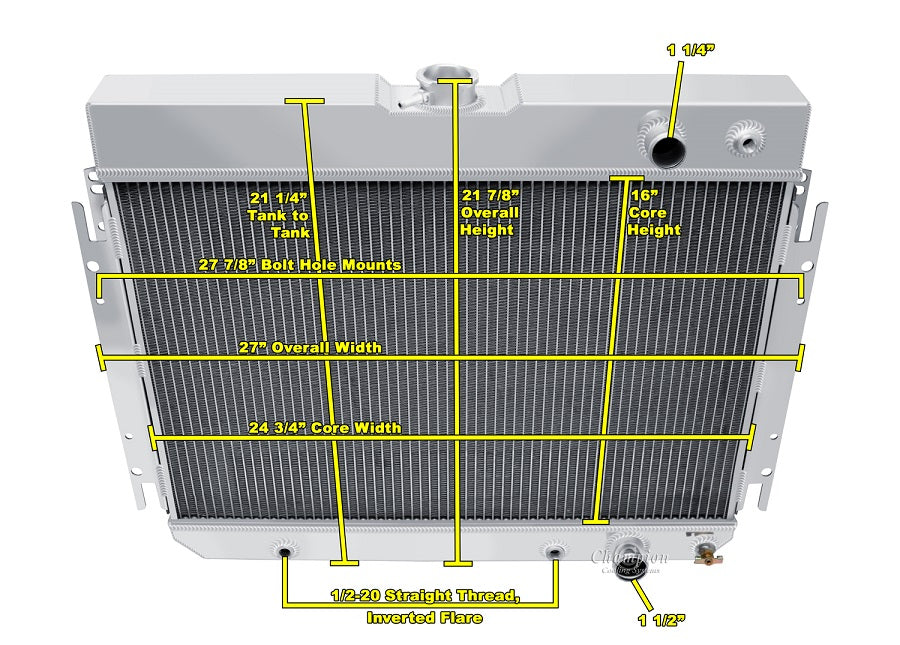

Radiator Dimensions:
Overall: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.25" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.75", (4.5" between motors)

Bracket Mounted

13 lb Radiator Cap included
