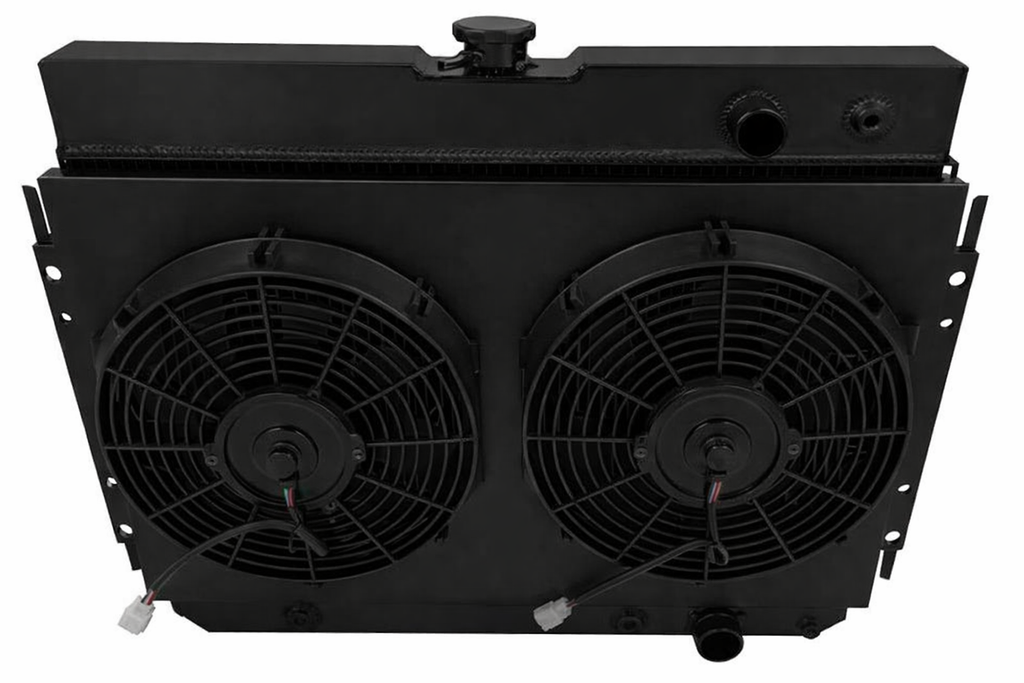

CC289B-LS-BLK-289FS12SP 3 Row Combo (Black)

All Aluminum Champion Radiator (Black) Plus
Shroud + (2) SPAL-1522 12" fans
Verify clearance for electric fans
3-Row Core: | Cools up to 700hp

Radiator Dimensions:
Overall: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.25" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.75", (4.5" between motors)

Bracket Mounted

13 lb Radiator Cap included
