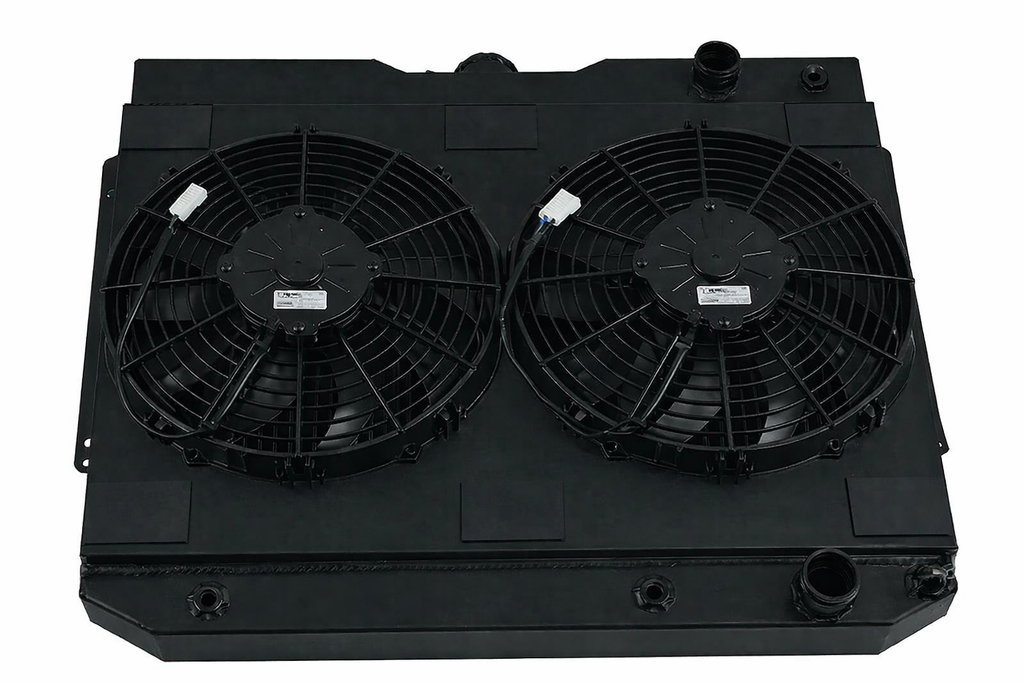

CC281B-LS-BLK-281FS12F LS Combo (Black)

Champion Cooling Aluminum Radiator (Black) Plus
Shroud + (2) SPAL-1522 12" Fans For LS Conversions
3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 27" wide (28" including brackets)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.63" to back of fans, 4.5" between fans

Bracket Mounted

Includes Steam Port w/ Barbed fitting and plug
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
13 lb. Radiator Cap included
